Part Number : 513-443-16A

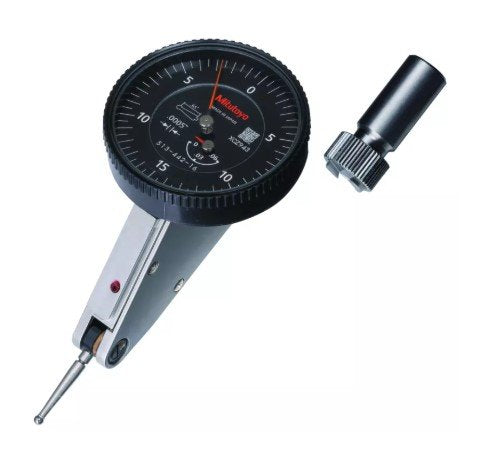

The Mitutoyo 513-443-16A Dial Test Indicator is designed for precise measurements with a graduation of 0.0001 inches and a range of 0.016 inches. Its 20° tilted dial face ensures easy and ergonomic reading. The indicator comes with a Plus Set, including 4 mm and 9.52 mm stems, and carbide contact points for versatile applications. It features a scratch-resistant, glare-free crystal face for durability and clear visibility. This tool is ideal for detecting minute surface variations with high accuracy.

Availability: Sold out

Free Kuwait shipping available

Specifications
Features
Downloads

Analog/Digital	Analog
Contact point	Thread M 1.7 x 0.35
Dial Reading	0-4-0
Graduation	0.0001 Inch
Hysteresis	0.0001 Inch
Inch-Metric	Inch
Measuring Force	0.01 - 0.3 N
Range	0.016 Inch
Repeatability	+/-0.00004 Inch
Series	513
Type	Dial Indicator
Weight	48 g

High Precision: Graduation of 0.0001 inches for accurate measurements.
Measuring Range: Measures small displacements within a range of 0.016 inches.
20° Tilted Dial Face: Provides easy reading and improved visibility during use.
Versatile Set: Comes with 4 mm and 9.52 mm stems and carbide contact points for various applications.
Durable Design: Features a scratch-resistant, glare-free flat crystal face for long-lasting clarity.
Reliable Performance: Offers high accuracy with a maximum measuring force of 0.3 N.
