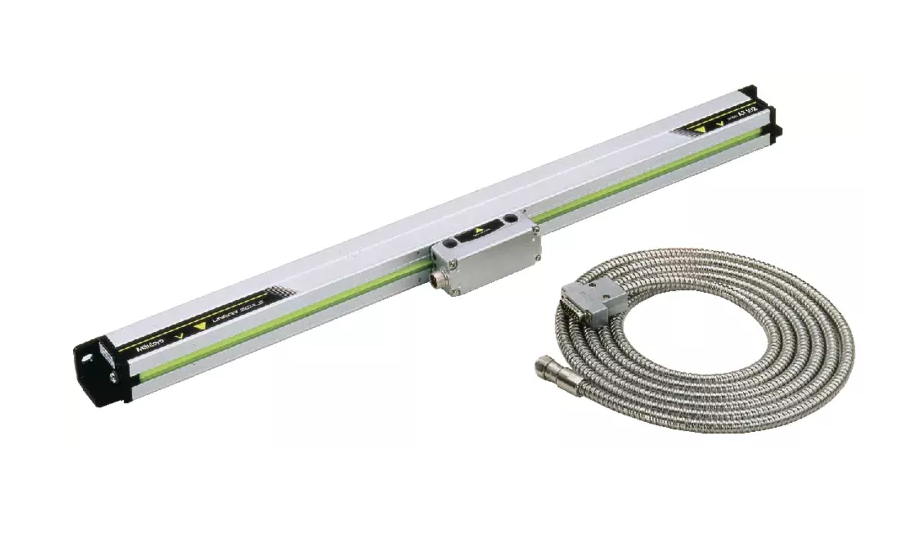

Mitutoyo 539-133-40 | Linear Scale AT103 | Cable Length 5 m | Effective Length 1600 mm | Mass 5.1 kg

Name: Mitutoyo 539-133-40 | Linear Scale AT103 | Cable Length 5 m | Effective Length 1600 mm | Mass 5.1 kg
Brand: Mitutoyo
SKU: 539-133-40
Availability: OutOfStock

Part Number : 539-133-40

The Mitutoyo 539-133-40 Linear Scale AT103 is designed for precise measurement applications with a 1600 mm effective measuring length. It comes with a 5-meter cable, ensuring flexible and secure installation options. Weighing 5.1 kg, the scale offers reliable performance while maintaining stability during operation. The scale's high-precision accuracy ensures consistency across various industrial tasks. Built to endure harsh environments, it provides durability and protection for demanding applications. Compatible with Mitutoyo DRO systems, it offers seamless integration into existing setups for efficient performance.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	(3+3L/1000) µm, L = Effective range (mm)
Cable length	: 5 m
MAX. SPEED	up to 120 m/min.
Model Number	AT103-1600F
Output	Waveform: Two 90° phase-shifted sinusoidal signals
Protection	IP53
Scale	Reference Points: 50 mm
Type	Linear Scale
Weight	5.1 kg

Effective Measuring Length: 1600 mm, ideal for medium-range applications.
High Accuracy: Provides (5 + 8L/1000) µm precision for reliable measurements.
Compact Design: Weighs just 5.1 kg, offering ease of use and stability.
Durable Construction: IP53-rated for protection against dust and light moisture.
Flexible Installation: 5-meter cable allows secure and adaptable setup.
Signal Compatibility: Dual 90° phase-shifted sinusoidal signals, compatible with Mitutoyo DRO systems.
