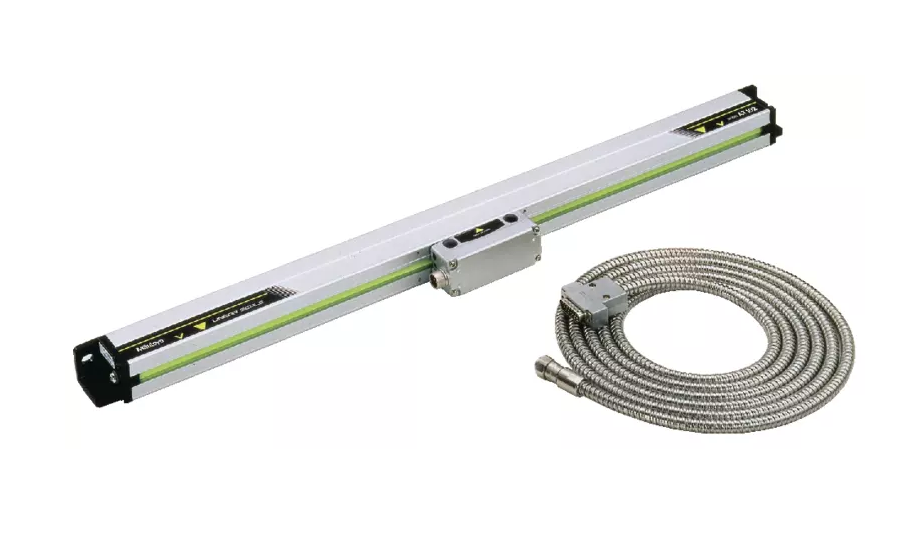

Mitutoyo 539-134-30 | Linear Scale AT103 | Cable Length 5 m | Effective Length 1700 mm | Mass 5.3 kg

Name: Mitutoyo 539-134-30 | Linear Scale AT103 | Cable Length 5 m | Effective Length 1700 mm | Mass 5.3 kg
Brand: Mitutoyo
SKU: 539-134-30
Availability: OutOfStock

Part Number : 539-134-30

The Mitutoyo 539-134-30 | Linear Scale AT103 is a high-precision measuring instrument designed for accurate linear measurements in various applications. It features a cable length of 5 meters, providing flexibility for different setup configurations. The effective measuring length is 1700 mm, suitable for medium to large-scale applications. With a mass of 5.3 kg, it offers a solid, stable build for consistent performance. This linear scale is ideal for use in industrial and laboratory environments requiring precise linear displacement measurements. It is engineered for compatibility with Mitutoyo equipment, ensuring seamless integration and reliable accuracy.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	100 to 3000 mm (5+5L/1000) µm,3250 to 6000 mm (5+8L/1000) µm L = Effective range (mm)
Cable length	: 5 m
MAX. SPEED	120 m/min.q
Model Number	AT103-1700
Output	Waveform: Two 90° phase-shifted sinusoidal signals
Protection	IP53
Scale	Reference Points: Every 50 mm
Type	Linear Scale
Weight	5.3 kg

High Precision: Accuracy of (5 + 5L/1000) µm for effective lengths up to 3000 mm.
Wide Measuring Range: Suitable for lengths from 100 mm to 6000 mm.
Robust Construction: IP53 rating for dust and water protection, ideal for industrial use.
Flexible Installation: Armored signal cable with versatile mounting options.
High-Speed Operation: Supports speeds up to 120 m/min for efficient measurements.
Signal Output: Provides two 90° phase-shifted sinusoidal signals for Mitutoyo DRO systems.
