Name: Mitutoyo 539-137-30 | Linear Scale AT103 | Cable Length 5 m | Effective Length 2200 mm | Mass 6.4 kg
Brand: Mitutoyo
SKU: 539-137-30
Availability: OutOfStock

Part Number : 539-137-30

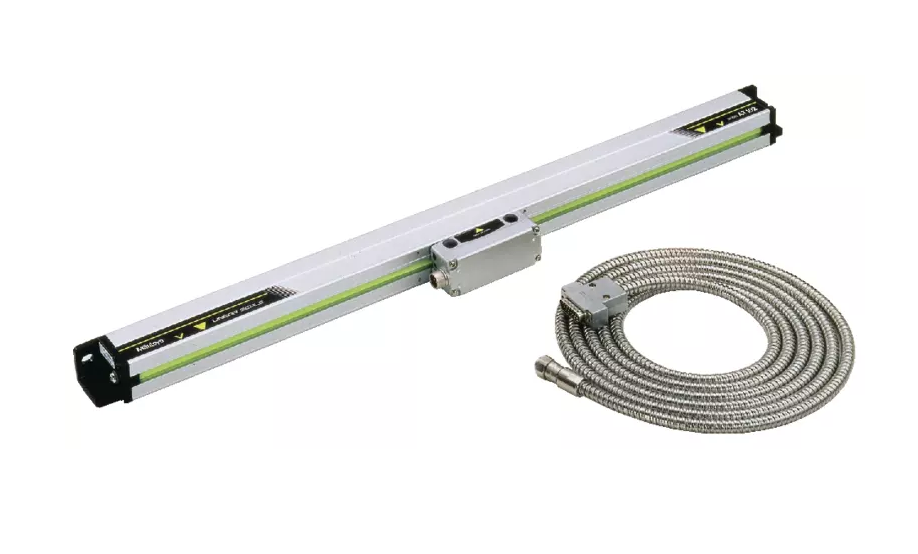

The Mitutoyo 539-137-30 | Linear Scale AT103 is a high-precision measuring instrument designed for accurate linear measurements in various applications. It features a cable length of 5 meters, providing flexibility for different setup configurations. The effective measuring length is 2200 mm, suitable for medium to large-scale applications. With a mass of 6.4 kg, it offers a solid, stable build for consistent performance. This linear scale is ideal for use in industrial and laboratory environments requiring precise linear displacement measurements. It is engineered for compatibility with Mitutoyo equipment, ensuring seamless integration and reliable accuracy.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	100 to 3000 mm (5+5L/1000) µm, 3250 to 6000 mm (5+8L/1000) µm L = Effective range (mm)
Cable length	: 5 m
MAX. SPEED	120 m/min.
Model Number	AT103-2200
Output	Waveform: Two 90° phase-shifted sinusoidal signals
Protection	IP53
Scale	Reference Points: Every 50 mm
Type	Linear Scale
Weight	6.4 kg

High Precision: Offers an accuracy of (5 + 5L/1000) µm for effective ranges between 100 mm and 3000 mm, and (5 + 8L/1000) µm for ranges from 3250 mm to 6000 mm, where L is the effective length in mm.
Wide Measuring Range: Designed for effective lengths from 100 mm to 6000 mm, accommodating various measurement needs.
Robust Construction: Built to withstand harsh environments with a dust and water protection rating of IP53, ensuring durability in industrial settings.
Flexible Installation: Features an armored signal cable that can be connected from either side of the detector head, offering versatility in setup.
High-Speed Operation: Supports a maximum drive speed of 120 m/min for lengths up to 3000 mm, facilitating efficient measurements.
Signal Output: Emits two 90° phase-shifted sinusoidal signals, compatible with Mitutoyo DRO counters like the KA and KLD series.
