Mitutoyo 539-142-30 | Linear Scale AT103 | Cable Length 7 m | Effective Length 3000 mm | Mass 8.3 kg

Name: Mitutoyo 539-142-30 | Linear Scale AT103 | Cable Length 7 m | Effective Length 3000 mm | Mass 8.3 kg
Brand: Mitutoyo
SKU: 539-142-30
Availability: OutOfStock

Part Number : 539-142-30

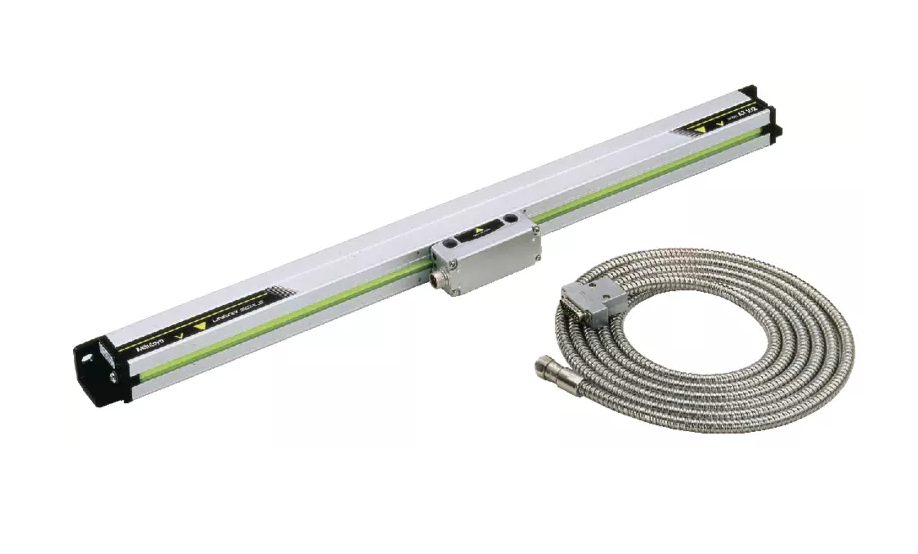

The Mitutoyo 539-142-30 Linear Scale AT103 offers a 3000 mm effective measuring length, ideal for large-scale precision applications. It features a 7-meter armored signal cable, ensuring durability and flexibility in various environments. With a mass of 8.3 kg, it provides a solid and stable build for consistent performance. The scale operates with high accuracy and speed, delivering reliable measurements for demanding applications. It is compatible with Mitutoyo's digital readout systems, ensuring seamless integration into existing setups.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	(5+5L°/1000) µm
Cable length	: 7 m
MAX. SPEED	120 m/min.
Model Number	AT103-3000
Output	Waveform: Two 90° phase-shifted sinusoidal signals
Protection	IP53
Type	Linear Scale
Weight	8.3 kg

High Accuracy: Provides precision of (5 + 5L/1000) µm for effective lengths up to 3000 mm.
Effective Measuring Length: 3000 mm, ideal for larger measurement tasks.
Robust Construction: IP53-rated protection and durable armored cable for harsh environments.
Flexible Installation: 7-meter cable that can be connected from either side of the detector head.
High-Speed Operation: Supports up to 120 m/min measuring speed for quick and accurate results.
Signal Compatibility: Outputs dual 90° phase-shifted sinusoidal signals for Mitutoyo DRO systems.
