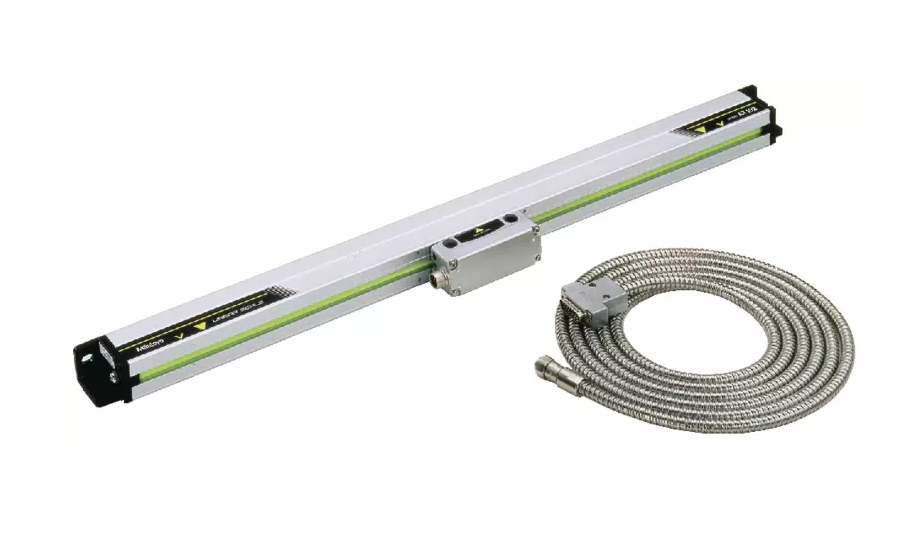

Mitutoyo 539-152-30 | Linear Scale AT103 | Cable Length 15 m | Effective Length 5500 mm | Mass 17 kg

Name: Mitutoyo 539-152-30 | Linear Scale AT103 | Cable Length 15 m | Effective Length 5500 mm | Mass 17 kg
Brand: Mitutoyo
SKU: 539-152-30
Availability: OutOfStock

Part Number : 539-152-30

The Mitutoyo 539-152-30 Linear Scale AT103 is a high-precision measuring device designed for large-scale industrial applications. With an effective measuring length of 5500 mm, it ensures accurate measurements across extended distances. The 15-meter armored cable offers durability and flexibility for a variety of installation configurations. Weighing 17 kg, it provides stable operation and minimizes vibration during measurements. The IP53-rated construction ensures protection from dust and light moisture, making it suitable for harsh environments. Fully compatible with Mitutoyo DRO systems, it ensures reliable and consistent performance.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	100 to 3000 mm (5+5L/1000) µm, 3250 to 6000 mm (5+8L/1000) µm L = Effective range (mm)
Cable length	: 15 m
MAX. SPEED	50 m/min.
Model Number	AT103-5500
Output	Waveform: Two 90° phased-shifted sinusoidal signals
Protection	IP53
Scale	Reference Points: 50 mm
Type	Linear Scale
Weight	17 kg

Effective Measuring Length: 5500 mm, ideal for large-scale measurement applications.
High Accuracy: Provides (5 + 8L/1000) µm precision for long-range measurements.
Durable Construction: IP53-rated for protection against dust and moisture.
Long Armored Cable: 15-meter cable ensures flexibility and robust installation.
Stable Build: Weighs 17 kg, ensuring vibration resistance and stable operation.
Signal Compatibility: Dual 90° phase-shifted sinusoidal signals, compatible with Mitutoyo DRO systems.
