Mitutoyo 539-211-40 | Linear Scale AT113 | Cable Length 3.5 m | Effective Length 600 mm | Mass 1.3 kg

Name: Mitutoyo 539-211-40 | Linear Scale AT113 | Cable Length 3.5 m | Effective Length 600 mm | Mass 1.3 kg
Brand: Mitutoyo
SKU: 539-211-40
Availability: OutOfStock

Part Number : 539-211-40

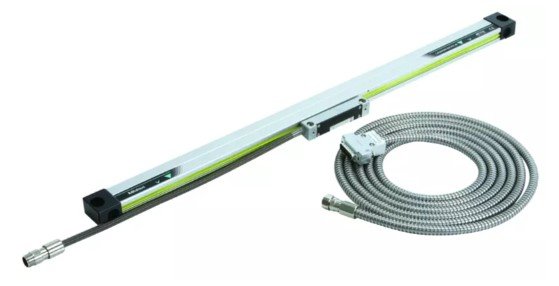

The Mitutoyo 539-211-40 Linear Scale AT113 is a high-precision measuring instrument designed for accurate linear measurements in industrial applications. With an effective length of 600 mm, it provides reliable measurement over a medium-range, making it suitable for various machine tool tasks. The scale features a 3.5-meter cable, offering flexibility for different machine setups and installations. Weighing 1.3 kg, it is lightweight and easy to handle, ensuring convenient integration into equipment. Built for durability, it delivers long-lasting performance even in demanding environments.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	High-accuracy type (3+3L/1000) µm L = Effective range (mm)
Cable length	: 3.5 m
Length	Effective : 600 mm
Mass (main unit)	1.3 kg
MAX. SPEED	Drive : 120 m Or min
Model Number	AT113-600F
Output	Waveform : Two 90° phase-shifted sinusoidal signals
Protection	IP53
Scale	Scale reference points: 50 mm
Type	Linear Scale

High-Precision Measurement: Offers high-accuracy measurements with a precision of (3 + 3L/1000) µm, where L is the effective length in mm.
Effective Measuring Length of 600 mm: Provides reliable measurements over a medium-range, making it suitable for various industrial applications.
Flexible 3.5 m Cable: Equipped with a 3.5-meter cable, offering flexibility in installation and adaptability to different machine configurations.
Slim Spar Design: Features a slim spar type with unit sectional dimensions of 22×35 mm, allowing for easy integration into compact spaces.
Durable Construction: Built with an IP53 protection rating, safeguarding against dust and water, ensuring reliable performance in industrial environments.
