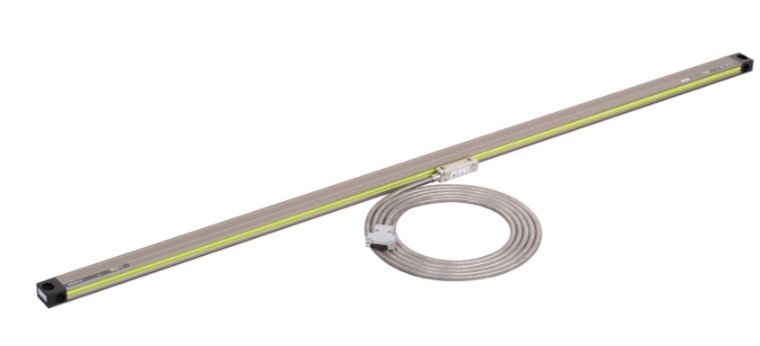

Mitutoyo 539-820N | Linear Scale AT715-1300 | Electromagnetic Induction System | Cable Length 5 m | Effective Length 1300 mm | Mass 1.95 kg
The Mitutoyo 539-820N Linear Scale (AT715-1300) is a precision measurement device that operates using an electromagnetic induction system, offering high reliability even in harsh environments. With an effective measuring length of 1300 mm, it is well-suited for long-range applications on large machinery. The 5-meter cable allows for flexible installation and integration into various setups. Weighing 1.95 kg, the scale is built for durability without compromising ease of handling. It is fully compatible with Mitutoyo KA series digital readout systems, ensuring seamless performance and accurate data display.

Free UAE shipping available
- Specifications
- Features
- Downloads
Accuracy | 100 to 500 mm +/-5 µm; 600 to 1800 mm +/-7 µm; 2000 to 3000 mm +/-10 µm |
Cable length | : 5 m |
Length | Effective : 1300 mm |
Mass (main unit) | 1.95 kg |
MAX. SPEED | Drive : 50 m Or min |
Measuring method | Electromagnetic induction system |
Model Number | AT715-1300 |
Resolution | 0.001 Or 0.005 (switchable via Counter) |
Type | Linear Scale |
- Electromagnetic Induction System: Provides stable, non-contact measurement unaffected by oil, dust, or coolant.
- 1300 mm Effective Measuring Length: Ideal for large machine tools and extended-range positioning tasks.
- 5 m Cable Length: Offers flexibility for installation across a variety of industrial setups.
- Robust Construction: Weighs 1.95 kg and designed to withstand demanding workshop environments.
- Compatible with KA Series DROs: Ensures accurate data processing and smooth integration with Mitutoyo display units.
