Mitutoyo 543-552E ABSOLUTE Digimatic Back-lit LCD Indicator ID-F 25mm / 1"

Name: Mitutoyo 543-552E ABSOLUTE Digimatic Back-lit LCD Indicator ID-F 25mm / 1"
Brand: Mitutoyo
SKU: 543-552E
Availability: OutOfStock

Part Number : 543-552E

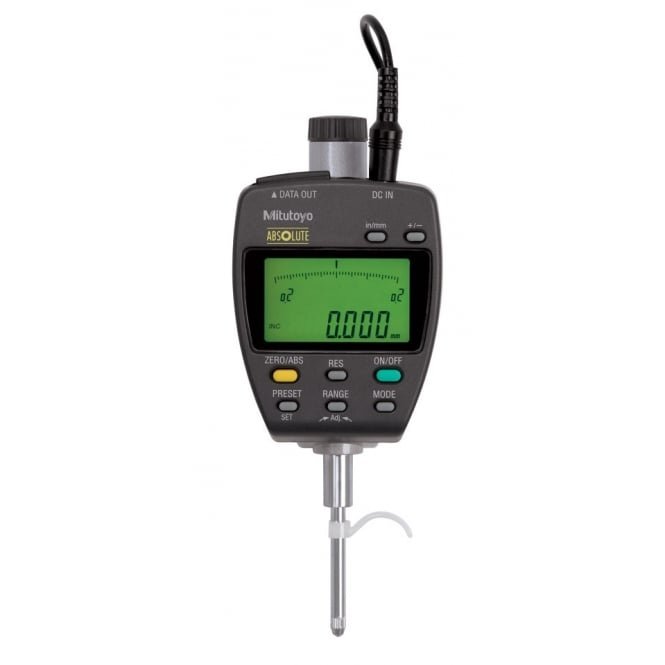

A Mitutoyo back-lit screen type digital indicator, mains-powered. ABSOLUTE System scale for error free, high-speed measurement. Functionality includes an analogue bar scale, switchable resolution, colour-coded tolerance judgement, Max/Min data hold and Runout measurement. SPC data output.

Availability: in stock

Free Kuwait shipping available

Specifications
Features
Downloads

Accuracy	+/-0.003mm / .00012 inch
Analog/Digital	Digital
Brand	Mitutoyo
Data Output	Yes
Measuring Force	1.8N or less
Measuring Units	Millimetre / Inch
Range	25.4mm / 1 inch
Resolution	0.001mm / .0002 inch
SKU	543-552E
Stem Dia	9.52mm (3/8 inch)
Type	Plunger

GO/NO-GO judgement function: If a judgement result shows an out of tolerance condition, the display backlighting changes from green to red.
• An analogue bar indicator has been integrated to make upper/lower limit and turnover point reading more comfortable.

With the ABSOLUTE Linear Encoder technology, once the measurement reference point has been set it will not be lost when the power is turned off. Also, reliability has been increased due to the elimination of over-speed errors.
• Easy-to-read large back-lit LCD readout with a character height of 8.5 mm.
• External power supply type: battery change is not necessary. Power is supplied via the AC adapter supplied as a standard accessory.
• The resolution can be switched between 0.001 / 0.01 mm (or .001" / .0005" / .0001" / .00005").
• Equipped with a data output port that enables incorporation into measurement networking and statistical process control systems.
