Mitutoyo 543-564E Digimatic High Functionality Indicator ID-H 60.9mm / 2.4"

Name: Mitutoyo 543-564E Digimatic High Functionality Indicator ID-H 60.9mm / 2.4"
Brand: Mitutoyo
SKU: 543-564E
Availability: OutOfStock

Part Number : 543-564E

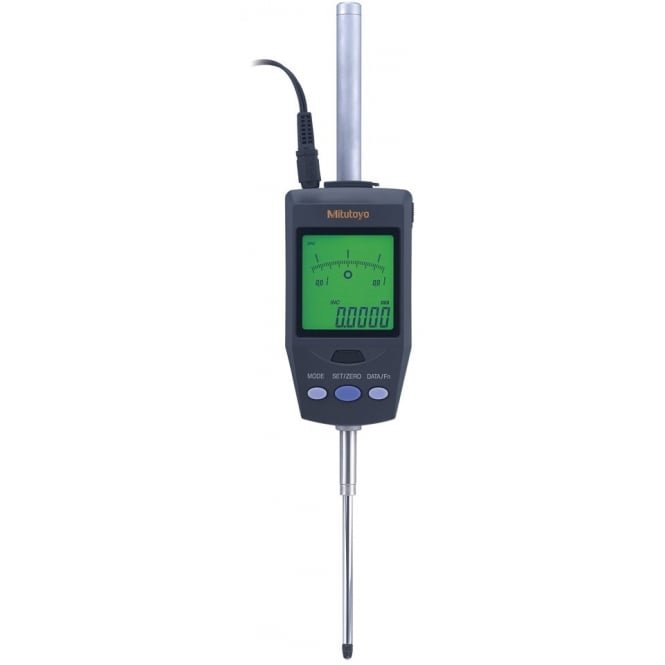

A Mitutoyo back-lit screen type digital indicator, mains-powered. Extensive functionality includes an analogue bar scale, switchable extra-high resolution, colour-coded tolerance judgement, Max/Min data hold, Runout measurement and function lock. Digimatic data output.

Availability: in stock

Free Kuwait shipping available

Specifications
Features
Downloads

Accuracy	+/-0.0025mm
Analog/Digital	Digital
Brand	Mitutoyo
Data Output	Yes
Measuring Force	2.0N or less
Measuring Units	Millimetre / Inch
Range	60.9mm / 2.4 inch
Resolution	0.001 / 0.005mm / .00005 inch / .0001 inch / .0002 inch
SKU	543-564E
Stem Dia	9.52mm (3/8 inch)
Type	Plunger

• This new-generation digital indicator offers the excellent accuracy and functionality expected from the top class of indicator.
• Take advantage of its high accuracy backed up by 0.5 μm / .00002" resolution, remote control functionality via a handheld controller (or an RS-232C interface) and easy runout measurements with the well-established analogue bar display.
• Functionality meets the needs of diverse measurement applications.
• Measuring maximum value, minimum value and runout (difference between a maximum and a minimum value).
• GO/NO-GO judgement function: If a judgement result shows an out of tolerance condition the display backlighting changes from green to red.
• With the optional remote controller, operations such as zero-setting and presetting can be made without touching the indicator body, thereby avoiding disturbance to the set-up.
• An advanced, remote control system can be implemented with the built-in RS-232 interface and a PC.
• Equipped with a data output port that enables incorporation into measurement networking and statistical process control systems.
