Mitutoyo 559-500-44 | NC Linear Scale AT1344A-100-S | S-Type | Mitsubishi MELSERVO Interface | Resolution 0.01 ¼m

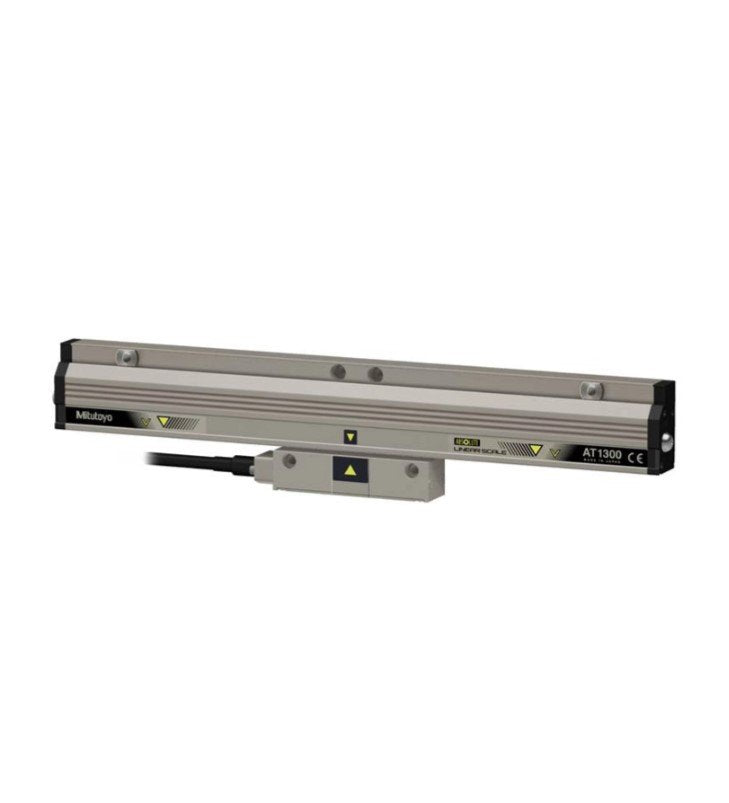

Name: Mitutoyo 559-500-44 | NC Linear Scale AT1344A-100-S | S-Type | Mitsubishi MELSERVO Interface | Resolution 0.01 ¼m
Brand: Mitutoyo
SKU: 559-500-44
Availability: OutOfStock

Part Number : 559-500-44

The Mitutoyo 559-500-44 NC Linear Scale (AT1344A-100-S) delivers 0.01 μm (10 nm) resolution, ideal for ultra-precise CNC motion control. Built with a robust S-Type structure, it offers excellent resistance to mechanical and thermal influences. Equipped with a Mitsubishi MELSERVO interface, it ensures reliable, high-speed communication with compatible control systems. Optimized for critical machining tasks requiring fine linear accuracy and smooth operation. Perfect for integration into high-precision tools and advanced manufacturing systems.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Current consumption [mA]	270 mA (maximum value)
Interface	Mitsubishi MELSERVO
Length	Signal Cable: Maximum 29 m (signal cable + feedback cable)
Power Supply	5 VDC +/- 10%
Resolution	0.01 1/4m
Series	ABS AT1300-S Series
Type	S-Type

Ultra-Fine Resolution: 0.01 μm for micron-level feedback precision
Interface: Mitsubishi MELSERVO for seamless CNC communication
S-Type Structure: Rigid and stable under dynamic machining conditions
Measuring Length: 100 mm for short-travel, high-accuracy applications
Use Case: Excellent for milling, semiconductor, and optical manufacturing systems
