Name: Mitutoyo 559-506-53 | NC Linear Scale AT1353-400-S | S-Type | FANUC Interface Compatibility | Resolution 0.05 ¼m
Brand: Mitutoyo
SKU: 559-506-53
Availability: OutOfStock

Part Number : 559-506-53

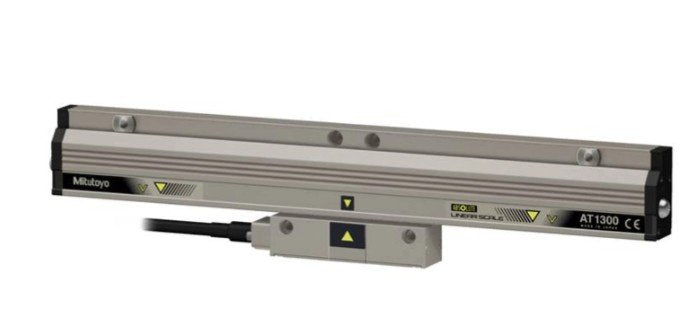

The Mitutoyo 559-506-53 NC Linear Scale AT1353-400-S is a high-precision linear scale designed for integration with FANUC-controlled CNC systems. It features an S-Type absolute encoder, ensuring reliable position feedback even after power interruptions. With a resolution of 0.05 μm, it delivers exceptional accuracy, making it suitable for applications requiring fine measurement precision. The scale's robust design ensures durability and consistent performance in demanding industrial environments. Its compatibility with FANUC interfaces facilitates seamless integration into existing CNC setups.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Current consumption [mA]	270 mA (maximum value)
Interface	FANUC Interface Compatability
Length	Signal Cable : Maximum 29 m (signal cable + feedback cable)
Power Supply	5 VDC +/- 10%
Resolution	0.05 1/4m
Series	ABS AT1300-S Series
Type	S- Type

High Resolution (0.05 μm): Provides ultra-fine measurement accuracy for demanding CNC applications.
S-Type Absolute Encoder: Maintains position data even after power loss, eliminating the need for re-referencing.
FANUC Interface Compatibility: Ensures seamless integration with FANUC-controlled CNC systems.
Compact Design: Ideal for installations with limited space requirements.
Robust Construction: Built to withstand the rigors of industrial environments, ensuring long-term reliability.
