Mitutoyo 559-508-54 | NC Linear Scale AT1354-500-S | S-Type | FANUC Interface Compatibility | Resolution 0.01 ¼m

Name: Mitutoyo 559-508-54 | NC Linear Scale AT1354-500-S | S-Type | FANUC Interface Compatibility | Resolution 0.01 ¼m
Brand: Mitutoyo
SKU: 559-508-54
Availability: OutOfStock

Part Number : 559-508-54

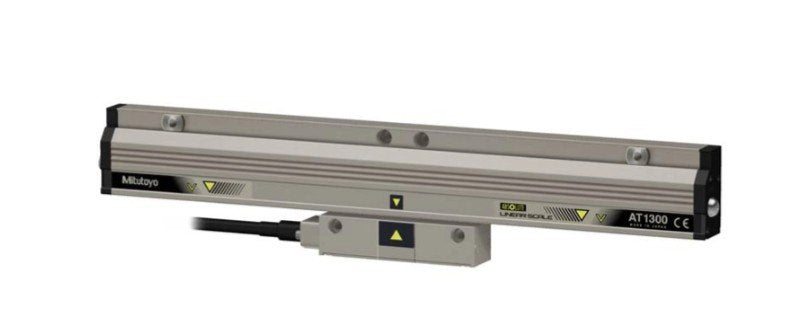

The Mitutoyo 559-508-54 NC Linear Scale AT1354-500-S is a high-precision S-Type linear encoder designed for CNC and automated machinery. It offers a resolution of 0.01 μm, making it ideal for applications requiring ultra-fine measurement accuracy. This model is fully compatible with FANUC interfaces, ensuring seamless integration with FANUC-controlled equipment. Built with durability in mind, it supports reliable operation in industrial environments. The scale features a measuring length of 500 mm, suitable for medium-range precision movement tracking.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Current consumption [mA]	270 mA (maximum value)
Interface	FANUC Interface Compatability
Length	Signal Cable : Maximum 29 m (signal cable + feedback cable)
Power Supply	5 VDC +/- 10%
Resolution	0.01 1/4m
Series	ABS AT1300-S Series
Type	S- Type

High Precision Resolution: Offers a 0.01 μm resolution, ensuring extremely fine accuracy for demanding applications.
FANUC Interface Compatibility: Designed for smooth integration with FANUC CNC systems, facilitating easy communication with FANUC-controlled equipment.
Durable and Robust Construction: Features a solid design with high-quality materials, providing reliable performance even in industrial and harsh environments.
Effective Measuring Length: The scale provides an effective measuring length of 500 mm, making it suitable for medium-range applications.
Advanced Sealing Technology: Equipped with a dust-proof and splash-proof seal structure, ensuring durability and continuous performance under challenging conditions.
