Mitutoyo 559-515-57 | NC Linear Scale AT1357-1100-S | S-Type | FANUC Interface Compatibility | Resolution 0.001 ¼m

Name: Mitutoyo 559-515-57 | NC Linear Scale AT1357-1100-S | S-Type | FANUC Interface Compatibility | Resolution 0.001 ¼m
Brand: Mitutoyo
SKU: 559-515-57
Availability: OutOfStock

Part Number : 559-515-57

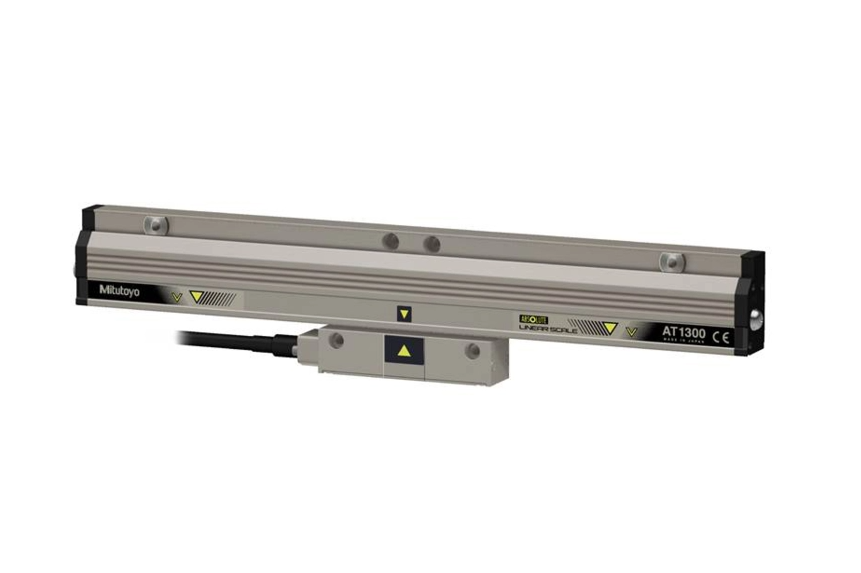

The Mitutoyo 559-515-57 NC Linear Scale (AT1357-1100-S) is a high-precision encoder designed for advanced CNC applications. With a resolution of 0.001 μm, it ensures exceptional accuracy in motion control systems. The S-Type configuration provides robust mechanical design, suitable for high-speed operations. It is fully compatible with FANUC interfaces, facilitating seamless integration into existing systems. Engineered for durability, the scale is resistant to environmental factors such as dust and coolant. Ideal for applications requiring ultra-fine measurement, it supports enhanced productivity and precision in manufacturing processes.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Cable length	: 29 m
Interface	FANUC Interface Compatibility
Length	1100 mm
Max. Response Speed	180 m/min
Model Number	ABSAT1357-1100-S
Power Supply	5 VDC +/- 10% / 270 mA
Resolution	0.001 1/4m
Type	NC Linear Scale
Type	S-Type

Ultra-High Resolution: Offers a resolution of 0.001 μm (1 nanometer), enabling exceptional precision in motion control systems.
FANUC Interface Compatibility: Designed for seamless integration with FANUC CNC systems, ensuring reliable data communication.
S-Type Configuration: Features a robust mechanical design that provides structural stability and precision in high-speed machining environments.
Extended Measuring Range: Provides a generous 1100 mm measuring length, suitable for large-scale precision machinery.
Environmental Durability: Built to withstand harsh conditions, including exposure to coolant, dust, and oil, ensuring long-term reliability.
Stable Signal Output: Delivers consistent and reliable data for dependable motion control and feedback.
