Mitutoyo 967-201-10 Precision Bench Centres

Name: Mitutoyo 967-201-10 Precision Bench Centres
Brand: Mitutoyo
SKU: 967-201-10
Availability: OutOfStock

Part Number : 967-201-10

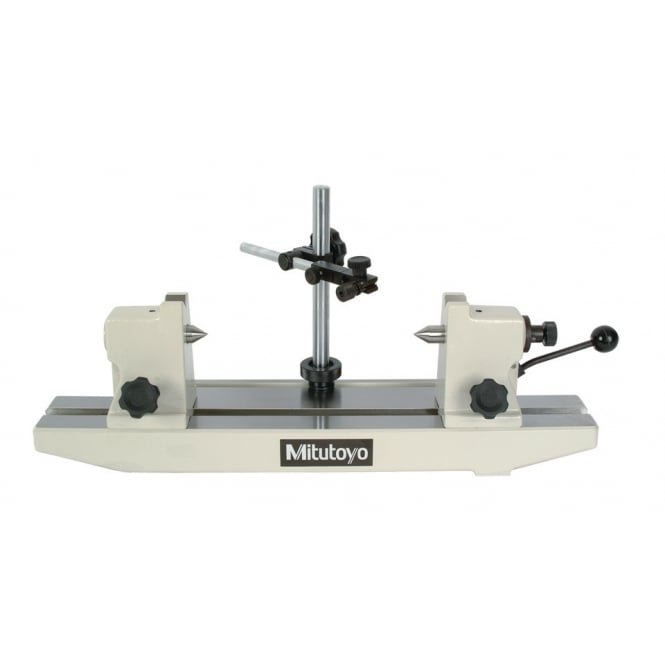

A Mitutoyo fixture for mounting and testing cylindrical components that are centred in each end. A stand is provided for mounting an indicator (optional) for making measurements of, typically, runout, cylindricity and concentricity.

Availability: Sold out

Specifications
Features
Downloads

Brand	Mitutoyo
SKU	967-201-10

Used with a dial test indicator (optional), these Bench Centres provide support for precision measurement of concentricity on cylindrical workpieces.
• With an indicator clamp (holding stem diameter: 8 mm).

Mitutoyo 967-201-10 Precision Bench Centres
