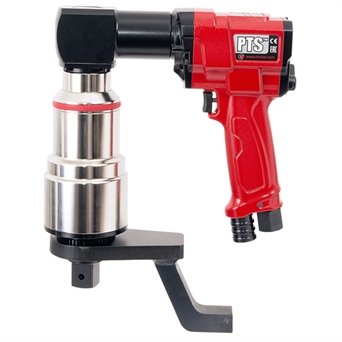

Norbar PneuTorque PTS-92-4000 Pneumatic Torque Multiplier 800-4000NM, 1" Square

Name: Norbar PneuTorque PTS-92-4000 Pneumatic Torque Multiplier 800-4000NM, 1" Square
Brand: Norbar
SKU: 180247.B08
Availability: OutOfStock

Part Number : 180247.B08

The PTS is the outcome of a lengthy design initiative to create an efficient air motor that is specifically designed for use in an accurate torque tool. The new air motor is then coupled with Norbar's well-known gearboxes, which share torque reaction accessories with PTM and EvoTorque® tools.

Availability: Sold out

Free UAE shipping available

Specifications
Features

Accuracy	+/-3%
Brand	Norbar
Free Speed	5.3 rpm
Height	273mm
Length	400mm
Max Air Pressure	6.5 bar
Model Number	PTS-92-4000
Product Number	180247.B08
Range Imperial	590 - 2950 lbf·ft
Range Metric	800 - 4000 N·m
Square Size	1"
Weight	13.61kg

Allows more comfortable operation of the PTS on vertically bolting applications at chest height and above as the pistol grip is presented correctly to the operator
The tool handle can rotate 360° in relation to the Right Angle Gearbox allowing the most comfortable and safest position to be found
Designed to offer excellent power-to-weight ratio
Up to 2.5kg weight saving compared with PT equivalents
Easily accessible switch for forward and reverse operation
±5% repeatability of reading from 20% to 100% of range
Air coupling designed for safety and rapid operation
Directional exhaust barrel directs exhaust away from operator
Replaceable square drive
Fast operation for rapid bolt rundown. Up to 60% faster than PT-72 model
Non impacting - low vibration levels for comfortable and safe use
Steel reactions supplied as standard. Bespoke reactions available
Very quiet operation - reducing the need for protection with sound pressure levels from 77dB(A) to 79dB(A)
