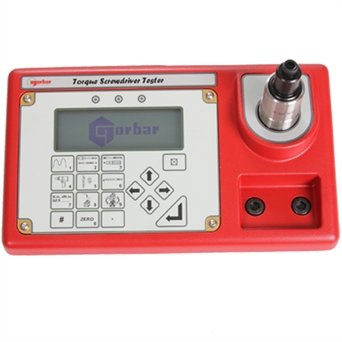

Norbar 43214 | Torque Screwdriver Tester TST 25 | 1.25 - 25 N·m
The Torque Screwdriver Tester (TST) is a torque tester with an internal transducer and rundown fixture for testing and calibrating low-capacity torque tools. It also has an interface for an external transducer. Part number 43214: Torque Screwdriver Tester TST 25 (1.25 - 25 N·m).
Key features
- Internal transducer with rundown fixture
- Three ranges: 0.04-2, 0.5-10 and 1.25-25 N·m
- Class 1 system accuracy over its primary range
- Limit detection with low, pass and fail indication
- RS-232-C interface and analogue output
- Supplied with UKAS accredited calibration certificate (CW)
- Specifications
- Features
- Downloads
| Part Number | 43214 |
| Brand | Norbar |
| Model | TST 25 |
| Torque Range (N·m) | 1.25 - 25 |
- Pictorial display panel for easy mode selection.
- Limit Detection with low, pass and fail indication. Up to 8 target values can be set.
- Pulse count feature in Impulse mode and Clutch Tool mode.
- "SMART" intelligence for transducer recognition.
- Memory for calibration details of 20 non-"SMART" mV/V calibrated transducers.
- User selectable frequency response for each mode of operation.
- All user selectable features have password protection. The instrument can be issued to users with only the required modes of operation and units of measure enabled. This feature can virtually eliminate operator induced errors.
- Operation from fast charge internal battery pack (maximum time of 3 hours 20 minutes for full charge) or a.c. supply (90 to 264 Volts).
- Analogue output allows the instrument to be used as part of a process control system for example, shutting off a power tool at the desired torque.
- RS-232-C serial data interface for connection to a printer or PC. Continuous RS 232 output when used in track mode (up to 11 readings per sec.)
