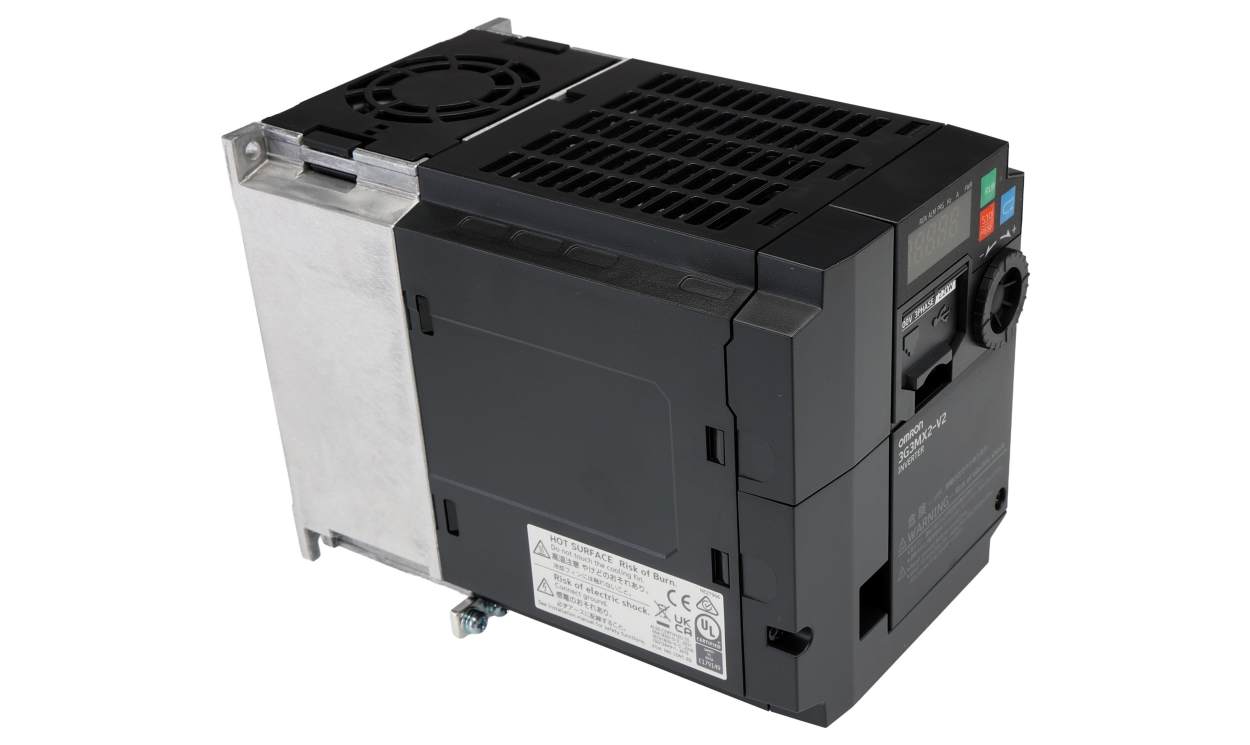

OMRON 3G3MX2-A4022-EV2 | MX2 Vector Control Inverter | 2.2 kW, 3-Phase 400 V AC, 5.5 A

Name: OMRON 3G3MX2-A4022-EV2 | MX2 Vector Control Inverter | 2.2 kW, 3-Phase 400 V AC, 5.5 A
Brand: OMRON
SKU: 3G3MX2-A4022-EV2
Availability: OutOfStock

Part Number : 3G3MX2-A4022-EV2

The OMRON 3G3MX2-A4022-EV2 is a 2.2 kW vector-control inverter drive for AC motors, rated 5.5 A on three-phase 400 V AC. It has an RS485 interface with Modbus, a control panel, STO and IP20, and meets CE, cULus and RoHS.

2.2 kW, 5.5 A
Three-phase 400 V AC
Vector control, 400 Hz output
RS485, Modbus
STO, IP20, control panel
CE, cULus, RoHS

Availability: in stock

Detailed Description
Specifications
Downloads

Omron 3G3MX2 Series Inverter Drive, 2.2 kW Power Rating, 400V AC Supply Voltage - 3G3MX2-A4022-EV2

This inverter drive is designed to effectively control AC motors, specifically featuring vector control technology. With a power rating of 2.2 kW and operating on a three-phase supply voltage of 400V AC, this drive ensures efficient motor performance and control. The compact dimensions of 171mm in depth, 128mm in length, and 108mm in width make it suitable for various industrial applications.

Features & Benefits

• Offers high starting torque of 200% at 0.5 Hz for improved responsiveness
• Provides built-in logic programming for customised control solutions
• Supports Modbus communication for seamless integration into existing systems
• Equipped with a control panel and USB port for easy programming
• Safety features compliant with ISO13849-1 enhance operational security
• Compact design allows for flexible installation in limited spaces

Applications

• Used with industrial AC motors to optimise automation processes
• Ideal for requiring precise speed and torque control
• Utilised in manufacturing environments for conveyor belt operations
• Suitable for machinery that demands compliance with safety standards

What communication protocols are supported for integration?

The device supports Modbus communication, allowing it to easily connect with various automation systems for effective management and control.

How does this product ensure safe operation in demanding environments?

It incorporates safety features compliant with ISO13849-1, including a double input circuit and external device monitor, ensuring reliable operation under various conditions.

What benefits can be expected from using vector control technology?

Vector control technology enhances motor performance, providing precise speed and torque adjustments in response to varying load conditions, which improves overall system efficiency.

Omron MX2 range

The MX2 is specifically designed to drive machines. It has been developed to harmonise advanced motor and machine control. Thanks to its advanced design and algorithms the MX2 provides smooth control down to zero speed, plus precise operation for fast cyclic operations and torque control capability in open loop. The MX2 also gives you comprehensive functionality for machine control such as positioning, speed synchronisation and logic programming. The MX2 is fully integrated within the Omron smart automation platform.

Brand	Omron
Power Rating	2.2 kW
Phase	3
Supply Voltage	400 V ac
Current Rating	5.5 A
Series	3G3MX2
For Use With	AC Motors
Field Bus Communication Type	Modbus
IP Rating	IP20
Output Frequency	400Hz
STO	Yes
Drive Type	Vector Control
Control Panel	Yes
Overall Depth	171 mm
Overall Length	128 mm
Standards Met	CE, cULus, RoHS
Overall Width	108 mm
Interface	RS485
