Omron A16-TBM-1, A16 Series Push Button, Momentary, Panel Mount, 16mm Cutout, SPDT, IP40

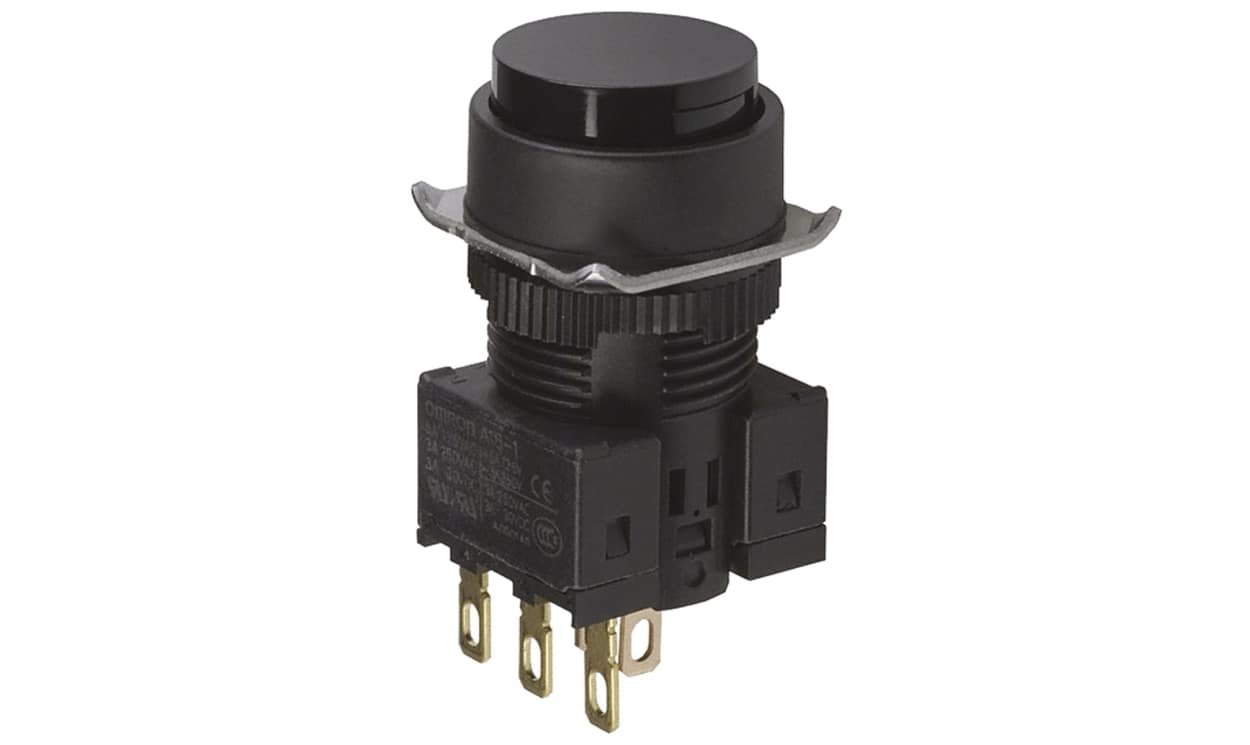

Name: Omron A16-TBM-1, A16 Series Push Button, Momentary, Panel Mount, 16mm Cutout, SPDT, IP40
Brand: OMRON
SKU: A16-TBM-1
Availability: OutOfStock

Part Number : A16-TBM-1

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron Series A16 Push Button, 16mm Panel Cut Out Diameter, SPDT Contact Configuration - A16-TBM-1

This push button is a versatile and robust component designed for panel mounting. The device features a momentary operation mechanism, measuring 16mm in diameter. It is crafted from durable polycarbonate material, ensuring reliability in various applications under diverse operating conditions.

Features & Benefits

• SPDT contact configuration allows for versatile switching options
• Momentary operation provides precise control with a self-resetting function
• Black colour improves visibility and integration in multiple setups
• Easy-to-wire PCB pin terminals simplify installation processes

Applications

• Used in automation systems for control interfaces
• Suitable for electronic device control panels
• Ideal for machinery operator controls and safety
• Can be integrated into industrial equipment for operational commands

What is the operating temperature range for reliable performance?

The push button operates effectively in temperatures ranging from -10°C to +55°C, making it suitable for various environmental conditions.

How is the installation process for this switch?

The device features a panel mount design with an easy-to-wire terminal arrangement, allowing for straightforward installation and maintenance.

What safety ratings are associated with the push button?

The product is rated IP40, meaning it is protected against solid objects larger than 1mm, ensuring functional reliability in controlled environments.

What switching loads can it safely handle?

This switch supports maximum AC voltages of 250V and DC voltages of up to 30V, making it compatible with a wide range of electronic loads.

Is the button suitable for microload applications?

Yes, the design allows the same contacts to be used for both standard loads and microloads, providing versatility in applications.

Omron 16mm Diameter Cut Out - 230Vac Rated

Modular construction (case + contact or indicator block + lens + lamp)
Easy, snap-together assembly
IP65 sealed
Conforms to EN60943-5-1, IEC947-5-1

Brand	Omron
Switch Operation	Momentary
Illuminated	No
Series	A16
Panel Cut Out Diameter	16mm
Mounting Type	Panel Mount
Push Button Colour	Black
Contact Configuration	SPDT
Push Button Style	Round
IP Rating	IP40
Push Button Diameter	18mm
Push Button Material	Polycarbonate
Manufacturer Part No.	A16-TBM-1
Maximum DC Voltage	30V
Panel Cut Out Height	19mm
Minimum Operating Temperature	-10°C
Panel Cut Out Width	19mm
Terminal Type	PCB Pin
Maximum AC Voltage	250V
Operating Temperature Range	-10 → +55°C
