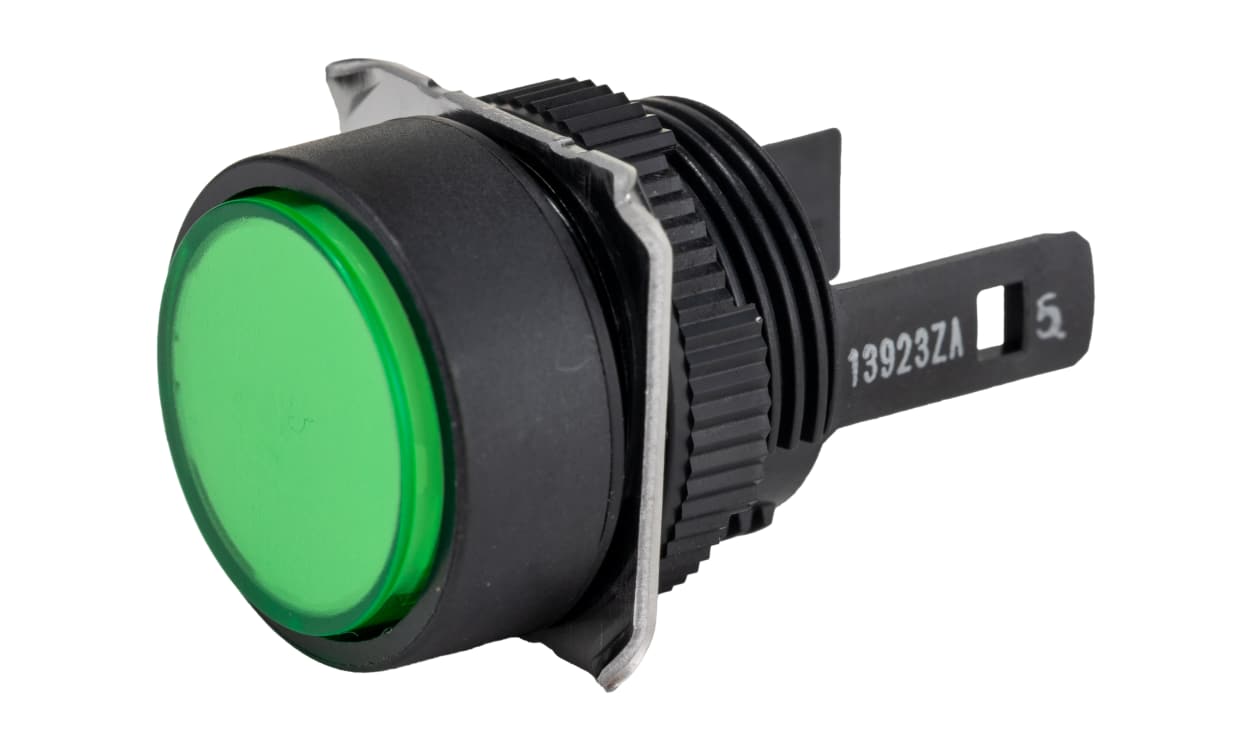

Omron A165L-TGA-24D-2, A16 Series Illuminated Push Button, Panel Mount, 16mm Cutout, DPDT, 24V ac/dc, IP66

Name: Omron A165L-TGA-24D-2, A16 Series Illuminated Push Button, Panel Mount, 16mm Cutout, DPDT, 24V ac/dc, IP66
Brand: OMRON
SKU: A165L-TGA-24D-2
Availability: OutOfStock

Part Number : A165L-TGA-24D-2

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron A16 Series Push Button, 16mm Panel Cut Out Diameter, 24V Voltage Rating - A165L-TGA-24D-2

This illuminated push button switch offers a compact and efficient solution for various control applications. With a 16mm diameter, this panel mount push button is designed for durability and ease of use. Constructed from high-quality polycarbonate material, it operates within a temperature range of -10°C to +55°C and features a waterproof design rated at IP66, ensuring reliable performance in challenging environments.

Features & Benefits

• Designed for panel mounting, simplifying installation in control panels
• Operates at a voltage rating of 24V AC/DC for versatile usage
• Double pole, double throw (DPDT) configuration for flexible switching options
• Green push button provides clear visual indication when illuminated
• Reliable waterproof control switch ensures protection against dust and moisture

Applications

• Ideal for control in automation and electrical systems
• Suitable for use in machinery requiring a robust control interface
• Can be used in HVAC systems for effective user interaction
• For use in industrial equipment requiring reliable switching

What is the current rating of this push button switch?

The switch has a contact current rating of 5A, making it suitable for various applications without compromising on electrical safety.

How durable is this component in harsh environments?

This model boasts an IP66 rating, providing effective protection against dust ingress and water jets, ensuring consistent operation even in challenging conditions.

Can it be easily integrated into existing systems?

Yes, thanks to its standard panel cut-out size of 16mm, it can seamlessly replace or enhance existing configurations in control panels.

What happens if the switch encounters extreme temperatures?

It is designed to function reliably in temperatures ranging from -10°C to +55°C, ensuring steady performance across various environmental conditions.

Omron 16mm Diameter Cut Out - 230Vac Rated

Modular construction (case + contact or indicator block + lens + lamp)
Easy, snap-together assembly
IP65 sealed
Conforms to EN60943-5-1, IEC947-5-1

Brand	Omron
Illuminated	Yes
Panel Cut Out Diameter	16mm
Series	A16
Mounting Type	Panel Mount
Push Button Colour	Green
Contact Configuration	DPDT
Voltage Rating	24V ac/dc
Push Button Style	Round
IP Rating	IP66
Push Button Material	Polycarbonate
Contact Current Rating	5A
Contact DC Voltage Rating	30V
Contact AC Voltage Rating	250V
Manufacturer Part No.	A165L-TGA-24D-2
Operating Temperature Range	-10 → +55°C
Minimum Operating Temperature	-10°C
Maximum DC Voltage	30V
Maximum Operating Temperature	+55°C
Terminal Type	PCB Pin
