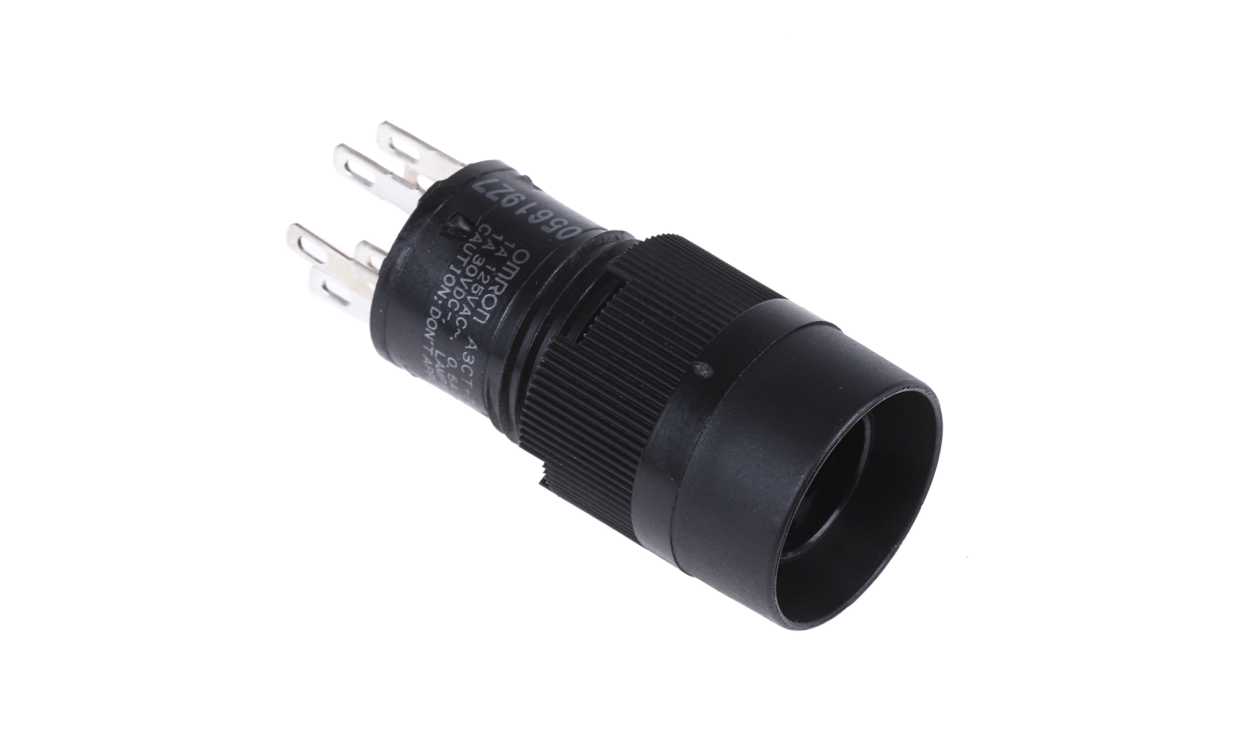

Omron A3CT-7021, Illuminated Push Button Switch, Latching, Panel Mount, 12mm Cutout, SPST, 250V ac, IP40

Name: Omron A3CT-7021, Illuminated Push Button Switch, Latching, Panel Mount, 12mm Cutout, SPST, 250V ac, IP40
Brand: OMRON
SKU: A3CT-7021
Availability: OutOfStock

Part Number : A3CT-7021

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron A3C Series Push Button Switch, Panel Mount, IP40 - A3CT-7021

This illuminated push button switch offers an effective solution for automation and control applications. Featuring a round push button design and a latching mechanism, it enhances visibility and user interaction. Its panel mount capability and sturdy construction make it suitable for various industrial environments, facilitating easy integration with existing systems.

Features & Benefits

• Panel mounting design requires only 20mm depth
• SPST configuration allows for simple on/off control
• High visibility helps operators easily see the status
• Rated for 250V AC, ensuring versatility in applications
• IP40 rating provides protection against dust and solid objects
• Replaceable components ease maintenance and minimise downtime

Applications

• Suitable for control panels in automation systems
• Used in machinery where status indication is necessary
• Applicable in electrical enclosures needing user interface controls
• Commonly found in mechanical industries for operational controls

What type of terminal connection can be used with this device?

It supports solder terminal connections for reliable installation.

How to install it onto a panel?

Insert the unit from the front and secure it with a nut from the rear.

What is the operating temperature range for this device?

It functions effectively within -10 to +55°C conditions.

Can the illumination be switched off?

It features a latching operation, maintaining the selected state until changed.

What maintenance is required for optimal performance?

Regularly check for secure mounting and ensure components are free from debris.

Approvals

UL; CSA

Brand	Omron
Switch Operation	Latching
Illuminated	Yes
Panel Cut Out Diameter	12mm
Mounting Type	Panel Mount
Contact Configuration	SPST
Voltage Rating	250V ac
Push Button Style	Round
IP Rating	IP40
Contact Current Rating	500 mA @ 250 V ac
Manufacturer Part No.	A3CT-7021
Terminal Type	Solder
