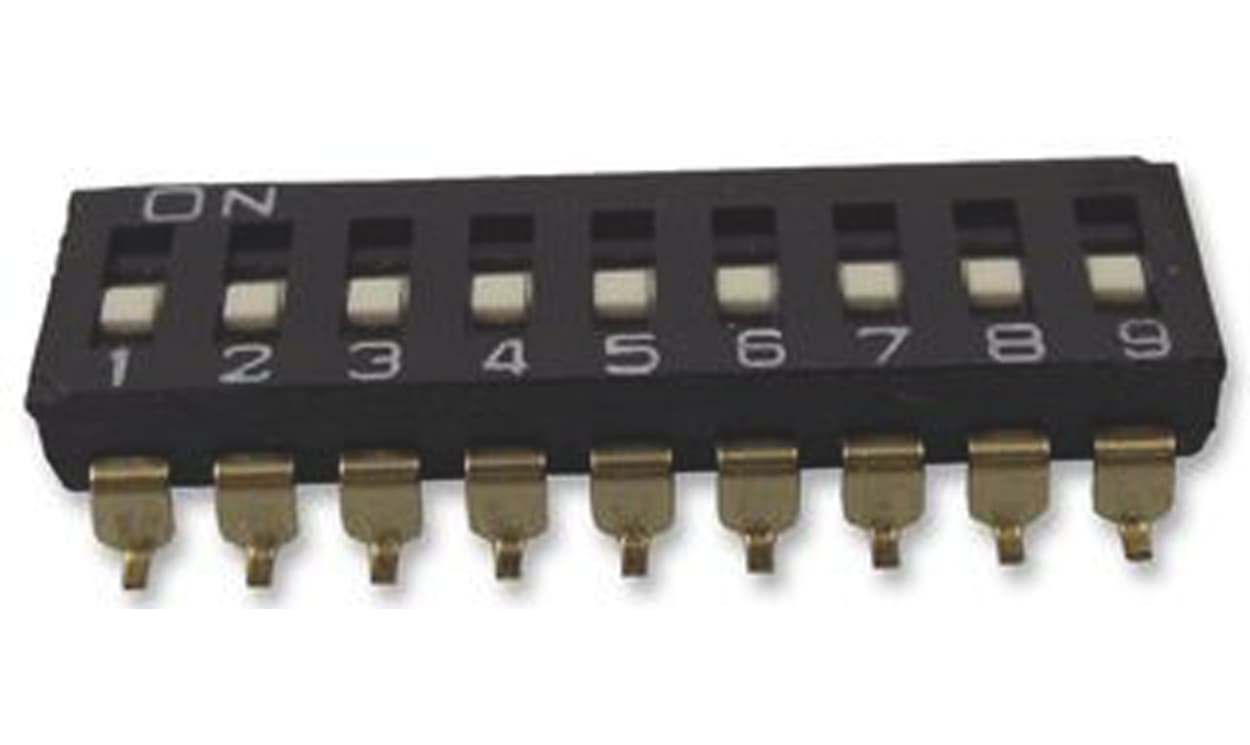

Omron A6S-9101-H, 9 Way Surface Mount DIP Switch 9P

Name: Omron A6S-9101-H, 9 Way Surface Mount DIP Switch 9P
Brand: OMRON
SKU: A6S-9101-H
Availability: OutOfStock

Part Number : A6S-9101-H

Availability: Sold out

Detailed Description
Specifications
Downloads

Slide Switch

Surface mount DIL switches designed to DIL standards. Allow automatic mounting with IC insertion machines.

Surface mounting
Flat actuators available as sealed tape versions
Gold plated contacts
Contact resistance: 200mΩ max
Insulation resistance: 100MΩ min at 250Vdc
RoHS compliant
Mechanical life: 1000 operations

Dual-In-Line Switches

Sub-miniature switches in a choice of configurations and actions. Note that these switches are not suitable for immersion cleaning unless stated otherwise.

Brand	Omron
Number of Positions	9
Mounting Type	Surface Mount
Contact Material	Gold Plated
Contact Configuration	9P
Package Style	DIP
Actuator Type	Slide
Contact Current Rating	25 mA@ 24 V dc
Mechanical Life	1000Operations
Maximum Operating Temperature	+70°C
Minimum Operating Temperature	-20°C
Operating Temperature Range	-20 → +70°C
Dielectric Strength	500V ac
