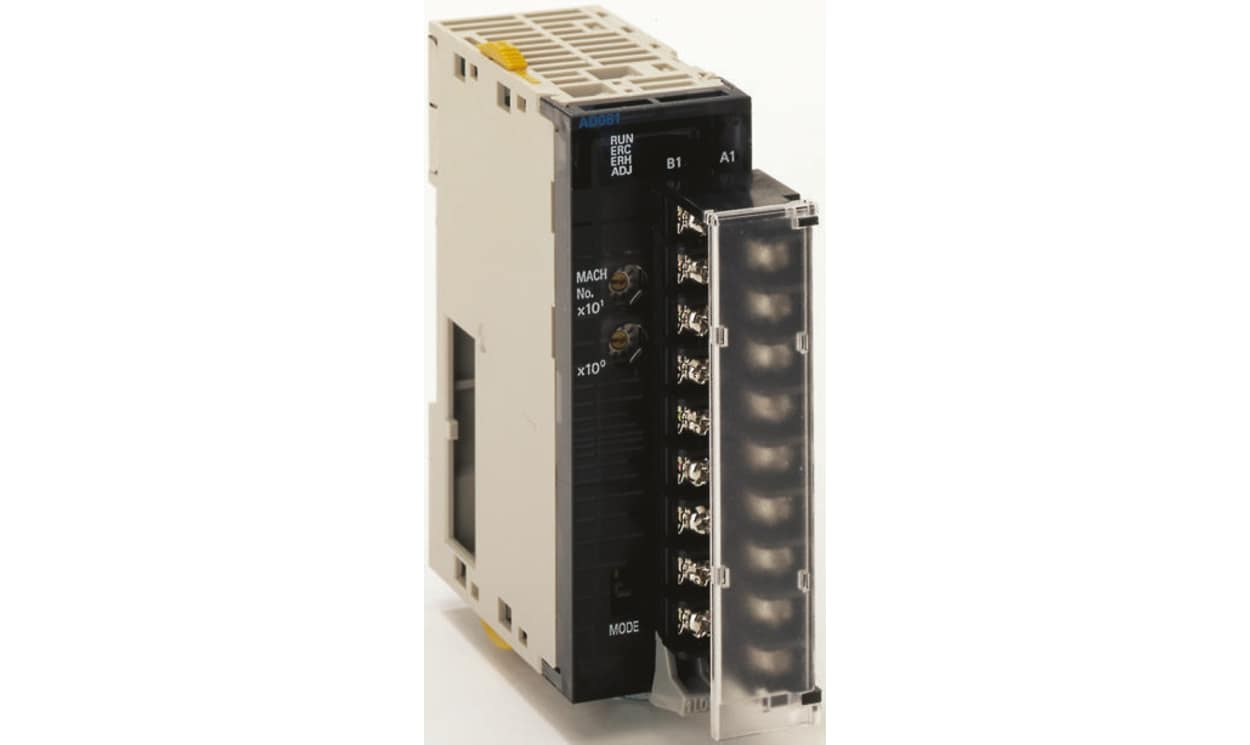

OMRON CJ1W-DA021 | Analogue Output Unit | 2 Outputs, CJ Series

Name: OMRON CJ1W-DA021 | Analogue Output Unit | 2 Outputs, CJ Series
Brand: OMRON
SKU: CJ1W-DA021
Availability: OutOfStock

Part Number : CJ1W-DA021

OMRON CJ1W-DA021 is a two-channel analogue output module for CJ Series PLCs, rated at 12 mA output current.

Outputs: 2 analogue
Output current: 12 mA
For use with: CJ Series
Dimensions: 90 x 31 x 65 mm

Availability: in stock

Detailed Description
Specifications
Downloads

Analogue I/O Modules

All offer the following ranges: 0-5V, 0-10V, 1-5V, ±10V and 4-20mA
Resolution: 12 bit (510-1423 and 512-5946 are 11 bit)
Input up to eight analog signals with one unit

Omron CJ1M Digital and Analogue I/O Modules

CJ1 Digital I/O, Analogue I/O, and Communication modules clip together to the right of the CPU in any combination up to a maximum of 10 modules. A further 10 modules can be connected to a CJ1M-CPU13 or CJ1M-CPU23 based system as part of an expansion assembly.

Dimensions: Height 90mm, Width 31mm, Depth 89mm
All modules have removable screw terminal blocks for I/O connections, except screwless (SL)

Brand	Omron
Accessory Type	PLC I/O Module
Series	CJ Series
Output Type	Analogue
Number of Outputs	2
For Use With	CJ Series
Output Current	12 mA
Dimensions	90 x 31 x 65 mm
