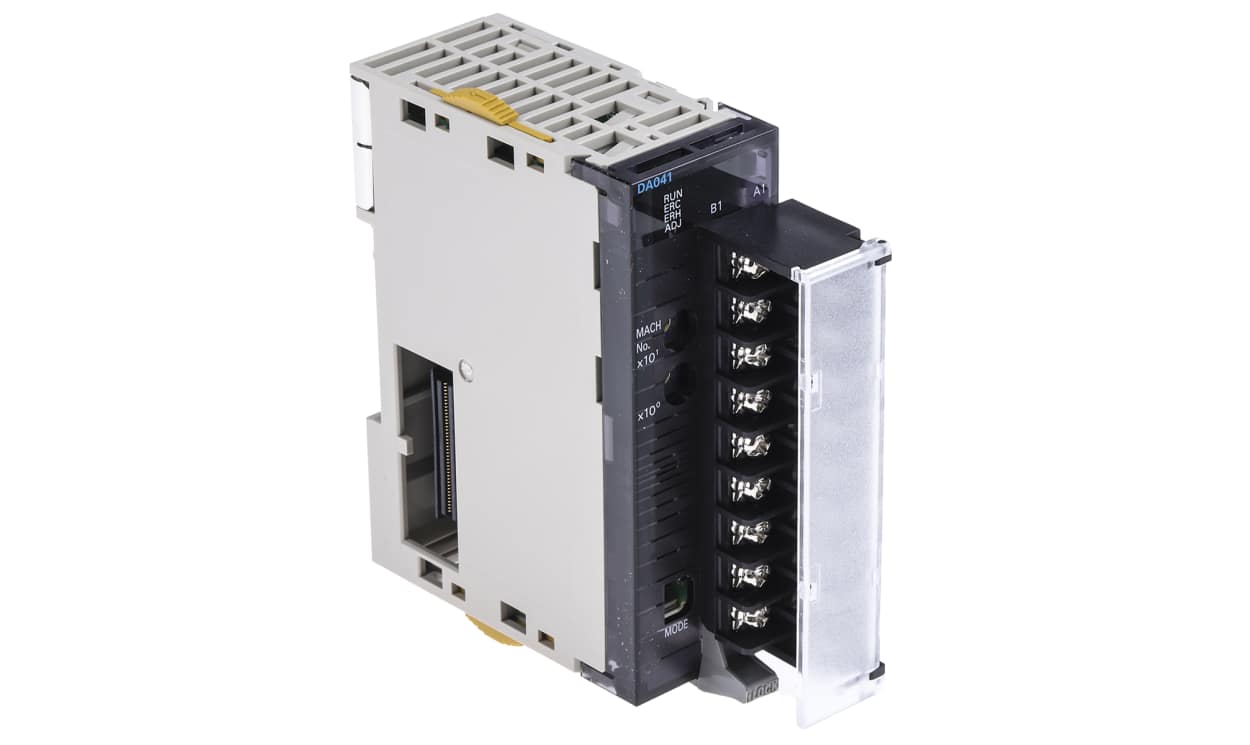

Omron CJ1W-DA041, CJ Series Series PLC I/O Module for Use with CJ Series, Analogue

Part Number : CJ1W-DA041

Analog output unit, 4 x outputs 1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA, externally powered 24 VDC 200 mA, screw terminal

Availability: Sold out

Detailed Description
Specifications
Features

Omron Series CJ PLC I/O Module, 4 Outputs - CJ1W-DA041

This high-performance analog output unit from the CJ series supports rapid D/A conversion for reliable output transmission. It features an output signal range of 1 to 5V and 4 to 20mA, with a maximum output current of 2mA per point for current outputs. Designed for precise data transmission in demanding environments, it ensures efficient operation.

Features & Benefits

• Supports four analogue outputs for versatile operation
• High-speed D/A conversion at 20μs per point
• Line disconnection detection ensures reliable performance
• Adjustable scaling and offset/gain options for precision
• Removable terminal block simplifies maintenance

Applications

• Used for temperature and position control systems
• Ideal for speed control in servo controllers
• Supports pressure and flow rate monitoring
• Utilised in data logging with chart recorders
• Enhances transducer performance in industrial setups

Is it suitable for temperature control applications?

Yes, it is widely used in temperature control systems.

Can it be easily integrated into existing systems?

Yes, it is designed for compatibility with CJ-series products.

Does it require a specific power supply?

No, it operates with standard 24V DC power supply inputs.

Brand	Omron
Accessory Type	PLC I/O Module
Series	CJ Series
Output Type	Analogue
Number of Outputs	4
For Use With	CJ Series
Output Current	12 mA
Termination	Screw
Dimensions	89 x 90 x 31 mm

Analog output unit, 4 x outputs 1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA, externally powered 24 VDC 200 mA, screw terminal
