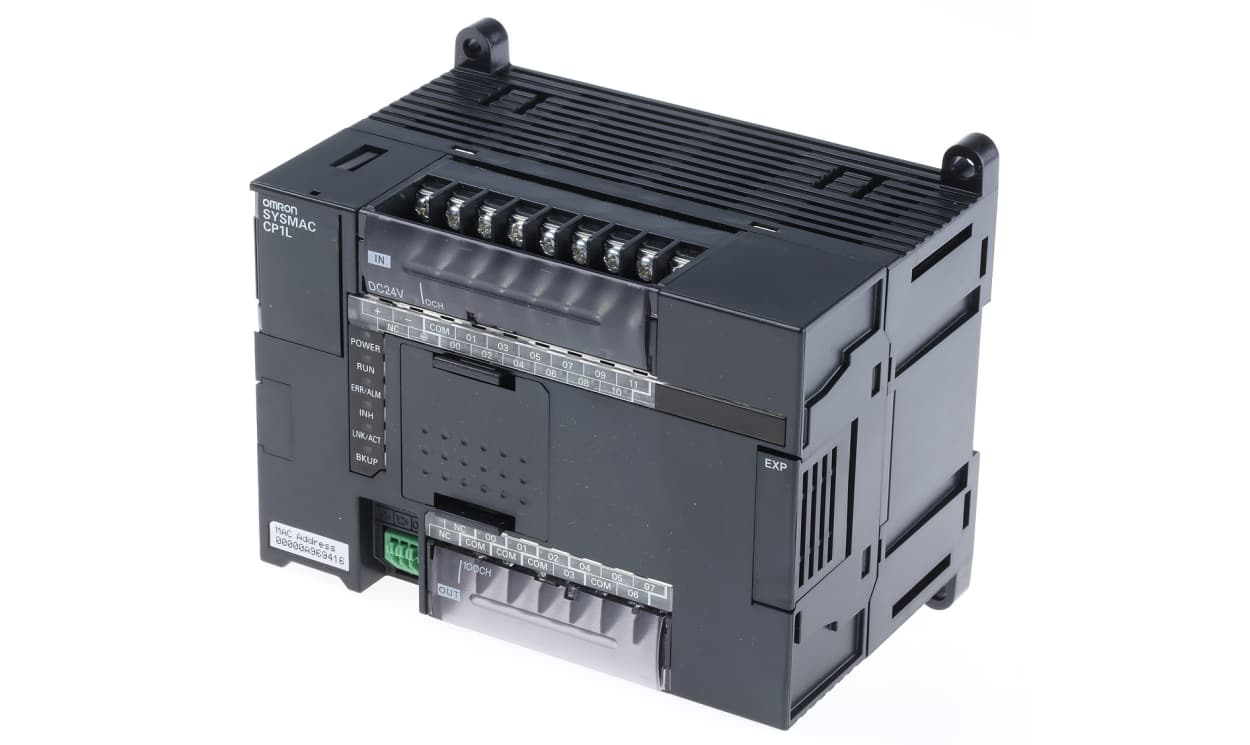

Omron CP1L-EL20DR-D, CP1L-EL Series PLC CPU for Use with CP Series, Relay Output, 12-Input, DC Input

Name: Omron CP1L-EL20DR-D, CP1L-EL Series PLC CPU for Use with CP Series, Relay Output, 12-Input, DC Input
Brand: OMRON
SKU: CP1L-EL20DR-D
Availability: OutOfStock

Part Number : CP1L-EL20DR-D

Availability: Sold out

Detailed Description
Specifications

Omron CP1L-EL Series PLC CPU, 12 Inputs, 20.4V to 26.4V Voltage Category - CP1L-EL20DR-D

This PLC CPU is a reliable industrial automation controller offering a compact design with dimensions of 86 x 90 x 85 mm. It supports a variety of applications with 12 inputs and 8 outputs, ensuring efficient control in various environments. The device operates within a DC voltage range of 20.4 to 26.4 V, making it suitable for numerous electrical and mechanical systems.

Features & Benefits

• Supports Ethernet connectivity for easy network integration
• 5000-step programme capacity allows complex automation tasks
• Ideal as a relay output PLC for diverse control requirements
• DIN rail mounting ensures space-saving installation

Applications

• Used with CP series devices for comprehensive control solutions
• Ideal for automation in manufacturing and process industries
• Utilised for precise control in electrical distribution systems
• Suitable for requiring robust communication protocols

What type of programming language does it support?

The device utilises ladder diagram programming, which simplifies task scheduling and logic implementation, making it accessible for programming professionals.

How does this controller maintain operation during a power failure?

The built-in battery backup enables the PLC to retain crucial memory and configuration, ensuring that operations can continue without interruption even during power outages.

What is the significance of having both digital and analogue inputs?

Having multiple digital inputs allows for the monitoring of various sensors and switches, while the analogue inputs provide the capability to process variable signals, enabling a broader range of functionalities for sophisticated automation tasks.

Brand	Omron
Manufacturer Series	CP1L-EL
Number of Inputs	12
Output Type	Relay
For Use With	CP Series
Input Type	DC
Number of Digital Inputs	8
Number of Outputs	8
Voltage Category	20.4 → 26.4 V dc
Network Type	Ethernet
Number of Digital Outputs	8
Dimensions	86 x 90 x 85 mm
Number of Communication Ports	1
Depth	85mm
Program Capacity	5000 Steps
Length	86mm
Display Included	Yes
Communication Port Type	RS232
Programming Language Used	Ladder Diagram
Mounting Type	DIN Rail
