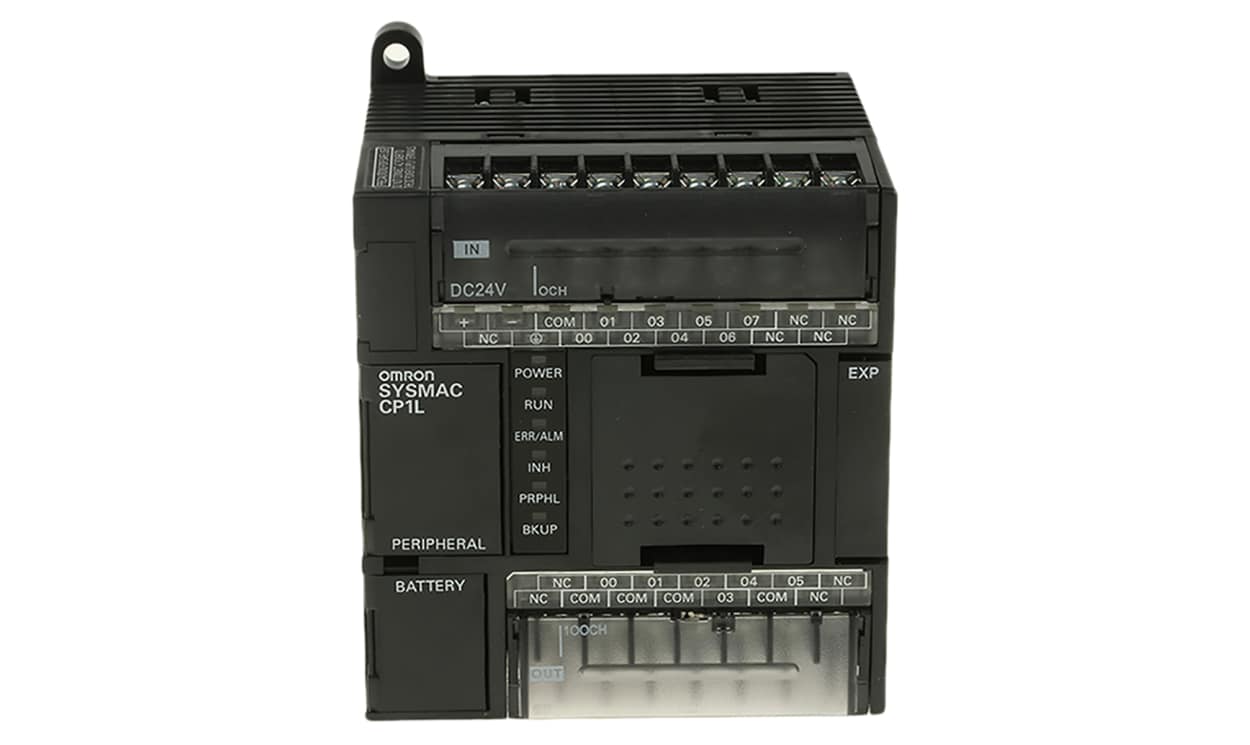

OMRON CP1L-L14DT1-D | CP1L Series PLC CPU | 8 DC Inputs, 6 Transistor Outputs

Name: OMRON CP1L-L14DT1-D | CP1L Series PLC CPU | 8 DC Inputs, 6 Transistor Outputs
Brand: OMRON
SKU: CP1L-L14DT1-D
Availability: OutOfStock

Part Number : CP1L-L14DT1-D

OMRON CP1L-L14DT1-D is a CP1L PLC CPU with 6 transistor outputs (300 mA per point) and 8 DC inputs, holding 5000 program steps.

Outputs: 6 transistor; 300 mA per point, 900 mA per common
Inputs: 8 DC
Voltage: 20.4 to 26.4 V DC
Program capacity: 5000 steps
Dimensions: 86 x 110 x 85 mm, DIN rail

Availability: in stock

Detailed Description
Specifications
Downloads

CP1L CPU

Compatible with all other devices in the Omron PLC line-up
Uses identical software as other Omron controllers
4 high-speed encoder inputs and 2 high-speed pulse outputs
AC or DC supply
Instruction set compatible with CP1H-, CJ1- and CS1 series PLC's
CP1L-EM / CP1L-EL has a standard-feature Ethernet port
CP1L-M / CP1L-L has a standard-feature peripheral USB port
Optional RS232C and RS-422A/485 serial ports
Scaleable with a wide range of I/O units (maximum up to 160 I/O points)
Motion functionality

Note

Omron CPM1, CPM1A, CPM2A, CPM2C Expansion Modules may be used with the CP1L CPU range.

Standards

UC1, N, L, CE

Omron CP1L CPU's, Expansion Modules and Accessories

Omron's CP1L series offers the compactness of a micro-PLC with the capability of a modular PLC. The range is not only compact, it is scaleable too, and has a faster processing speed than other controllers.

Brand	Omron
Manufacturer Series	CP1L
Number of Inputs	8 (DC)
Output Type	Transistor
For Use With	SYSMAC CP1L Series
Input Type	DC
Voltage Category	20.4 → 26.4 V dc
Number of Outputs	6 (Transistor)
Network Type	USB
Width	110mm
Mounting Type	DIN Rail
Programming Language Used	Ladder Logic
Number of Communication Ports	1
Output Current	3.6 (Per Unit) A, 300 (Per Point) mA, 900 (Per Common) mA
Maximum Operating Temperature	+55°C
Battery Backup	Yes
Length	86mm
Depth	85mm
Program Capacity	5000 Steps
Dimensions	86 x 110 x 85 mm
