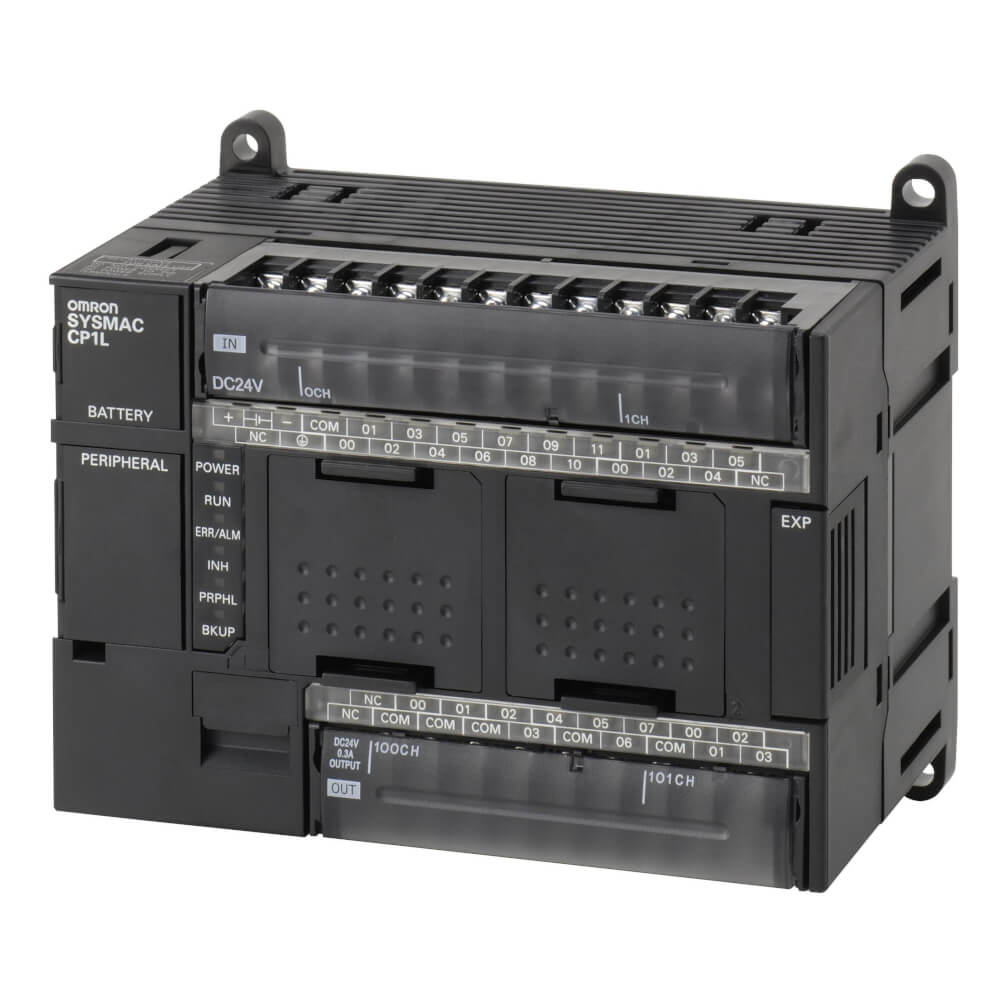

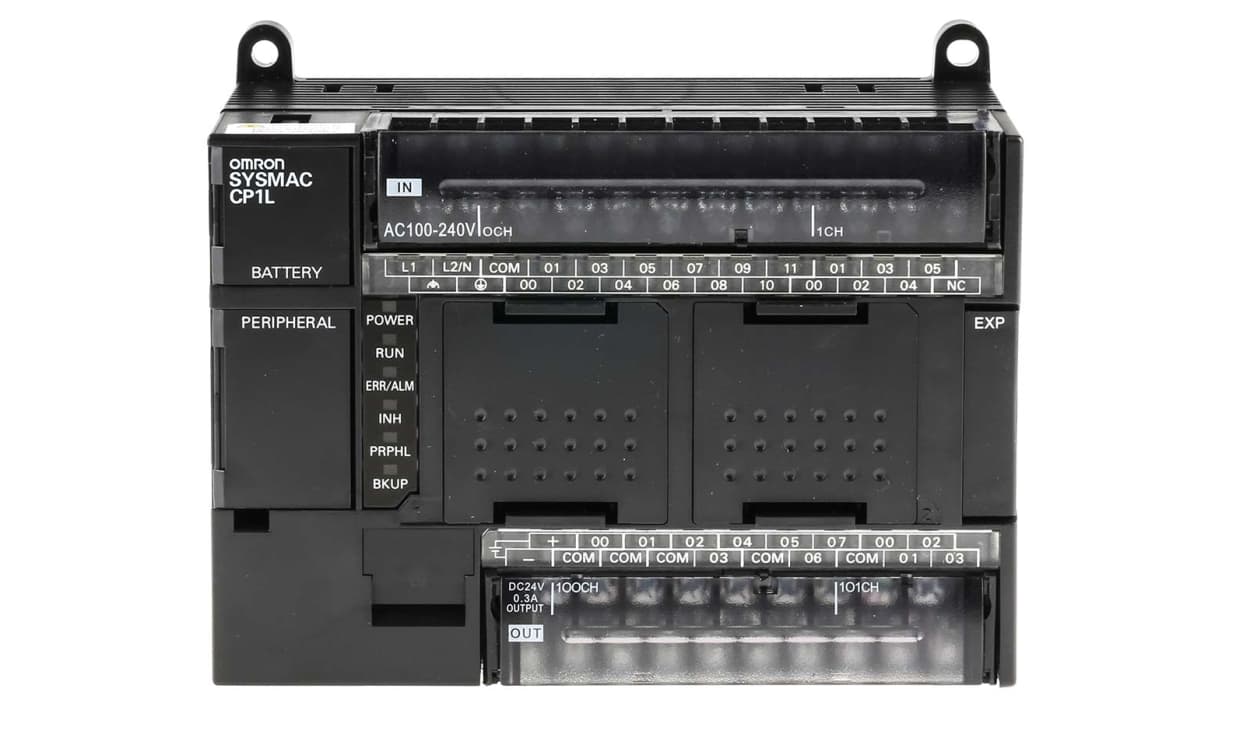

OMRON CP1L-M30DR-A | CP1L Series PLC CPU | 18 Inputs, 12 Relay Outputs, 100-240 VAC

Name: OMRON CP1L-M30DR-A | CP1L Series PLC CPU | 18 Inputs, 12 Relay Outputs, 100-240 VAC
Brand: OMRON
SKU: CP1L-M30DR-A
Availability: OutOfStock

Part Number : CP1L-M30DR-A

The OMRON CP1L-M30DR-A is a CP1L PLC powered from 100-240 VAC, with 18 x 24 VDC inputs and 12 relay outputs rated 2 A. Memory is 10K steps of program plus 32K words of data.

Supply: 100-240 VAC
Inputs: 18 x 24 VDC
Outputs: 12 x relay, 2 A
Memory: 10K steps program, 32K words data
Battery backup, Ladder Logic
DIN rail; length 130 mm, depth 85 mm

Availability: in stock

Detailed Description
Specifications
Features
Downloads

Omron Programmable Logic Controller

The Omron CP1L is a programmable logic controller(PLC) with 12 relay output and USB networking computer interface. It has 10000 steps program capacity and 30 built-in I/O points. This PLC is for use with SYSMAC CP1L series. The series offers the compactness of a micro-PLC with the capability of a modular PLC. This range is not only compact, but also scalable, and it has faster processing speed than other controllers. This product has many advantages as compared to its earlier generation of PLCs like six in-built interrupts, high-speed counters, faster processing of instructions that speed up the entire system and structural text language support that makes mathematical operations much easier. It also has high precision positioning control suitable for advanced robotics.
Note
:
Omron CPM1, CPM1A, CPM2A, CPM2C Expansion Modules may be used with the CP1L CPU range.

Features and Benefits

Built-in USB port
Required AC power supply
Compatible with all the other devices in the Omron PLC line-up
Uses identical software as other Omron controllers
Four high-speed encoder inputs and two high-speed pulse outputs
Memory size of 32k words
Expandable up to three modules
Instruction set compatible with CP1H, CJ1 and CS1 series PLCs
Operating temperature ranges between 0°C and 55°C
Optional RS232C and RS-422A/485 serial ports
Motion functionality

Applications

Industrial automation
Robotics
Automobiles industry

Certifications

UC1 certified
N certified
L certified
CE
cULus approved
Lloyd approved
NK certified

Brand	Omron
Manufacturer Series	CP1L
Number of Inputs	18 (DC)
Output Type	Relay
For Use With	SYSMAC CP1L Series
Input Type	DC
Number of Outputs	12 (Relay)
Voltage Category	85 → 264 V ac
Network Type	USB
Output Current	2 A
Battery Backup	Yes
Program Capacity	10000 Steps
Depth	85mm
Length	130mm
Mounting Type	DIN Rail
Programming Language Used	Ladder Logic
Number of Communication Ports	1
Memory	10000 (Program Memory) Steps, 32000 (Data Memory) Words
Programming Interface	Computer
Maximum Operating Temperature	+55°C

PLC, 100-240 VAC supply, 18 x 24 VDC inputs, 12 x relay outputs 2 A, 10K steps program + 32K words data memory
