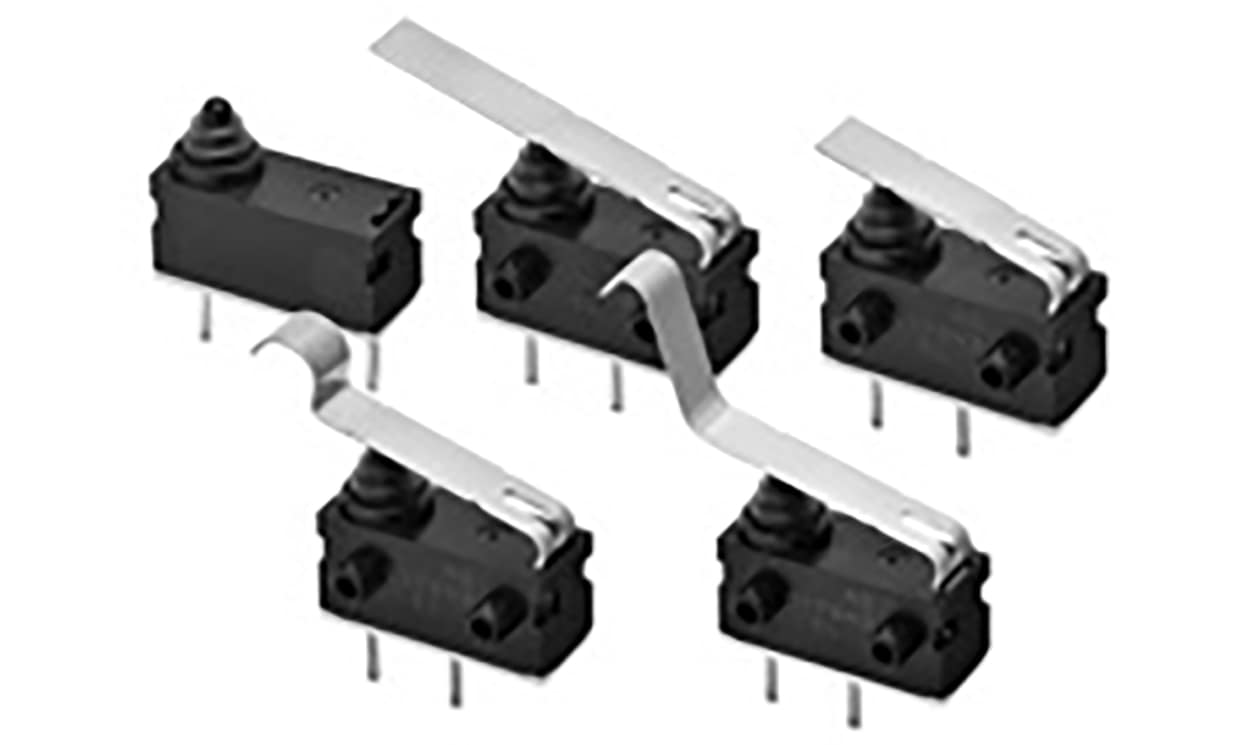

OMRON D2AW-A063D R | D2AW Subminiature Micro Switch | Leaf Lever, SPST, IP67, PCB
The OMRON D2AW-A063D R is a subminiature micro switch with a leaf lever actuator and PCB terminals. Its SPST silver contact is rated at 100 mA and 12 V DC, and the sealed design meets IP67 under IEC 60529.
- Leaf lever actuator
- SPST, 100 mA, 12 V DC
- PCB terminals
- IP67 (IEC 60529)
- Operating force 2 N, release force 0.2 N
- Operating temperature -40 to +85 °C
- Detailed Description
- Specifications
- Downloads
| Brand | Omron |
| Actuator Type | Leaf Lever |
| Terminal Type | PCB |
| Contact Configuration | SPST |
| IP Rating | IP67 |
| Contact Current Rating | 100 mA |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Maximum Operating Temperature | +85 °C (185 °F) |
| Contact Material | Silver |
| Operating Temperature Range | -40 → +85 °C (-40 to 185 °F) |
| Operating Force | 2 N |
| Release Force | 0.2N |
| Case Material | Rubber |
| Switch Housing | D2 Housing |
| Voltage Rating | 12V dc |
| Standards Met | IEC 60529 |
