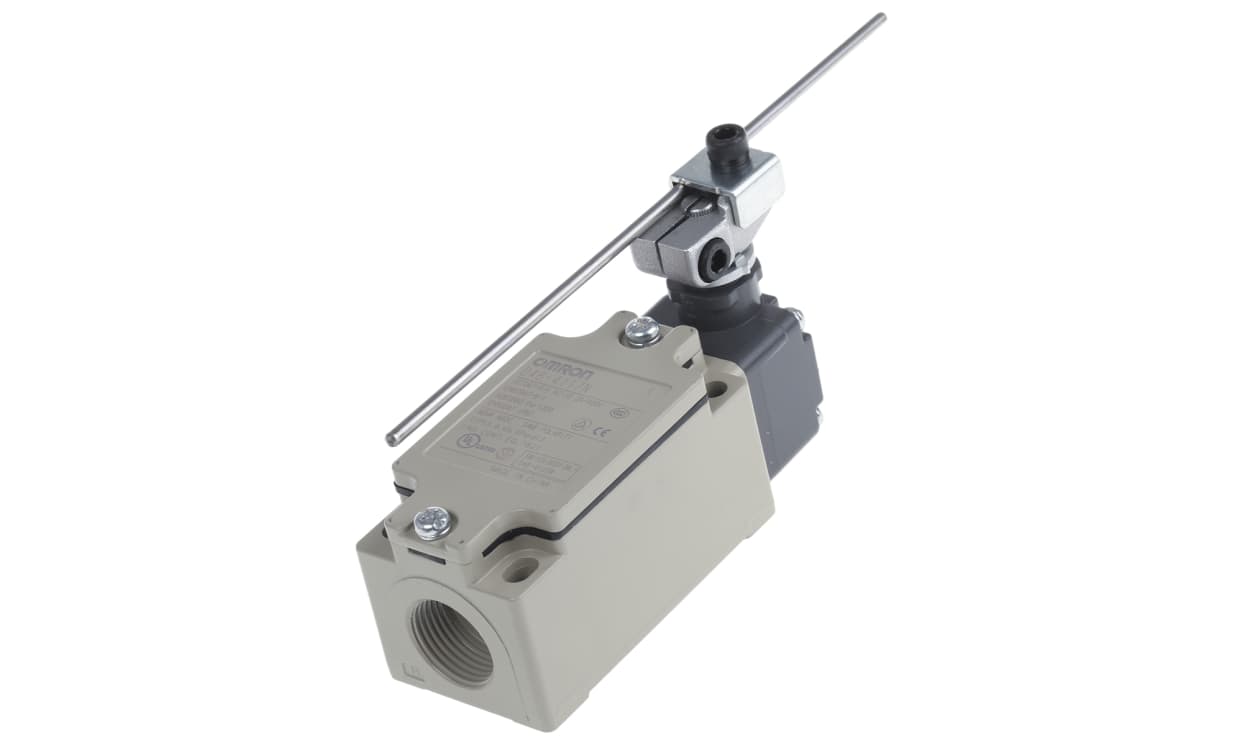

Omron D4B-4117N, D4B-N Series Rod Limit Switch, 1NC/1NO, DPST, Aluminium Housing

Name: Omron D4B-4117N, D4B-N Series Rod Limit Switch, 1NC/1NO, DPST, Aluminium Housing
Brand: OMRON
SKU: D4B-4117N
Availability: OutOfStock

Part Number : D4B-4117N

Safety Limit switch, D4B, M20, 1NC/1NO (snap-action), adjustable rod lever

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

Omron D4B-N Series Interlock Switch, 1NO, 1NC, Snap action Switch - D4B4117N

This safety limit switch features an aluminium housing and measures 99.5mm in length, 40mm in width, and 43mm in depth. It has a rod actuator type with a DPST configuration, ensuring robust performance across diverse environments.

Features & Benefits

• Direct opening mechanism enhances safety during faults
• Durable design supports up to 30 million mechanical cycles
• Snap-action contacts provide consistent switching performance
• M20 connection type ensures easy installation and compatibility

Applications

• Used for safety interlocking in machinery
• Employed in automation and control systems
• Ideal for conveyor systems and material handling
• Utilised in robotic applications and automated production lines
• Suitable for environments requiring consistent switching mechanisms

Can it operate effectively in varying temperature conditions?

Yes, it works in temperatures from -40°C to 80°C.

Is it compatible with automation systems that require a consistent switch?

Yes, it is designed for effective integration in such systems.

Does it require specific wiring practices during installation?

Yes, proper crimp terminals and torque specifications are necessary.

Brand	Omron
Actuator Type	Rod
Pole and Throw Configuration	DPST
Normal State Configuration	1NC/1NO
Housing Material	Aluminium
Connection Type	M20
Series	D4B-N
Action Type	Snap Action
Length	99.5mm
Depth	43mm
Minimum Operating Temperature	-40°C
Width	40mm
Maximum Operating Temperature	'+80°C
Standards Met	CE
Operating Force	2.12 N
Mechanical Life	30000000Cycles

Safety Limit switch, D4B, M20, 1NC/1NO (snap-action), adjustable rod lever

Omron D4B-4117N, D4B-N Series Rod Limit Switch, 1NC/1NO, DPST, Aluminium Housing

DOWNLOAD CATALOG

D4B-4117N Omron Machine Safety 0900766b814c686b

D4B-4117N Datasheet 0900766b8157dc28
