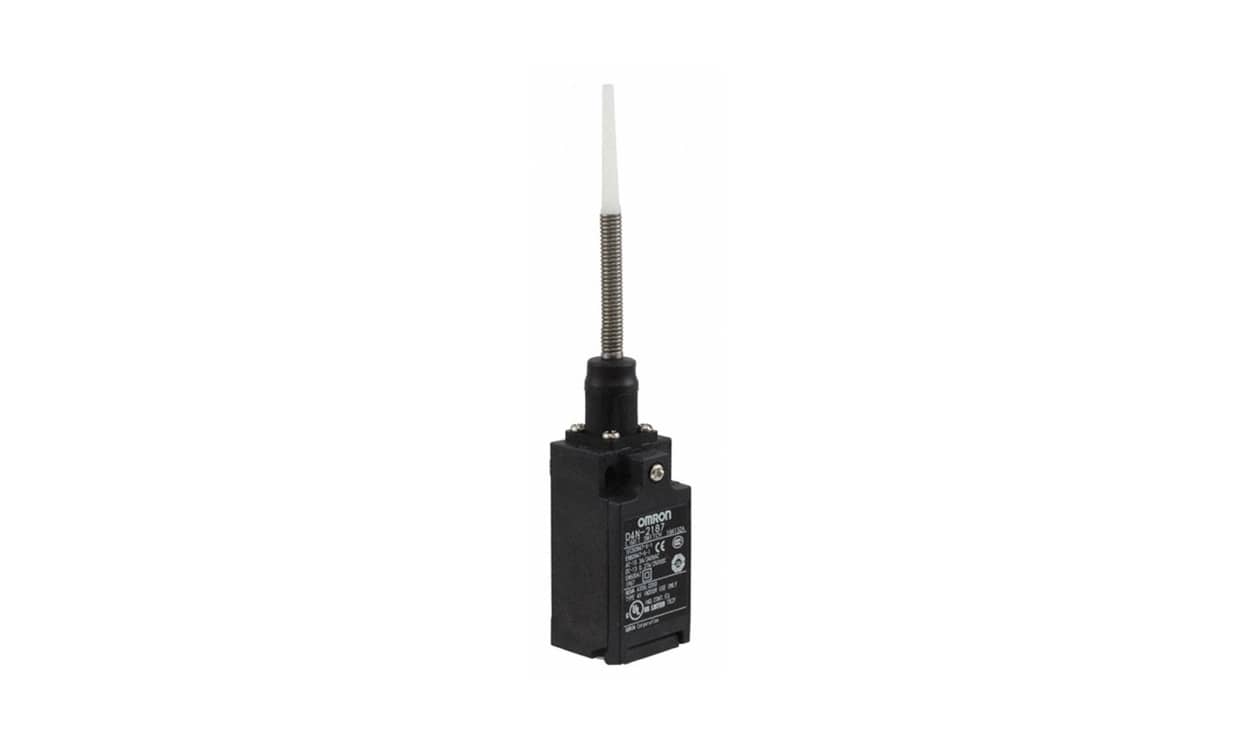

Omron D4N-2187, D4N Series Rod Limit Switch, NO/NC, IP67, DPST, Plastic Housing, 240V ac ac Max, 10A Max

Part Number : D4N-2187

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron D4N Series Limit Switch, 10A Maximum Current, IP67 - D4N-2187

This limit switch is designed for various industrial applications, featuring a rod actuator type. With a compact size of 31mm in width and 170mm in depth, this switch is built to meet the demands of automated systems. Its robust plastic housing ensures durability while providing an IP67 rating for water and dust protection, enabling reliable performance even in challenging environments.

Features & Benefits

• Direct opening mechanism enhances safety for users
• Plastic housing construction offers lightweight durability
• Rated for up to 10A, suitable for high current usage
• Vertical mounting option simplifies installation processes
• Mechanical life of 15 million cycles ensures longevity

Applications

• Utilised in conveyor systems for position detection
• Applicable in automated machinery for operational safety
• Ideal for equipment monitoring in electrical control panels
• Suitable for use in robotic arms for precision control
• Effective in industrial automation where reliability is crucial

What are the operational temperature limits for this switch?

The switch can operate efficiently in temperatures ranging from -30°C to +70°C, ensuring functionality in diverse environments.

How does the IP67 rating contribute to its use in automation?

The IP67 rating signifies complete protection against dust ingress and the ability to withstand immersion in water, making it ideal for demanding industrial settings.

Can it handle different types of loads?

Yes, it is capable of switching both standard loads and micro loads, offering versatility in various applications.

What is the significance of the direct opening mechanism?

This mechanism provides an additional safety feature that ensures the normally closed contacts open under extreme conditions, reducing the risk of hazardous situations.

How is the installation process simplified for this limit switch?

The switch supports vertical mounting, which streamlines the installation process and enhances accessibility for maintenance and adjustments.

Brand	Omron
Actuator Type	Rod
Pole and Throw Configuration	DPST
Normal State Configuration	NO/NC
IP Rating	IP67
Maximum Current	10A
Housing Material	Plastic
Maximum AC Voltage	240V ac
Maximum DC Voltage	250V dc
Connection Type	M20
Series	D4N
Length	31mm
Maximum Operating Temperature	+70°C
Width	31.5mm
Minimum Operating Temperature	-30°C
Depth	170mm
Operating Force	1.5 N
Mounting Orientation	Vertical
Mechanical Life	15000000Cycles

Omron D4N-2187, D4N Series Rod Limit Switch, NO/NC, IP67, DPST, Plastic Housing, 240V ac ac Max, 10A Max

DOWNLOAD CATALOG

D4N-2187 Selection Guide - Safety Components A700000014068218

D4N-2187 Brochure - Safety Interlock Switches A700000014068375
