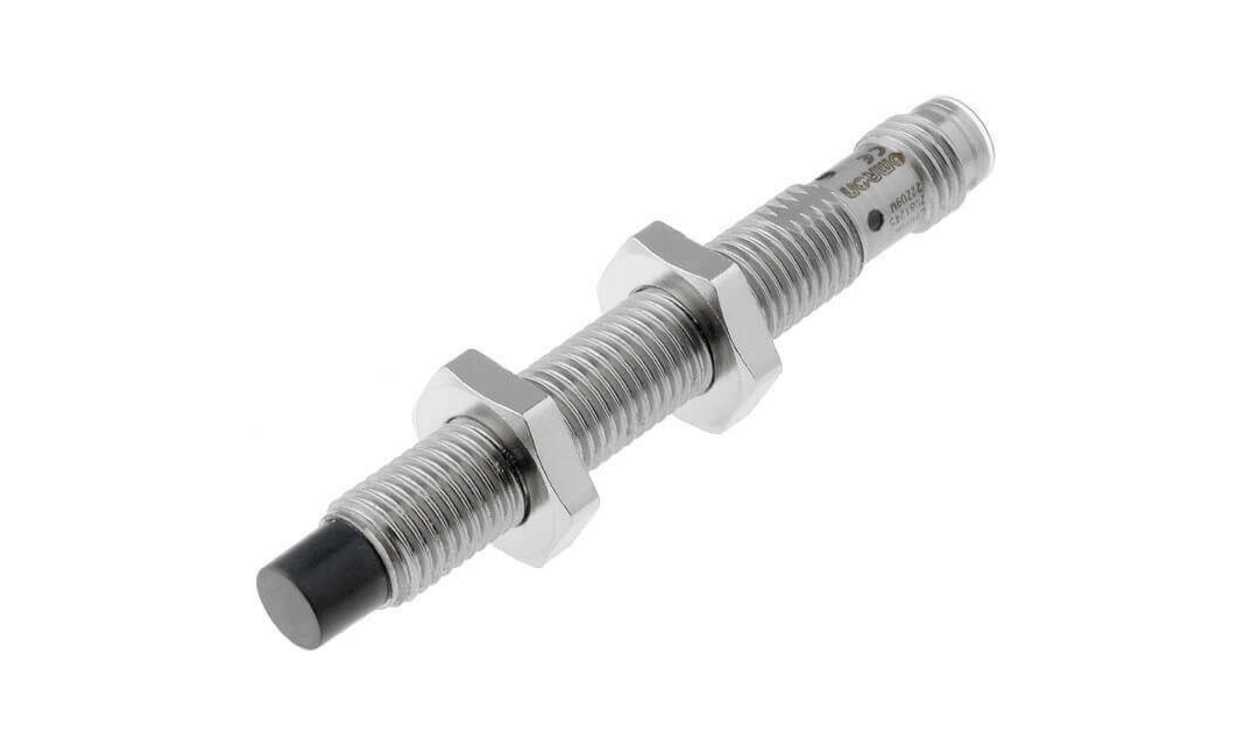

Omron E2A-S08LN04-M5-B1, Inductive Threaded Barrel Proximity Sensor, M8, 4 mm Detection, PNP NO, 12 → 24 V dc
- Detailed Description
- Specifications
- Downloads
Omron E2A Series Proximity Sensor, 12 to 24V DC Supply Voltage, IP67/IP69K - E2A-S08LN04-M5-B1
Features & Benefits
• Maximum operating temperature of +70°C enhances application versatility
• Non-flush mounting allows for effective object detection
Applications
• Automation in conveyor systems
• in harsh industrial environments
• Employed in robotics and material handling
What is the maximum detection range of this sensor?
How does the sensor perform in different temperatures?
What type of output does this sensor provide?
What is the significance of the IP67 and IP69K ratings?
| Brand | Omron |
| Thread Size | M8 |
| Sensor Technology | Inductive |
| Detection Range | 4 mm |
| Body Style | Threaded Barrel |
| Digital Switching Output Type | PNP |
| Output Function | NO |
| Connection Type | M8 |
| Cable Length | 2m |
| Supply Voltage | 12 → 24 V dc |
| IP Rating | IP67, IP69K |
| Length | 61mm |
| Mounting Type | Non-Flush |
| Housing Material | Stainless Steel |
| Maximum DC Voltage | 32V |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +70°C |
| Shielding | Unshielded |
| Switching Current | 200 mA |
| Series | E2A |
