Omron E2AM12KN08WPC12M, Inductive Threaded Barrel Proximity Sensor, M12, 8 mm Detection, NPN NO, 12 → 24 V dc

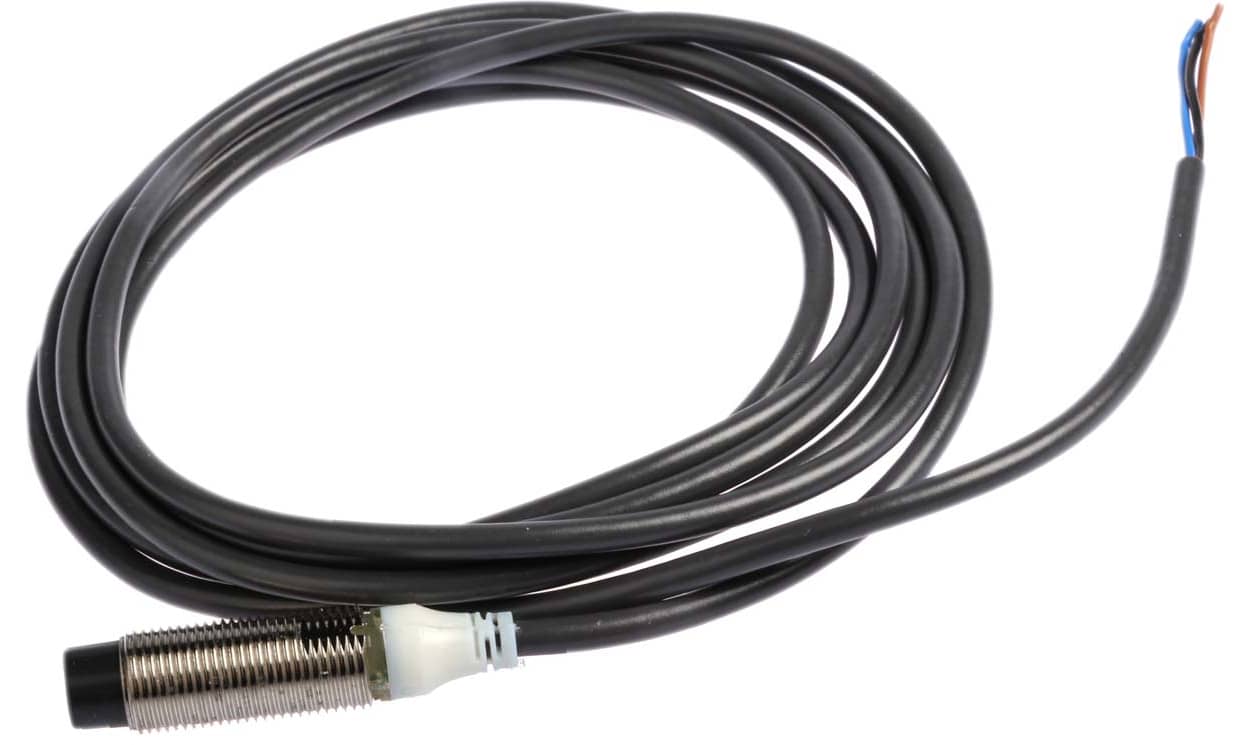

Name: Omron E2AM12KN08WPC12M, Inductive Threaded Barrel Proximity Sensor, M12, 8 mm Detection, NPN NO, 12 → 24 V dc
Brand: OMRON
SKU: E2AM12KN08WPC12M
Availability: OutOfStock

Part Number : E2AM12KN08WPC12M

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron E2A Series Proximity Sensor, NPN Output Type, 8mm Detection Range - E2AM12KN08WPC12M

This proximity sensor is a practical solution for automation in industrial settings. Utilising inductive technology, it detects metal objects without direct contact, offering durability and consistent operation. The sensor has a detection range of 8mm and complies with IP67 standards, ensuring functionality in challenging conditions. Its robust design is suitable for various applications within the electrical and mechanical sectors, making it a significant component of modern sensor technology.

Features & Benefits

• NPN output facilitates versatile connectivity in automation systems
• Compact barrel design optimises installation space
• Non-flush mounting provides stable positioning across different environments
• Brass nickel-plated housing offers corrosion resistance
• High-temperature operation up to 70°C enhances reliability
• Unshielded design reduces interference in open environments

Applications

• Ideal for detecting objects on assembly lines
• Used in automated machinery for position sensing
• Suitable for presence detection in packaging equipment
• Employed in material handling systems for operational efficiency

What is the optimal voltage range for operation?

The sensor operates efficiently within a supply voltage range of 12 to 24V DC.

How to install this sensor correctly?

Ensure secure mounting in a non-flush position, with the detection surface unobstructed.

Can this sensor work in outdoor applications?

While it has an IP67 rating for dust and water resistance, it should be shielded from extreme conditions to prolong lifespan.

How should I maintain the proximity sensor?

Regularly check for dirt or debris around the sensor area and clean as necessary to ensure optimal performance.

What happens if the sensor detects reverse polarity?

The device has reverse polarity protection to prevent damage, ensuring user safety and dependability.

Brand	Omron
Thread Size	M12
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	8 mm
Output Function	NO
Digital Switching Output Type	NPN
Cable Length	2m
Connection Type	Pre-Cabled
Supply Voltage	12 → 24 V dc
Length	50mm
IP Rating	IP67
Mounting Type	Non-Flush
Housing Material	Brass Nickel Plated
Maximum DC Voltage	32V
Minimum Operating Temperature	-40°C
Switching Frequency	800 Hz
Maximum Operating Temperature	+70°C
Maximum Switching Frequency	800Hz
Reverse Polarity Protection	Yes

Omron E2AM12KN08WPC12M, Inductive Threaded Barrel Proximity Sensor, M12, 8 mm Detection, NPN NO, 12 → 24 V dc

DOWNLOAD CATALOG

E2AM12KN08WPC12M Datasheet 0900766b814288a6
