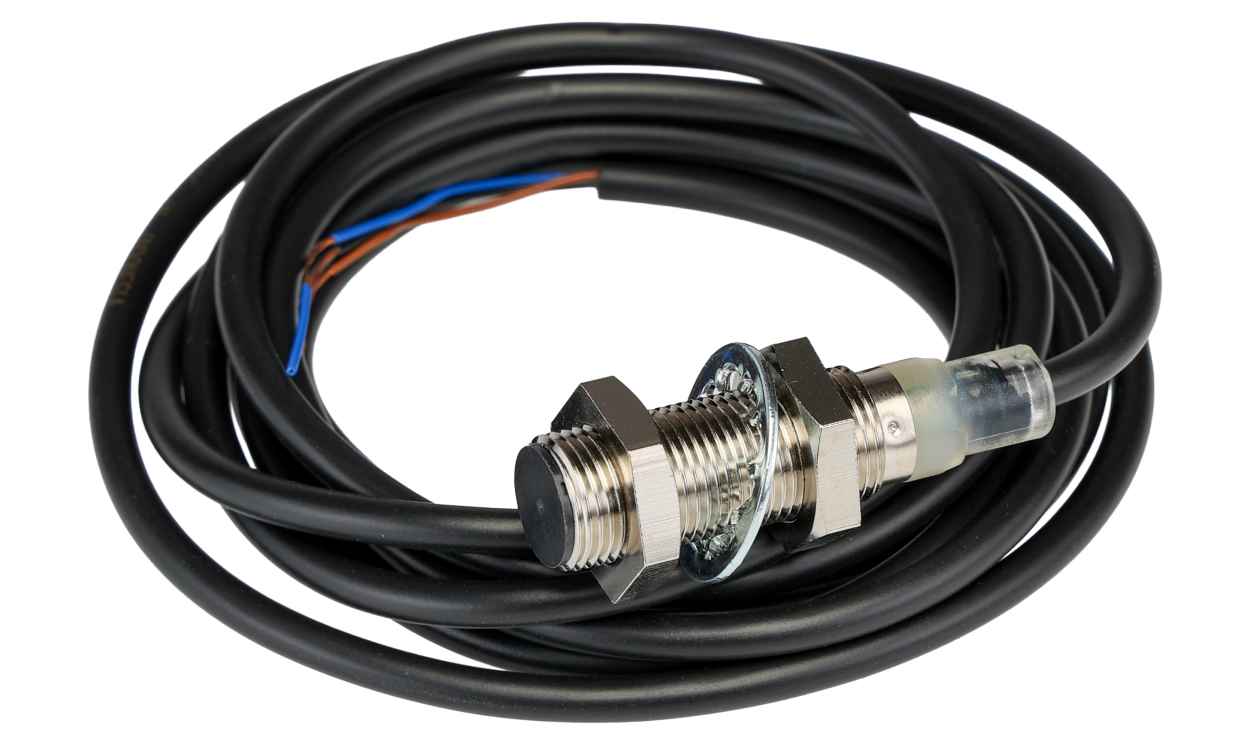

Omron E2B-M12KS04-WP-C2 2M, Inductive Threaded Barrel Proximity Sensor, M12, 4 mm Detection, NPN NC, 12 → 24 V dc

Name: Omron E2B-M12KS04-WP-C2 2M, Inductive Threaded Barrel Proximity Sensor, M12, 4 mm Detection, NPN NC, 12 → 24 V dc
Brand: OMRON
SKU: E2B-M12KS04-WP-C2 2M
Availability: OutOfStock

Part Number : E2B-M12KS04-WP-C2 2M

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron E2B Series Proximity Sensor, 4mm Detection Range, 2m Cable Length - E2B-M12KS04-WP-C2 2M

This proximity sensor is an inductive sensor designed for automation and industrial applications. Featuring a threaded barrel construction, it measures 47mm in length and offers a detection range of 4mm. With an IP67 rating, this pre-cabled sensor ensures optimal performance in challenging environments, making it suitable for various applications in the electrical and mechanical industries.

Features & Benefits

• Detects presence within a 4mm range for reliable object detection
• NPN output functionality facilitates direct integration with control systems
• Quasi-flush mount design allows for versatile installation options
• Shielded design minimises interference and enhances operational stability

Applications

• Used for sensing metal parts in assembly lines
• Effective in packaging machinery for object detection
• Ideal for position feedback in conveyor systems
• Utilised in robotics for proximity sensing and navigation

How does the sensor handle varying ambient temperatures in operations?

The device can operate effectively in temperatures ranging from -25°C to +70°C, making it suitable for diverse industrial conditions.

What type of load can be connected to this sensor?

It can control a load current of up to 200mA at a maximum voltage of 30V DC, accommodating various applications.

Can the sensor withstand exposure to harsh environmental elements?

With an IP67 rating, it is designed to resist dust and moisture, ensuring longevity and reliability in demanding settings.

What wiring method is supported for the sensor installation?

It supports pre-wired connections with standard PVC cables, making installation straightforward and efficient.

Brand	Omron
Thread Size	M12
Sensor Technology	Inductive
Detection Range	4 mm
Body Style	Threaded Barrel
Output Function	NC
Digital Switching Output Type	NPN
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	12 → 24 V dc
Length	30mm
IP Rating	IP67
Mounting Type	Flush
Housing Material	Brass
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+70°C
Short Circuit Overload Protection	Yes
Switching Current	200 mA
Switching Frequency	1 kHz

Omron E2B-M12KS04-WP-C2 2M, Inductive Threaded Barrel Proximity Sensor, M12, 4 mm Detection, NPN NC, 12 → 24 V dc

DOWNLOAD CATALOG

E2B-M12KS04-WP-C2 2M Instruction Sheet - E2B-M12KS04-WP-C2 2M A700000014360543
