Omron E2B-M18KN16-M1-B2, Inductive Threaded Barrel Proximity Sensor, M18, 16 mm Detection, PNP NC, 12 → 24 V dc

Name: Omron E2B-M18KN16-M1-B2, Inductive Threaded Barrel Proximity Sensor, M18, 16 mm Detection, PNP NC, 12 → 24 V dc
Brand: OMRON
SKU: E2B-M18KN16-M1-B2
Availability: OutOfStock

Part Number : E2B-M18KN16-M1-B2

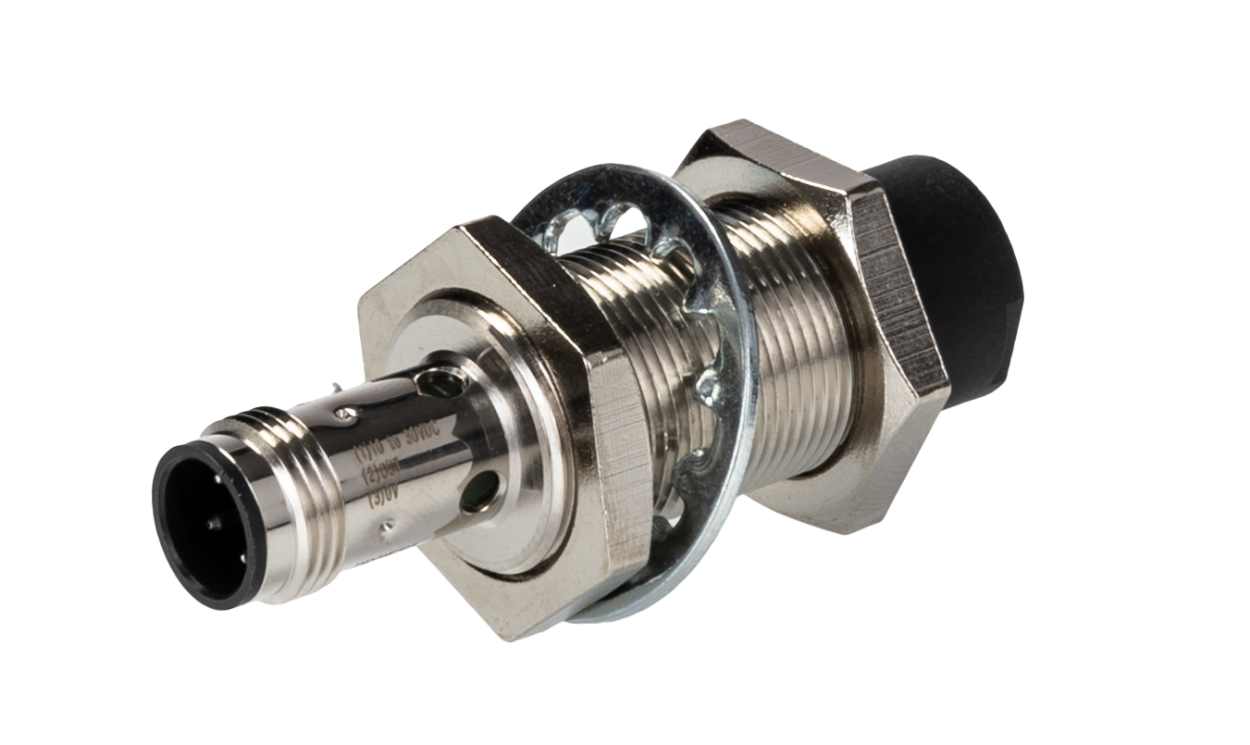

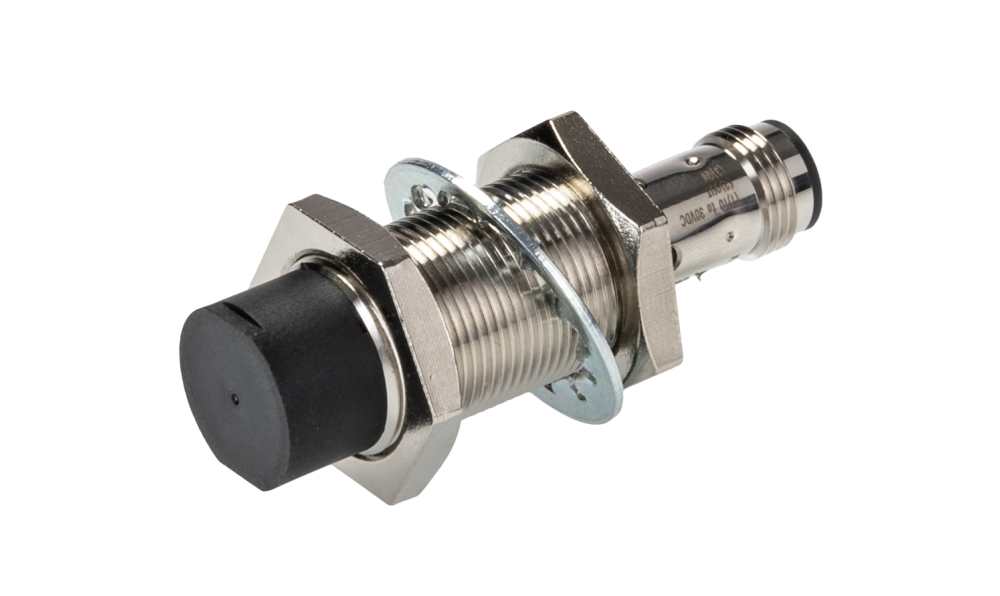

Proximity sensor, LITE, inductive, nickel-brass, short body, M18, unshielded, 16 mm, DC, 3-wire, PNP-NC, M12 plug-in

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

Omron E2B Series Proximity Sensor, 16mm Detection Range, IP67 - E2B-M18KN16-M1-B2

This proximity sensor is engineered for accurate detection in a variety of automation applications, employing inductive technology to recognise objects without physical contact. Its sturdy construction and compact form factor make it adaptable for different industrial settings, offering both durability and efficiency. The sensor serves those in electronics, automation, and mechanical systems, ensuring a smooth operational process.

Features & Benefits

• Inductive technology enables non-contact sensing of metallic objects
• M18 threaded design facilitates easy installation across various Applications
• IP67 rating safeguards against dust and moisture ingress
• PNP digital output supports efficient signal transmission
• Operating temperatures range from -25 to +70°C for flexible deployment
• Integrated short circuit and reverse polarity protection enhances safety

Applications

• Utilised for object detection in automated machinery
• Suitable for presence sensing in conveyor systems
• Applicable in robotics and assembly lines
• Recommended for packaging and material handling
• Effective in harsh industrial conditions due to robust housing

Can it be installed in tight spaces?

Yes, the compact design allows for installation in confined areas.

What type of load can the output handle?

The output can manage a switching current of up to 200mA.

Is it compatible with sensors in a similar format?

Yes, it is compatible with other M18 threaded sensors for straightforward integration.

How does the reverse polarity protection work?

The built-in feature prevents damage if the supply voltage is connected incorrectly.

Brand	Omron
Thread Size	M18
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	16 mm
Output Function	NC
Digital Switching Output Type	PNP
Connection Type	M12
Supply Voltage	12 → 24 V dc
IP Rating	IP67
Length	39mm
Mounting Type	Non-Flush
Housing Material	Brass
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Shielding	Unshielded
Maximum Switching Frequency	400Hz
Reverse Polarity Protection	Yes
Switching Frequency	400 Hz
Series	E2B

Proximity sensor, LITE, inductive, nickel-brass, short body, M18, unshielded, 16 mm, DC, 3-wire, PNP-NC, M12 plug-in
