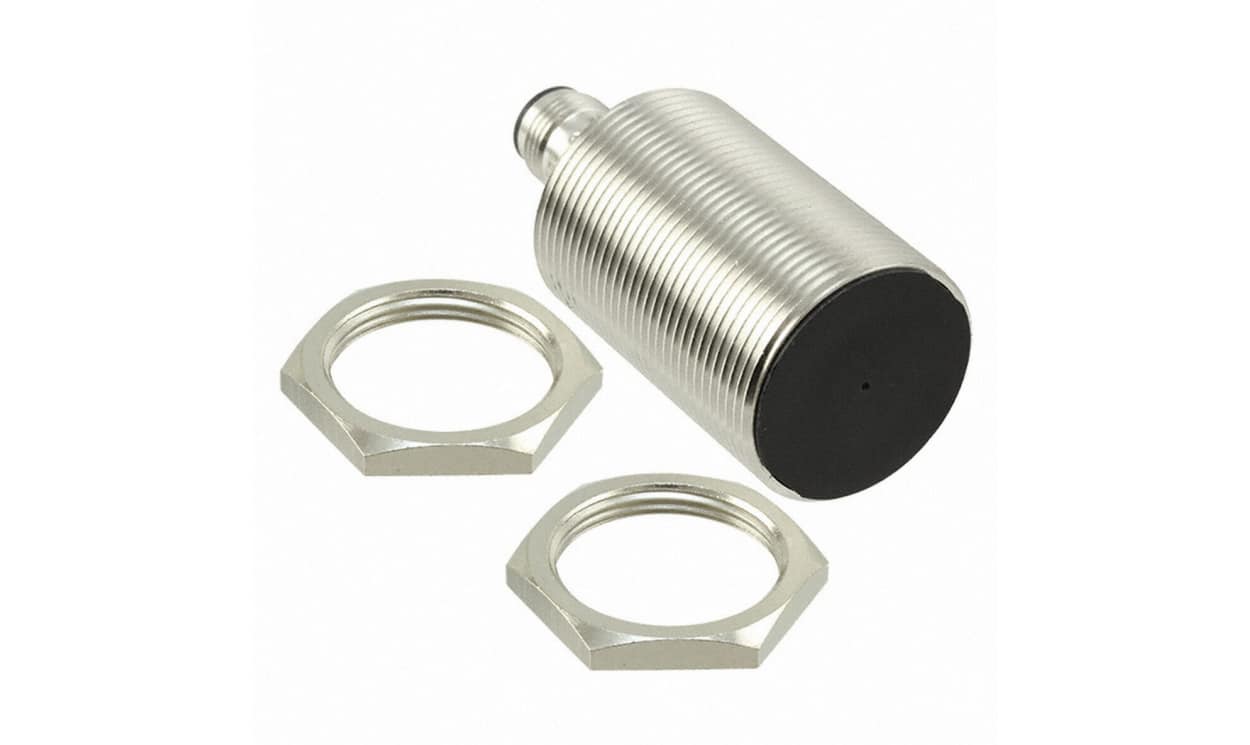

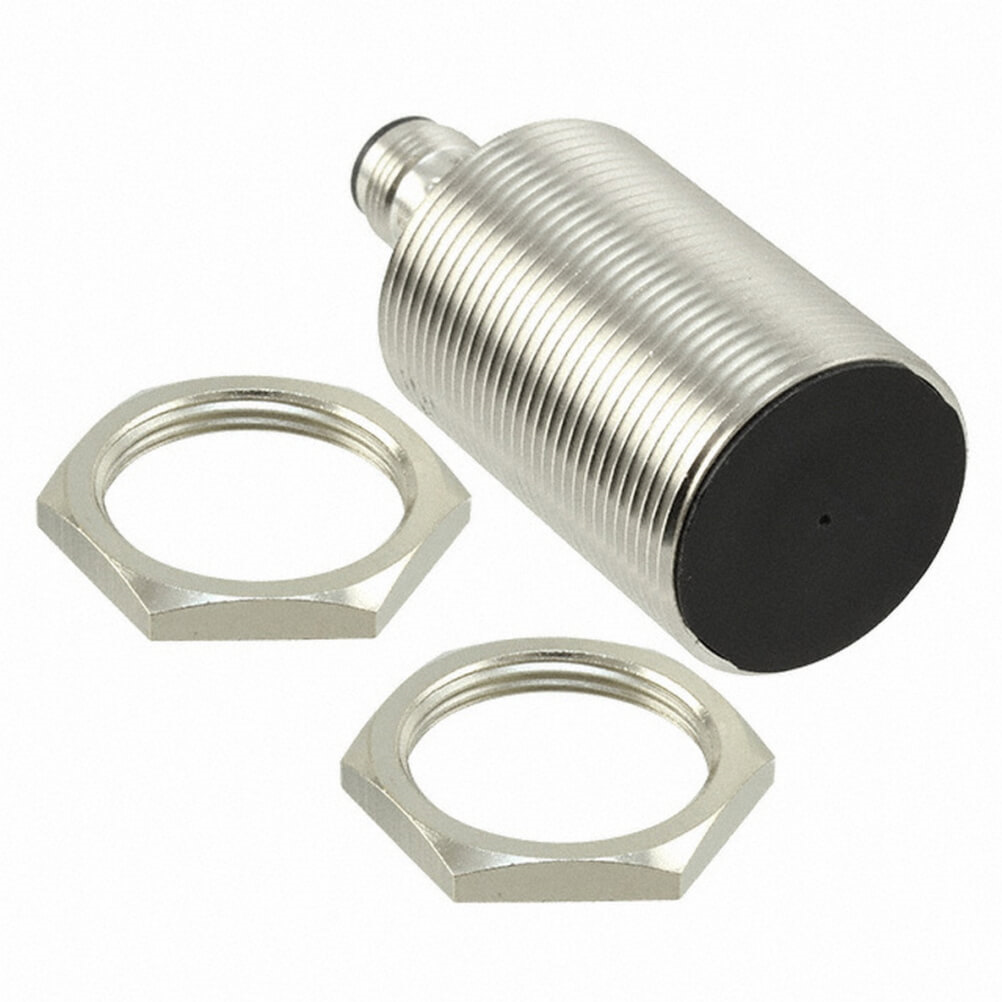

OMRON E2B-M30KS15-M1-B1 | Inductive Threaded Barrel Proximity Sensor | M30, 15 mm, PNP NO, M12 Connector

Name: OMRON E2B-M30KS15-M1-B1 | Inductive Threaded Barrel Proximity Sensor | M30, 15 mm, PNP NO, M12 Connector
Brand: OMRON
SKU: E2B-M30KS15-M1-B1
Availability: OutOfStock

Part Number : E2B-M30KS15-M1-B1

With a sensing distance of 15 mm, the OMRON E2B-M30KS15-M1-B1 is an inductive threaded-barrel proximity sensor in an M30 housing. This version has a PNP normally open (NO) output and an M12 plug-in connector. It is listed as a LITE model.

Type: DC, 3-wire
Supply voltage: 10 to 30 V DC
Mounting: quasi-flush
Switching frequency: 250 Hz
Housing length: 64 mm (short body)
Housing material: nickel-plated brass

Availability: in stock

Detailed Description
Specifications
Features
Downloads

Omron Series E2B Proximity Sensor, 15mm Detection Range, 250 Hz Switching Frequency - E2B-M30KS15-M1-B1

This proximity sensor is a type of inductive sensor designed for automation applications, featuring a detection range of 15mm. The M30 sensor is housed in a robust nickel-plated brass casing that enhances durability, making it well-suited for various industrial environments. It operates with a supply voltage of 10 to 30 V DC and has an IP67 rating for protection against dust and water ingress.

Features & Benefits

• Offers a detection range of 15mm for precise sensing
• Quasi-flush mounting design allows easy integration
• Short-circuit protection ensures safety during operation
• Indicator LED provides clear operational status visibility
• Rated for a wide operating temperature of -25 to +70 °C

Applications

• Used in automated manufacturing for object detection
• Used in packaging machinery for product positioning
• Suitable for conveyor systems to monitor item presence
• Utilised in robotics for proximity sensing tasks

What is the significance of the PNP output type?

The PNP output type allows for easy integration with a variety of control systems, providing a standardised response signal in automation processes. This ensures compatibility and simplifies wiring.

How does the IP67 rating impact usability?

The IP67 rating indicates that the sensor is fully protected against dust and can withstand immersion in water up to 1 metre for a short duration, enhancing reliability in various operational environments.

What are the benefits of using this type of sensor in automation?

This sensor enhances automation by providing precise object detection, reducing errors in manufacturing processes, and ensuring reliable operation in challenging conditions, ultimately improving productivity.

What is the operational frequency of this sensor?

The sensor has a maximum switching frequency of up to 250Hz, which enables it to react quickly to changes in the sensing area, making it suitable for high-speed applications.

Brand	Omron
Thread Size	M30
Sensor Technology	Inductive
Detection Range	15 mm
Body Style	Threaded Barrel
Digital Switching Output Type	PNP
Output Function	NO
Connection Type	M12
Supply Voltage	10 → 30 V dc
IP Rating	IP67
Length	64mm
Mounting Type	Quasi-Flush
Width	36mm
Housing Material	Nickel Plated Brass
Maximum DC Voltage	30V
Diameter	27.8 mm
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+70°C
Maximum Switching Frequency	250Hz
Shielding	Quasi-Shielded

Proximity sensor, LITE, inductive, nickel-brass, short body, M30, shielded, 15 mm, DC, 3-wire, PNP-NO, M12 plug-in

OMRON E2B-M30KS15-M1-B1 | Inductive Threaded Barrel Proximity Sensor | M30, 15 mm, PNP NO, M12 Connector

DOWNLOAD CATALOG

E2B-M30KS15-M1-B1 Brochure - Inductive Proximity Sensors A700000013470363

E2B-M30KS15-M1-B1 Instruction Sheet - E2B Series A700000013470647
