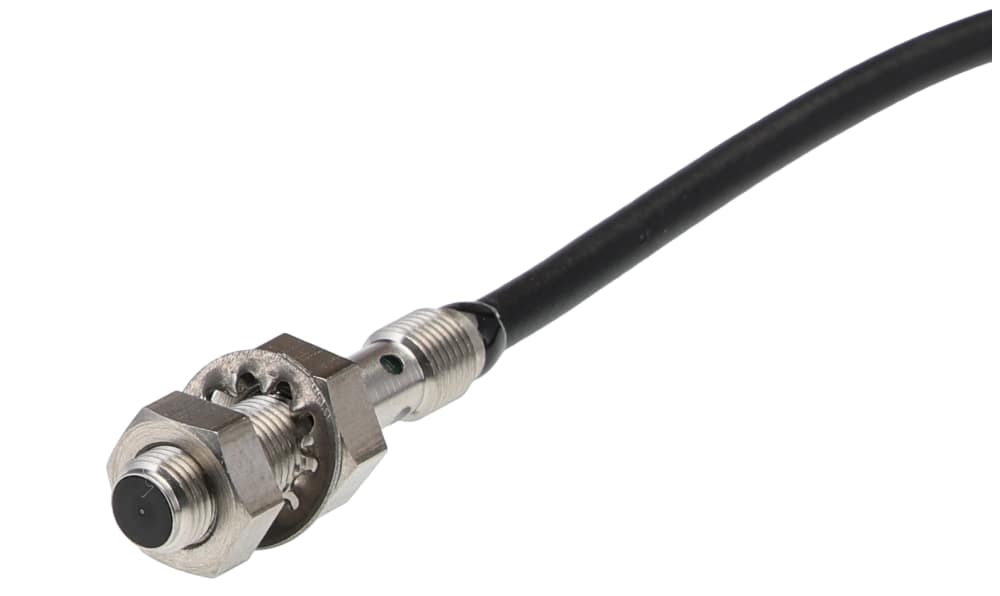

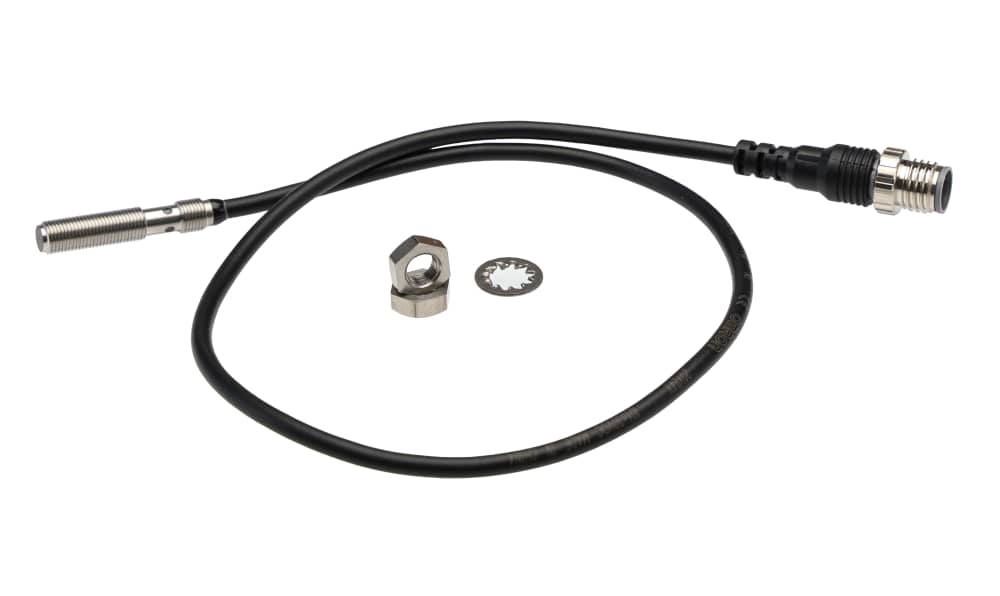

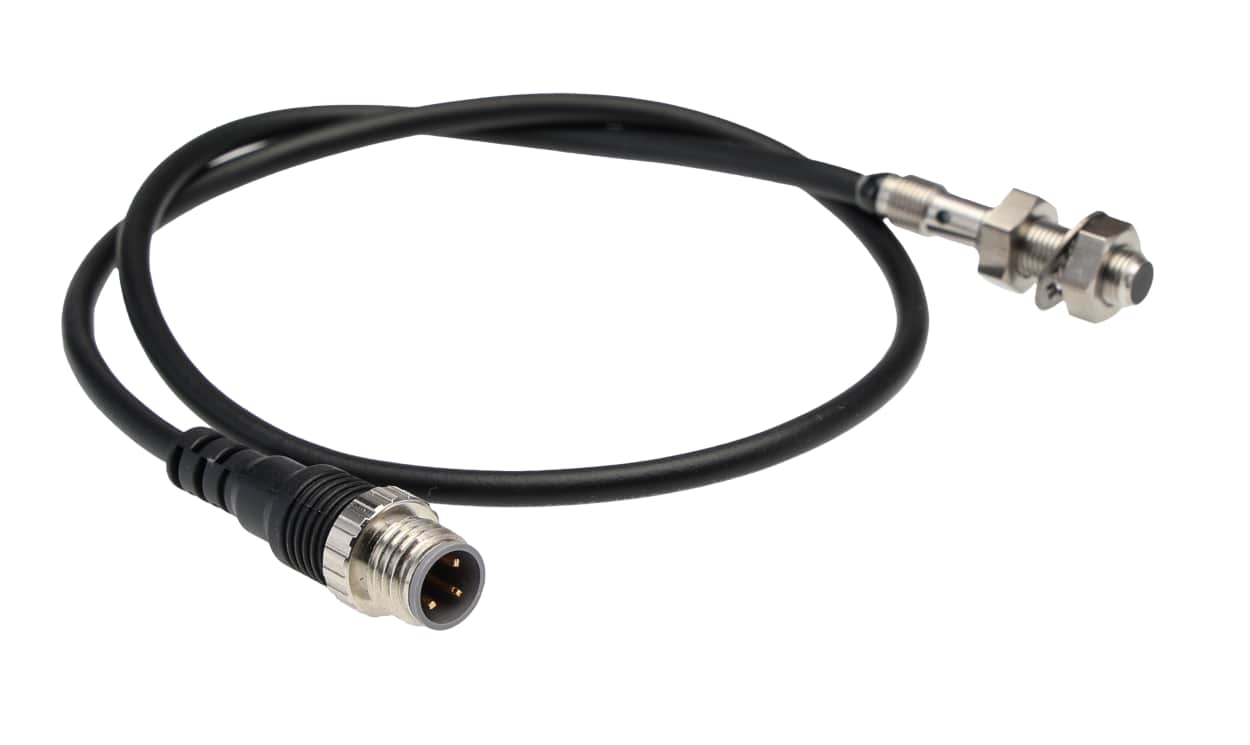

Omron E2E-S05S12-CJ-B1 0.3M, Inductive Threaded Barrel Proximity Sensor, M5, 1.2 mm Detection, PNP NO, 10 → 30 V dc

Name: Omron E2E-S05S12-CJ-B1 0.3M, Inductive Threaded Barrel Proximity Sensor, M5, 1.2 mm Detection, PNP NO, 10 → 30 V dc
Brand: OMRON
SKU: E2E-S05S12-CJ-B1 0.3M
Availability: OutOfStock

Part Number : E2E-S05S12-CJ-B1 0.3M

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron E2E Series Proximity Sensor, 1.2mm Detection Range, 0.3m Cable Length - E2E-S05S12-CJ-B10.3M

This proximity sensor is an inductive type, designed for seamless integration in automation systems. Boasting a detection range of 1.2mm, the sensor features a compact M5 threaded body style crafted from stainless steel. With an IP67 rating, it excels in providing reliable performance in challenging environments, making it ideal for various industrial applications.

Features & Benefits

• High-speed response frequency of up to 4kHz allows for precise detection
• PNP output configuration supports versatile integration
• Flush mount design simplifies installation in tight spaces
• Durable stainless-steel housing ensures longevity in adverse conditions
• Low operating temperature range from -25°C to +70°C enhances reliability
• Compact size facilitates installation in constrained areas

Applications

• Utilised in manufacturing automation processes for object detection
• Suitable for use in conveyor systems to monitor part presence
• Employed in robotics for accurate position sensing
• Ideal for requiring non-contact measurements in electrical systems

What is the significance of the IP67 rating for this sensor?

The IP67 rating signifies that the sensor is dust-tight and can withstand immersion in water up to 1 metre for a duration of up to 30 minutes, ensuring protection against environmental factors that could affect performance.

How does the PNP output function improve compatibility with control systems?

The PNP output enables easy integration with PLCs and other control systems that require positive voltage switching, simplifying wiring and ensuring reliable operation.

Can this sensor be used in high-frequency applications?

Yes, the sensor's maximum response frequency of 4kHz makes it suitable for high-frequency applications, allowing for precise detection of rapidly moving objects.

What are the advantages of a stainless steel housing in this application?

The stainless steel housing provides enhanced resistance to corrosion and mechanical damage, ensuring durability and longevity even in harsh industrial environments.

How does the compact design benefit installation?

The compact design allows for installation in tight spaces, making it a versatile option for various applications, especially where space is limited or when flush mounting is required.

Brand	Omron
Thread Size	M5
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	1.2 mm
Digital Switching Output Type	PNP
Output Function	NO

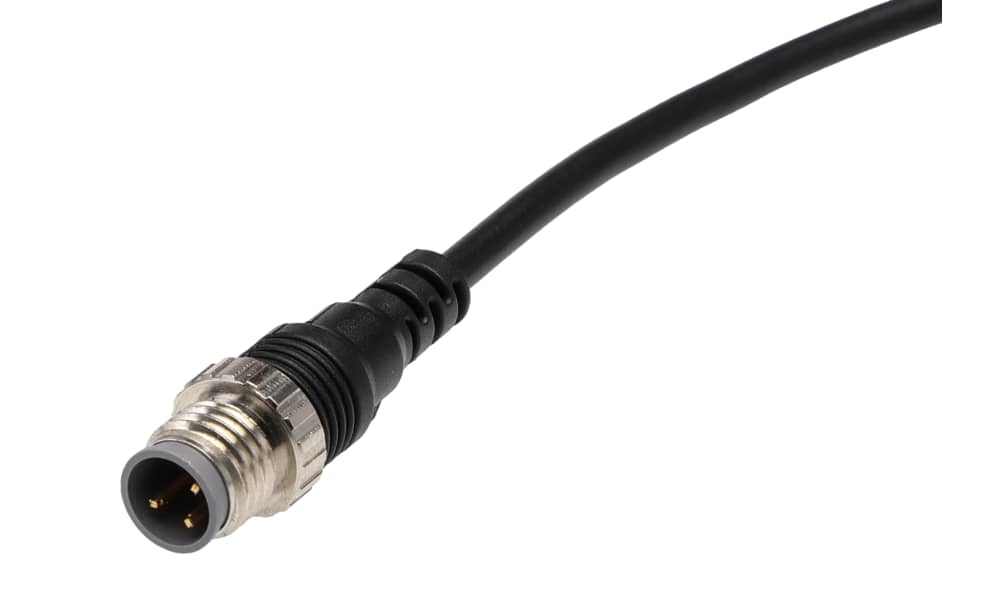

Connection Type	M8
Cable Length	300mm
Supply Voltage	10 → 30 V dc
IP Rating	IP67
Length	25mm
Mounting Type	Flush
Housing Material	Stainless Steel
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Switching Current	100 mA
Switching Frequency	4 kHz
Series	E2E
Maximum Operating Temperature	+70°C
