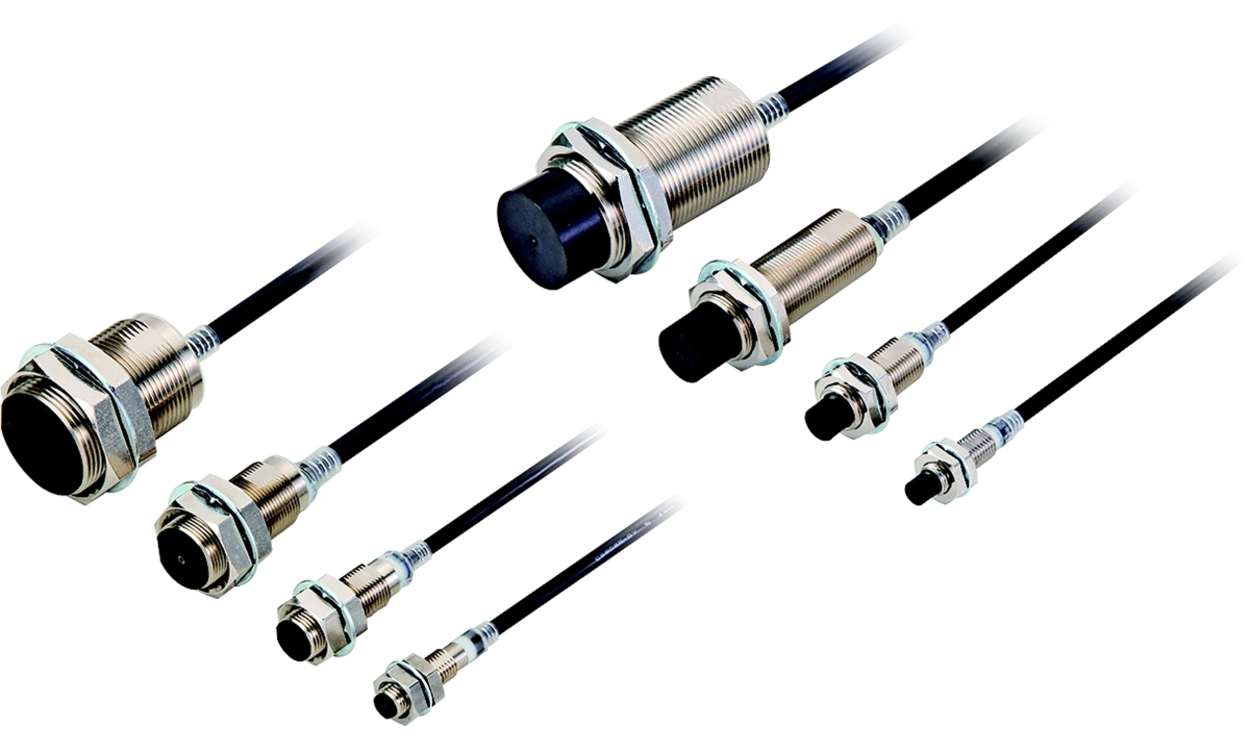

Omron E2E-X10MD212-T 2M, Inductive Threaded Barrel Proximity Sensor, M12, 10 mm Detection, 2-Wire NC, 10 → 30 V dc

Part Number : E2E-X10MD212-T 2M

Availability: Sold out

Detailed Description
Specifications

Proximity sensors with longer sensing distance require increased sensitivity. However, with the increased sensitivity, temperature changes will have bigger influence in sensing distance. E2E NEXT Proximity Sensors use "Thermal Distance Control": long-distance and stable detection technology, newly developed by OMRON."Thermal Distance Control" with "PROX2" write temperature correction values externally when shipped and minimize the sensing distance changes due to temperature changes, which could not be done by the conventional analog IC.

With high-brightness LED the indicator is visible anywhere from 360°.
Only 10 Seconds to Replace a Proximity Sensor with the ″e-jig″ (Mounting Sleeve).
Cables with enhanced oil resistance enabled 2-year oil resistance

Brand	Omron
Thread Size	M12
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	10 mm
Digital Switching Output Type	2-Wire
Output Function	NC
Cable Length	2m
Connection Type	Pre-Cabled
Supply Voltage	10 → 30 V dc
Length	47.1mm
IP Rating	IP67
Mounting Type	Non-Flush
Width	21mm
Housing Material	Brass
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Depth	21mm
Short Circuit Overload Protection	Yes
Switching Frequency	200 Hz
