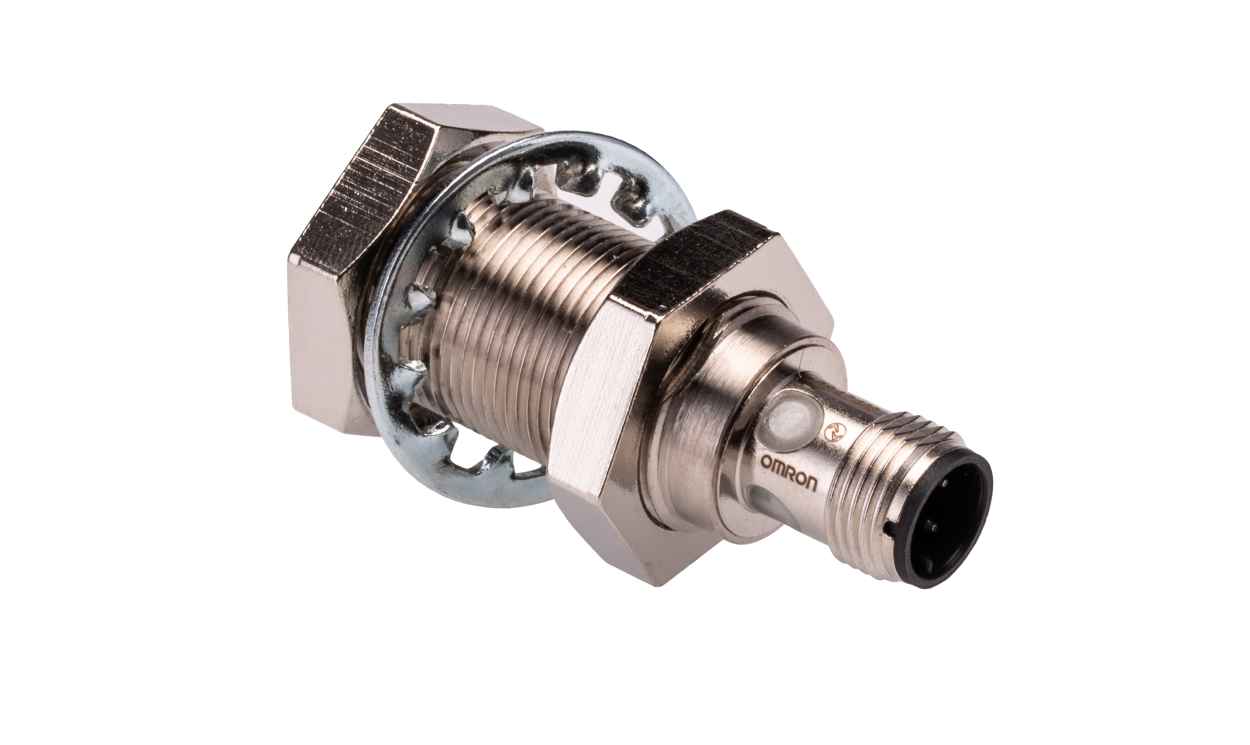

OMRON E2E-X12B1T18-M1 | Threaded Inductive Proximity Sensor | M18, 12 mm Sensing, PNP NO

Name: OMRON E2E-X12B1T18-M1 | Threaded Inductive Proximity Sensor | M18, 12 mm Sensing, PNP NO
Brand: OMRON
SKU: E2E-X12B1T18-M1
Availability: OutOfStock

Part Number : E2E-X12B1T18-M1

OMRON E2E-X12B1T18-M1: 12 mm sensing distance, a PNP normally open output and an M12 connector, built as an M18 threaded inductive proximity sensor. The E2E-X12B1T18-M1 runs on 10 to 30 V DC and is rated IP67, IP67G, IP69K.

12 mm sensing distance, M18 thread
Output: PNP NO, switching current 16 mA
10 to 30 V DC supply; connection: M12 connector
IP67, IP67G, IP69K rated, minimum operating temperature -25 °C
Quasi-flush mounting, E2E-NEXT series
Brass housing, length 53 mm, short-circuit/overload protection; standards: IEC 60529

Availability: in stock

Detailed Description
Specifications
Downloads

Omron E2E-NEXT Series Proximity Sensor, 10 to 30V DC Supply Voltage, IP67/IP67G/IP69K - E2E-X12B1T18-M1

This proximity sensor features inductive technology for precise detection in various industrial settings. It identifies metal objects within a 12mm range, enhancing automation capabilities. The robust design and functionality make it vital for professionals in the automation, electrical, and mechanical industries.

Features & Benefits

• PNP output facilitates easy integration with automation systems
• IP67 rated for resistance to dust and moisture
• Supports IO-Link communication for advanced connectivity

Applications

• Detects metal components on assembly lines
• Suitable for automation within machinery and equipment
• Ideal for monitoring conveyor systems in manufacturing processes

What is the operational voltage range?

The operational voltage ranges from 10 to 30V DC, providing flexibility in various setups.

How can this sensor be mounted in equipment?

It offers a quasi-flush mounting option for seamless integration into existing systems.

What protection features does it include?

It includes reverse polarity and short-circuit overload protection for safe operation under adverse conditions.

What is the maximum switching frequency?

The sensor can operate at a maximum switching frequency of 500Hz, making it suitable for high-speed applications.

Brand	Omron
Thread Size	M18
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	12 mm
Output Function	NO
Digital Switching Output Type	PNP
Connection Type	M12
Supply Voltage	10 → 30 V dc
IP Rating	IP67, IP67G, IP69K
Length	53mm
Mounting Type	Quasi-Flush
Width	18mm
Housing Material	Brass
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Series	E2E-NEXT
Standards Met	IEC 60529
Switching Current	16 mA
Short Circuit Overload Protection	Yes

OMRON E2E-X12B1T18-M1 | Threaded Inductive Proximity Sensor | M18, 12 mm Sensing, PNP NO

DOWNLOAD CATALOG

E2E-X12B1T18-M1 Brochure - IO-Link Series A700000012779126
