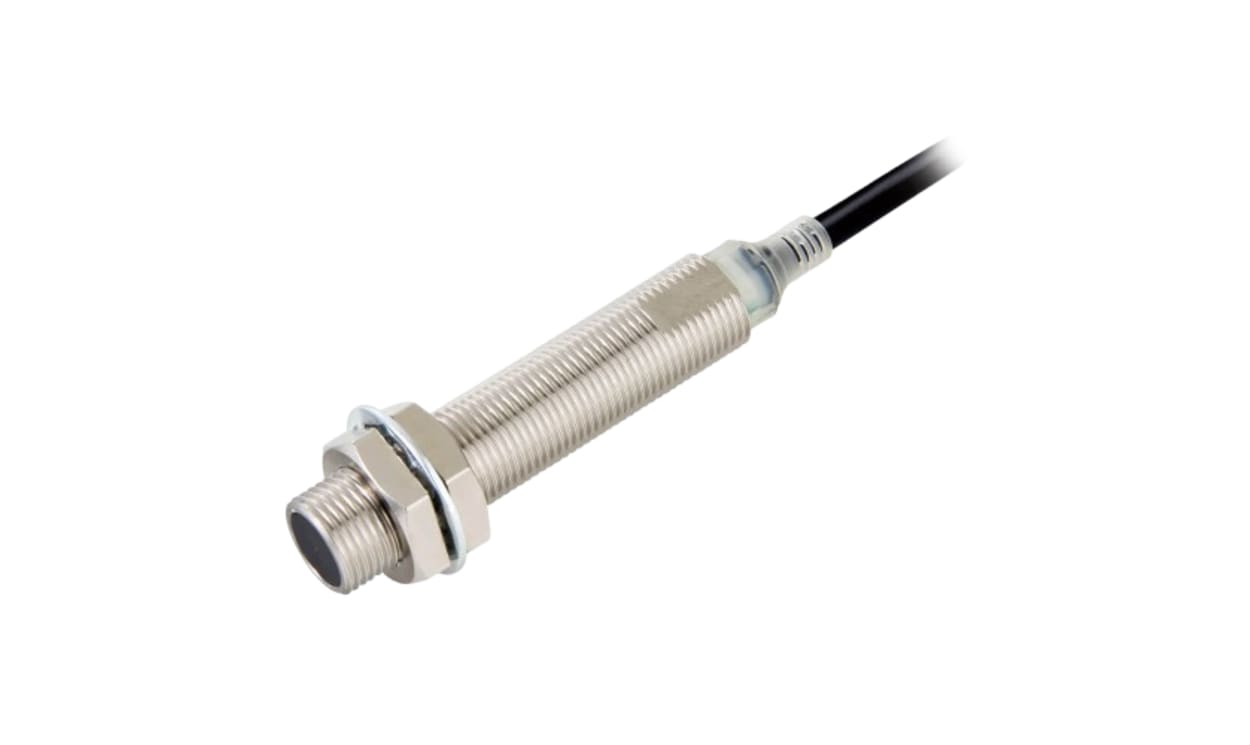

OMRON E2E-X4B1TL12 5M | Inductive Proximity Sensor | M12, 4 mm Range, PNP NO

Name: OMRON E2E-X4B1TL12 5M | Inductive Proximity Sensor | M12, 4 mm Range, PNP NO
Brand: OMRON
SKU: E2E-X4B1TL12 5M
Availability: OutOfStock

Part Number : E2E-X4B1TL12 5M

Featuring a 5 m pre-wired cable, a 4 mm detection range, a PNP normally open (NO) output and 10 to 30 V DC operation, the OMRON E2E-X4B1TL12 5M is an M12 inductive proximity sensor.

Sensing distance 4 mm; quasi-flush mounting (quasi-shielded)
Connection: 5 m cable
Switching frequency 1 kHz, switching current 200 mA
Ingress protection: IP67, IP67G, IP69K
Output: PNP NO
Operating voltage 10 to 30 V DC

Availability: in stock

Detailed Description
Specifications
Downloads

Omron E2E-NEXT Series Proximity Sensor, 4mm Detection Range, M12 Threaded size - E2E-X4B1TL12 5M

This inductive proximity sensor is designed for high performance in various industrial applications. It features a compact M12 threaded barrel design, with a detection range of 4mm and a comprehensive cable length of 5m. With its robust construction and IP67 rating, it is well-suited for demanding environments.

Features & Benefits

• Compact M12 design enables easy integration into systems
• Inductive technology provides reliable detection of metallic objects
• PNP output allows versatile control options for automation
• Quasi-flush mounting reduces installation constraints
• High-temperature resilience supports a wide operating range

Applications

• Ideal for automation in manufacturing processes
• Used in assembly lines for position sensing
• Suitable for detecting presence in robotic
• Effective in harsh environments, including machining areas
• Utilised for proximity detection in conveyor systems

What is the significance of the IP67 rating for this product?

The IP67 rating indicates excellent protection against dust and immersion in water, ensuring reliable operation in challenging conditions and extending the sensor's lifespan.

How does the IO-Link feature enhance the sensor's functionality?

IO-Link enables real-time communication and diagnostics, allowing users to monitor sensor performance, modify settings remotely, and streamline maintenance procedures.

Can this proximity sensor be used in high-temperature settings?

Yes, it operates effectively within a temperature range of -25°C to +70°C, making it suitable for various industrial heat conditions.

What are the advantages of using a PNP output configuration?

PNP output configuration allows for sinking current to ground, providing compatibility with many automation systems, simplifying wiring and integration.

How can I ensure proper installation of the proximity sensor?

Follow the specified mounting guidelines, maintaining the required distances from surrounding metal, and ensure to use the correct tightening torque to avoid damaging the sensor during installation.

Brand	Omron
Thread Size	M12
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	4 mm
Digital Switching Output Type	PNP
Output Function	NO
Connection Type	Pre-Cabled
Cable Length	5m
Supply Voltage	10 → 30 V dc
IP Rating	IP67, IP67G, IP69K
Length	69.1mm
Mounting Type	Quasi-Flush
Maximum DC Voltage	30V
Diameter	M12
Minimum Operating Temperature	-25°C
Series	E2E-NEXT
Shielding	Quasi-Shielded
Maximum Switching Frequency	1kHz
Switching Current	200 mA
