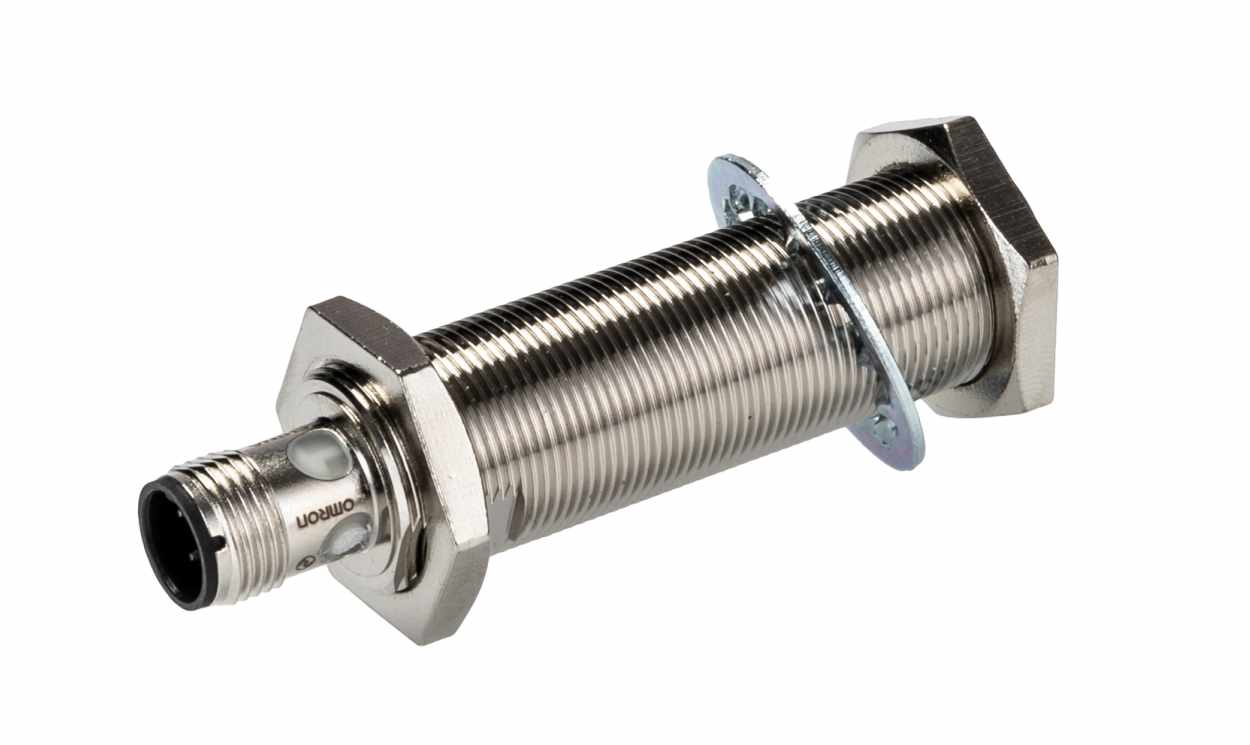

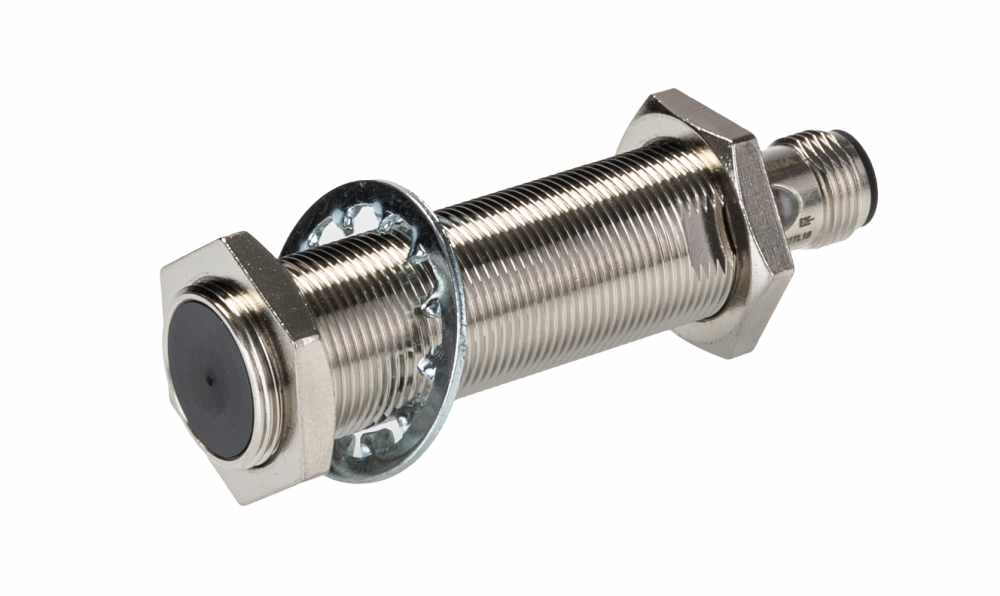

OMRON E2E-X8B1TL18-M1 | M18 Inductive Proximity Sensor | 8 mm Range, PNP NO, M12 Connector

Name: OMRON E2E-X8B1TL18-M1 | M18 Inductive Proximity Sensor | 8 mm Range, PNP NO, M12 Connector
Brand: OMRON
SKU: E2E-X8B1TL18-M1
Availability: OutOfStock

Part Number : E2E-X8B1TL18-M1

The OMRON E2E-X8B1TL18-M1 is an M18 inductive proximity sensor with an 8 mm sensing distance, a PNP normally open (NO) output and an M12 connector. Power the E2E-X8B1TL18-M1 from 10 to 30 V DC; ingress protection is IP67, IP67G, IP69K and the body is 77.3 mm long.

Quasi-flush mounting
Minimum operating temperature: -25 °C
Long-body version
Housing material: brass
IO-Link (COM3), 3-wire DC
OMRON E2E-NEXT series

Availability: in stock

Detailed Description
Specifications
Features
Downloads

Omron E2E-NEXT Series Proximity Sensor, 8mm Detection Range, IP67/IP67G/IP69K - E2E-X8B1TL18-M1

This proximity sensor employs inductive technology, suitable for detecting metallic objects at a distance of 8mm. Its sturdy brass housing enhances its durability in diverse industrial settings. With an IP67 rating, it is protected against dust and water, making it apt for demanding conditions. Users in automation and electronics will find its digital switching output beneficial for straightforward integration into control systems.

Features & Benefits

• Compact design for flexible installation in limited spaces
• Inductive sensing technology reduces wear from mechanical contact
• IP67 rated for dependable operation in tough environments
• Compatibility with IO-Link for enhanced communication capabilities
• PNP output facilitates seamless integration with existing systems
• Operates efficiently across an extensive temperature range

Applications

• Object detection in automated machinery
• Position sensing in packaging lines
• Detection of metal parts in assembly processes
• Proximity feedback in robotics

How is it installed in my existing setup?

Integration is straightforward using standard M12 connectors, ensuring compatibility with most systems.

Can it work in extreme temperatures?

Yes, it functions effectively within a temperature range of -25 to +70°C.

What are the benefits of using the PNP output?

The PNP output offers a quick response time and high switching capacity, promoting efficient system operation.

Brand	Omron
Thread Size	M18
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	8 mm
Digital Switching Output Type	PNP
Output Function	NO
Connection Type	M12
Supply Voltage	10 → 30 V dc
Length	77.3mm
IP Rating	IP67, IP67G, IP69K
Mounting Type	Quasi-Flush
Width	18mm
Housing Material	Brass
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Series	E2E-NEXT
Switching Frequency	500 Hz
Depth	24mm
Shielding	Shielded

Proximity sensor, inductive, nickel-brass long body, M18, shielded, 8 mm, DC, 3-wire, PNP NO, IO-Link COM3, M12 connector
