Omron E2E-X8MB1TL12 2M, Inductive Threaded Barrel Proximity Sensor, M12, 8 mm Detection, PNP NO, 10 → 30 V dc

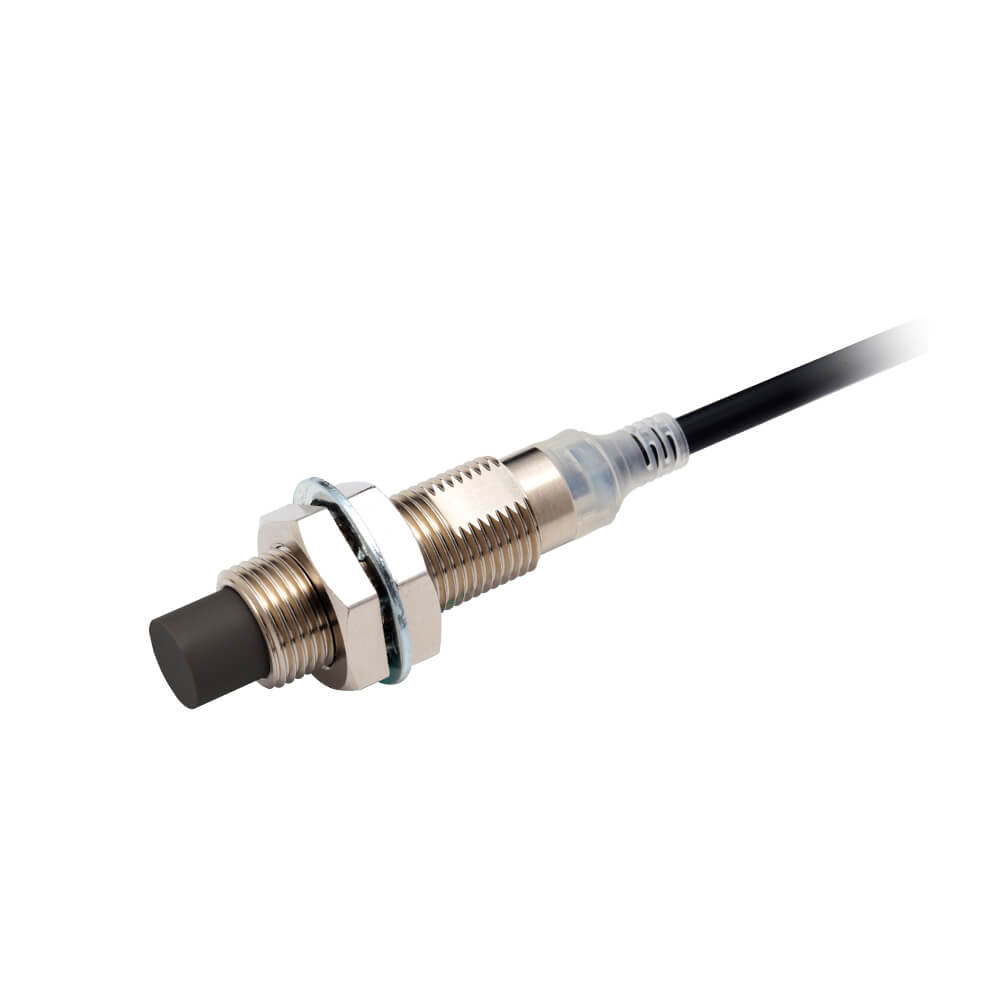

Name: Omron E2E-X8MB1TL12 2M, Inductive Threaded Barrel Proximity Sensor, M12, 8 mm Detection, PNP NO, 10 → 30 V dc
Brand: OMRON
SKU: E2E-X8MB1TL12 2M
Availability: OutOfStock

Part Number : E2E-X8MB1TL12 2M

Proximity sensor, inductive, nickel-brass long body, M12, unshielded, 8 mm, DC, 3-wire, PNP NO, IO-Link COM3, 2 m prewired

Availability: Sold out

Detailed Description
Specifications
Features

The Omron inductive proximity sensor has nickel plated brass housing and 48 mm thread length. It has 8 mm sensing distance and NO operation mode. It has COM3 (230.4 kbps) IO-link. This non flush mounting type sensor takes only 10 seconds to replace a proximity sensor with the "e-jig" (mounting sleeve). A 2 meter cable for connection and the cable comes with enhanced oil resistance.

IP67/IP67G/IP69K degree of protection
IO-Link function
Short body
UL and CSA certification

Brand	Omron
Thread Size	M12
Sensor Technology	Inductive
Detection Range	8 mm
Body Style	Threaded Barrel
Digital Switching Output Type	PNP
Output Function	NO
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	10 → 30 V dc
Length	69.1mm
IP Rating	IP67, IP67G, IP69K
Mounting Type	Non-Flush
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Maximum Switching Frequency	800Hz
Shielding	Unshielded
Switching Current	200 mA
Maximum Operating Temperature	+70°C
Switching Frequency	800 Hz

Proximity sensor, inductive, nickel-brass long body, M12, unshielded, 8 mm, DC, 3-wire, PNP NO, IO-Link COM3, 2 m prewired
