Omron E2S-Q15 1M, Inductive Block Proximity Sensor, 1.6 mm Detection, PNP NO, 12 → 24 V dc

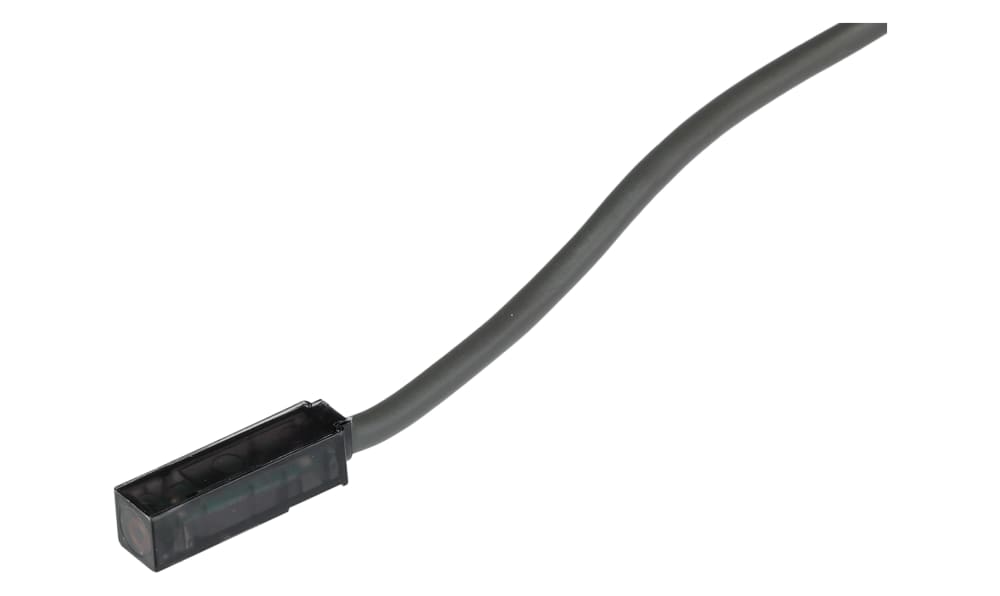

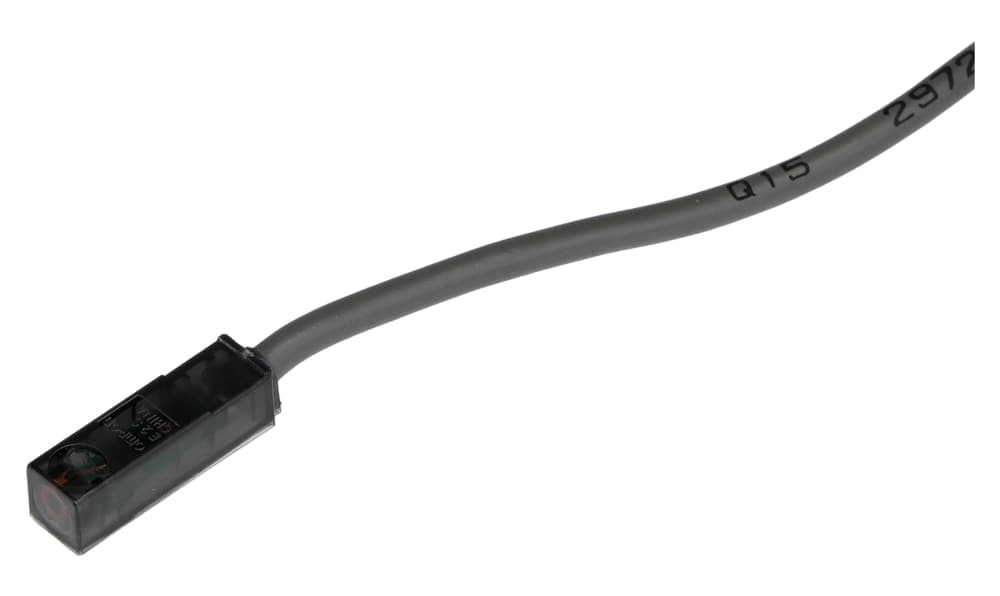

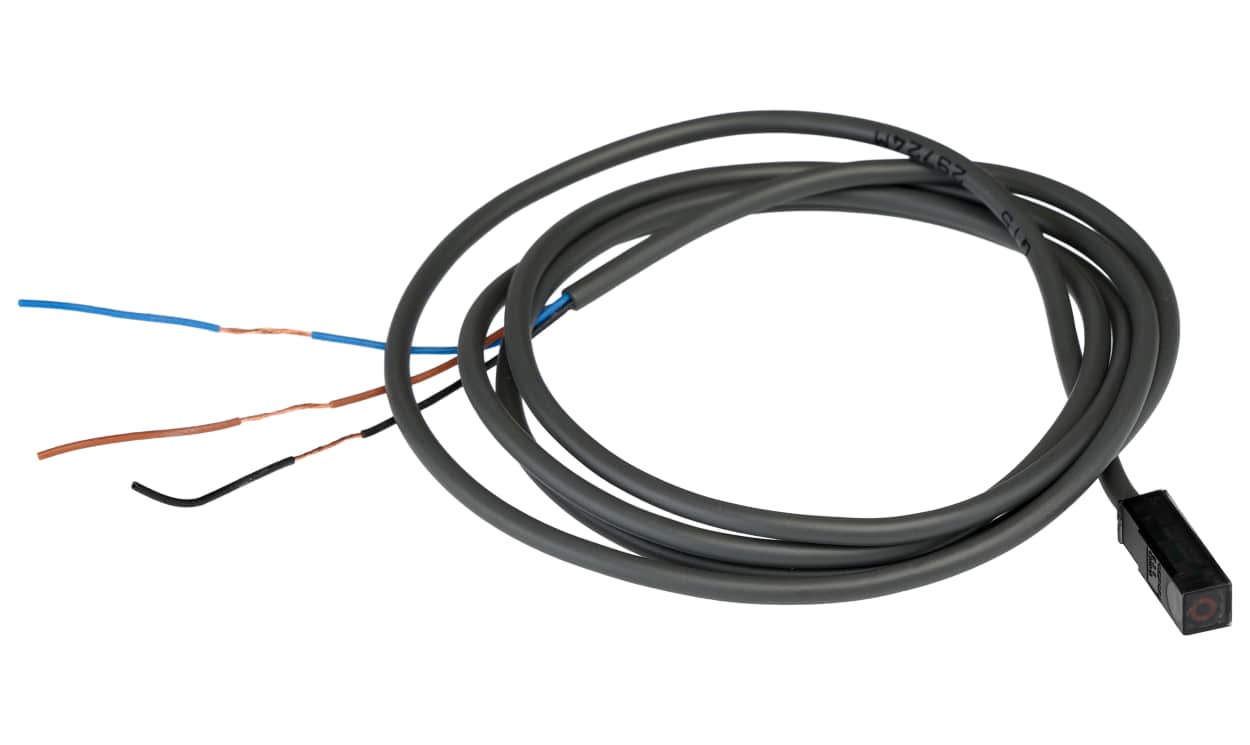

Name: Omron E2S-Q15 1M, Inductive Block Proximity Sensor, 1.6 mm Detection, PNP NO, 12 → 24 V dc
Brand: OMRON
SKU: E2S-Q15 1M
Availability: OutOfStock

Part Number : E2S-Q15 1M

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron E2S Series Proximity Sensor, 1.6mm Detection Range, 1m Cable Length - E2S-Q15 1M

This proximity sensor is a cutting-edge inductive model designed for precise detection in various applications. Housed in a robust block style, it measures 20mm in length and features a non-flush mounting type. With an impressive inductive sensor detection range of 1.6mm, it operates effectively within a supply voltage range of 12 to 24 V DC, making it suitable for a range of industrial settings.

Features & Benefits

• High detection range of 1.6mm enhances operational accuracy
• PNP output configuration for straightforward integration
• Compact block design fits easily into tight spaces
• Reverse polarity protection safeguards against incorrect connections

Applications

• Utilised in automation systems for object detection
• Ideal for position sensing in machinery
• Used in assembly lines for quality control
• Suitable for use in harsh manufacturing environments
• Integrated with robotic systems for precise movement tracking

What makes the sensor suitable for use in demanding external environments?

The IP67 rating ensures that it remains functional even when exposed to moisture and dust, making it ideal for use in outdoor or challenging industrial conditions.

How does the sensing technology contribute to efficiency in automation tasks?

Inductive sensing technology allows it to detect metallic objects quickly, facilitating faster response times during automated processes, which enhances overall productivity.

What are the benefits of using a PNP output configuration with this sensor?

A PNP output allows for easier compatibility with most control systems, simplifying integration into existing setups and reducing installation time.

How does the operating temperature range affect the sensor's application?

The wide operating temperature range of -25°C to +70°C makes this sensor versatile, allowing it to perform reliably in both cold and hot conditions typical of various industrial environments.

Brand	Omron
Sensor Technology	Inductive
Body Style	Block
Detection Range	1.6 mm
Digital Switching Output Type	PNP
Output Function	NO

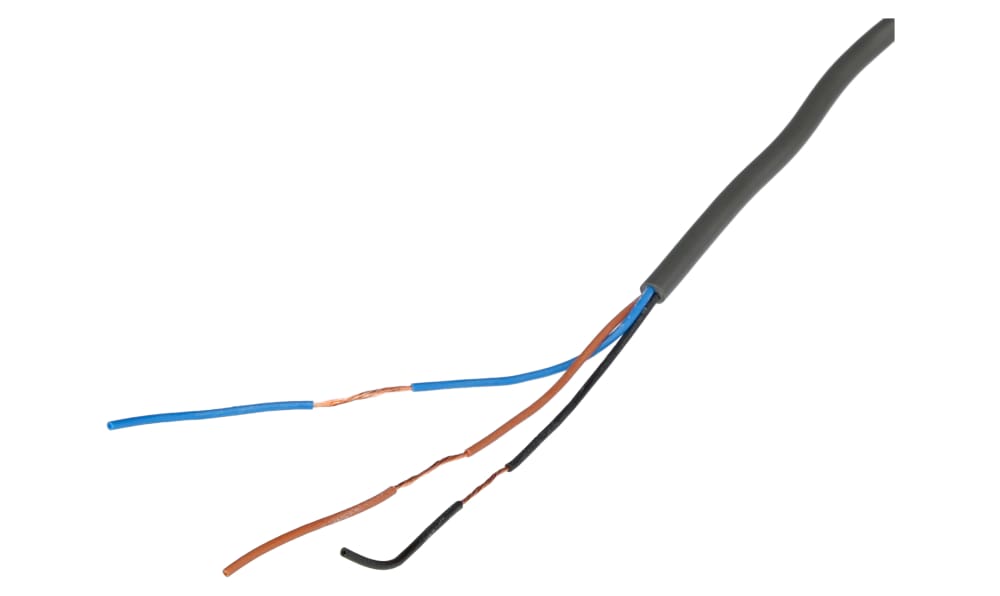

Connection Type	Pre-Cabled
Cable Length	1m
Supply Voltage	12 → 24 V dc
Length	25.1mm
IP Rating	IP67
Mounting Type	Flush
Maximum DC Voltage	24V
Minimum Operating Temperature	-25°C
Maximum Switching Frequency	1kHz
Shielding	Unshielded
Maximum Operating Temperature	+70°C
Depth	6.4mm
Switching Current	50 mA
Series	E2S

Omron E2S-Q15 1M, Inductive Block Proximity Sensor, 1.6 mm Detection, PNP NO, 12 → 24 V dc

DOWNLOAD CATALOG

E2S-Q15 1M Brochure - Inductive Proximity Sensors A700000014360144
