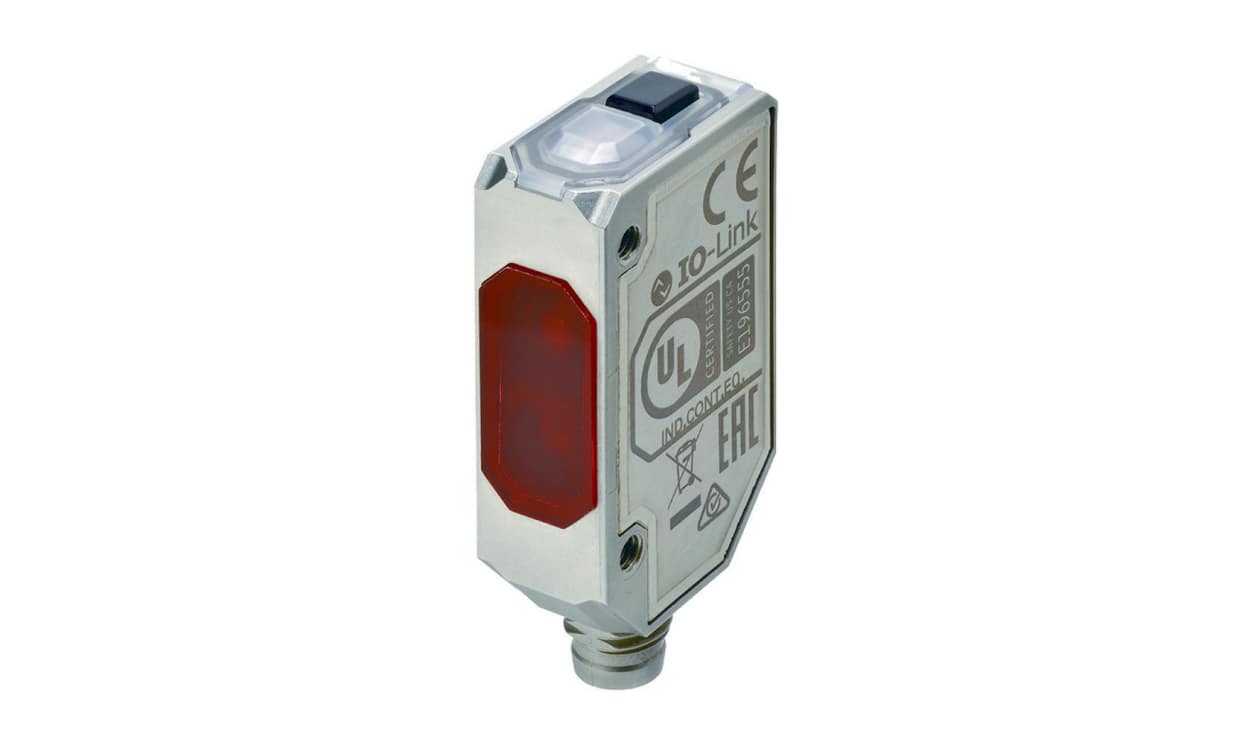

OMRON E3AS-L80MN M3 | Diffuse BGS Photoelectric Sensor | 10 mm to 80 mm, NPN, IO-Link
The OMRON E3AS-L80MN M3 is a compact diffuse background suppression photoelectric sensor with a detection range of 10 mm to 80 mm, an NPN output and a stainless steel SUS316L housing. The 10 mm to 80 mm model connects through an M8 connector and supports IO-Link communication. The 10 mm to 80 mm model is rated IP67, IP67G and IP69K and operates from -25 to +55 °C. The 10 mm to 80 mm model also lists an LED light source, a 1 ms response time, a 30V DC maximum voltage and 35 mA maximum current.
- 10 mm to 80 mm detection range
- Output: NPN
- M8 connector
- IO-Link communication
- Detailed Description
- Specifications
TOF-type sensors for used with any type of conveyed workpiece.
Compact-sized body can be mounted anywhere.
Teaching method allows anyone to set optimal threshold values.
Manufactured using OMRON's proprietary laser sealing method.
Antifouling coatings reduce the cleaning frequency on the sensing surface.
IO-Link reduces the time required for startups and changeovers.
Equipped with OMRON's proprietary light emitting element for stable detection of low-reflective workpieces.
| Brand | Omron |
| Series | E3AS-L |
| Detection Type | Diffuse with Background Suppression |
| Detection Range | 10 mm → 80 mm (0.394 to 3.15 in) |
| Sensor Style | Compact |
| Output Type | NPN |
| Electrical Connection | M8 Connector |
| Light Source | LED |
| Response Time | 1 ms |
| Maximum DC Voltage | 30V |
| IP Rating | IP67, IP67G, IP69K |
| Maximum Current | 35 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | Stainless Steel SUS316L |
| Maximum Operating Temperature | +55 °C (131 °F) |
| Communication Protocol | IO-LINK |
| Terminal Type | M8 Connector |
| Interface | IO-Link |
