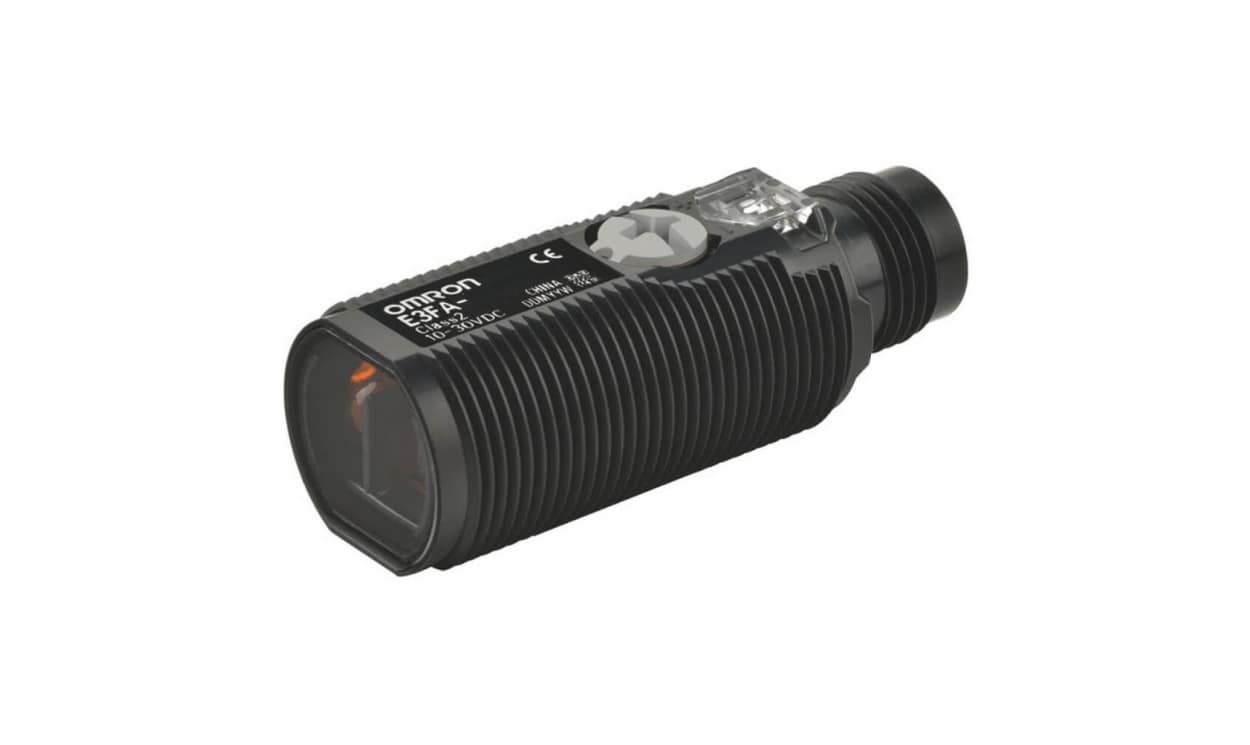

Omron E3FA-DP25, Diffuse Photoelectric Sensor, Barrel Sensor, 300 mm Detection Range

Name: Omron E3FA-DP25, Diffuse Photoelectric Sensor, Barrel Sensor, 300 mm Detection Range
Brand: OMRON
SKU: E3FA-DP25
Availability: OutOfStock

Part Number : E3FA-DP25

Photoelectric sensor, M18 axial, plastic body, IR LED, diffuse reflective, 300mm, PNP, L-ON/D-ON selectable, M12 connector

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

Omron E3FA Series Photoelectric Sensor, 300mm Detection Range, PNP Output - E3FA-DP25

This photoelectric sensor is designed for accurate object detection in industrial automation applications. It uses infrared technology to identify the presence of objects within a detection range of 300mm. The sensor's robust construction makes it suitable for harsh environments, ensuring dependable performance, which is essential in various electrical and mechanical systems.

Features & Benefits

• Compact barrel style design suits diverse installation spaces
• Infrared light source enhances detection accuracy
• PNP output allows for easy integration with control systems
• IP67/IP69K rating provides protection against dust and moisture
• Quick response time of 0.5ms increases system efficiency

Applications

• Used in automated assembly lines for object detection
• Ideal for packaging machines to ensure proper positioning
• Suitable for conveyor systems to monitor product flow
• Employed in quality control processes to identify defects

What type of connection is required for installation?

The sensor employs an M12 connector for seamless integration.

Can it function effectively in extreme temperatures?

Yes, it operates efficiently in a range from -25 to +55°C.

How does this sensor improve workflow efficiency?

A quick response time of 0.5ms allows for faster operations.

What is the maximum load it can handle?

The maximum current capacity is 100mA, ensuring robust performance.

Brand	Omron
Sensor Style	Barrel
Detection Type	Diffuse
Detection Range	300 mm
Output Type	PNP
Electrical Connection	M12 Connector
Switching Mode	Light / Dark switching
Maximum DC Voltage	30V
Light Source	Infrared
IP Rating	IP67/IP69K
Maximum Current	100 mA
Response Time	0.5 ms
Series	E3FA
Housing Material	ABS
Maximum Operating Temperature	+55°C
Minimum Operating Temperature	-25°C
Thread Size	M18
Standards Met	CE

Photoelectric sensor, M18 axial, plastic body, IR LED, diffuse reflective, 300mm, PNP, L-ON/D-ON selectable, M12 connector

Omron E3FA-DP25, Diffuse Photoelectric Sensor, Barrel Sensor, 300 mm Detection Range

DOWNLOAD CATALOG

E3FA-DP25 Brochure - E3FA Photoelectric Sensors A700000012229013
