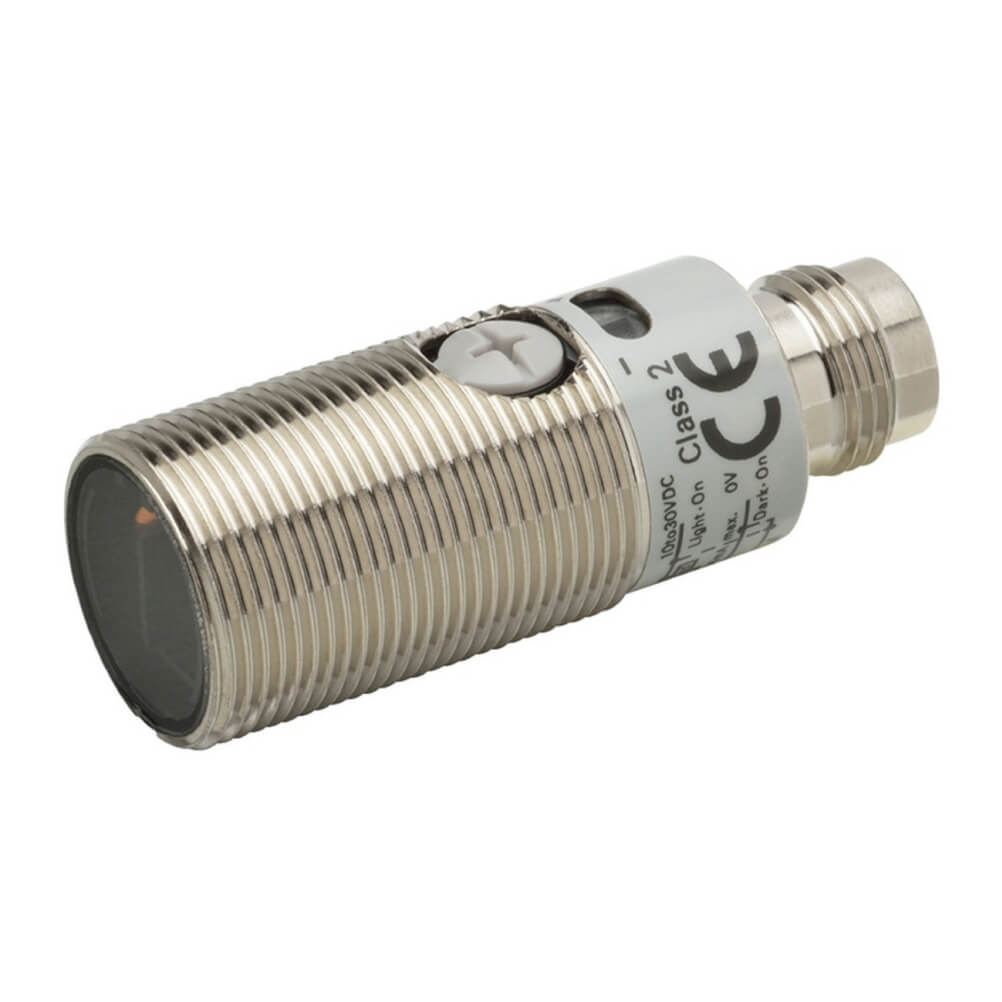

Omron E3FB-DN21, Diffuse Photoelectric Sensor, Barrel Sensor, 100 mm Detection Range

Name: Omron E3FB-DN21, Diffuse Photoelectric Sensor, Barrel Sensor, 100 mm Detection Range
Brand: OMRON
SKU: E3FB-DN21
Availability: OutOfStock

Part Number : E3FB-DN21

Photoelectric sensor, M18 axial, metal body, red LED, diffuse, 100mm, NPN, L-ON/D-ON selectable, M12 connector

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

E3FB Compact Photoelectric Sensors

The E3FB range of compact photoelectric sensors from Omron are simple and quick to mount and easy to set up due to the large adjuster and high power LED indicator making alignment easier. The status LED indicators of these photoelectric sensors can also be seen easily, from long distances and wide angles. The E3FB series sensors are typically installed in industrial plants such as food and beverage, textiles, food and logistics and are also designed especially for non stop detection for areas where machines never stop.

Cylindrical straight type
Compact design
Metal housing
Visible LED light for easy alignment
LED indication
Light-ON/Dark-ON selectable by wiring
Reversed power supply polarity protection, output short circuit protection and reversed output polarity protection

E3F2 Series Barrel

Output can be configured by wiring either ’light ON’ or ’dark ON’
Built in amplifier
Short circuit and reverse polarity protection
M18 DIN size cylindrical housing

Brand	Omron
Sensor Style	Barrel
Detection Type	Diffuse
Detection Range	100 mm
Output Type	NPN
Electrical Connection	M12 4 Pin Connector
Maximum DC Voltage	30V
Light Source	LED
IP Rating	IP67, IP69K
Maximum Current	25 mA
Response Time	500 μs
Maximum Operating Temperature	+55°C
Minimum Operating Temperature	-25°C
Housing Material	Nickel Plated Brass
Series	E3F

Photoelectric sensor, M18 axial, metal body, red LED, diffuse, 100mm, NPN, L-ON/D-ON selectable, M12 connector
