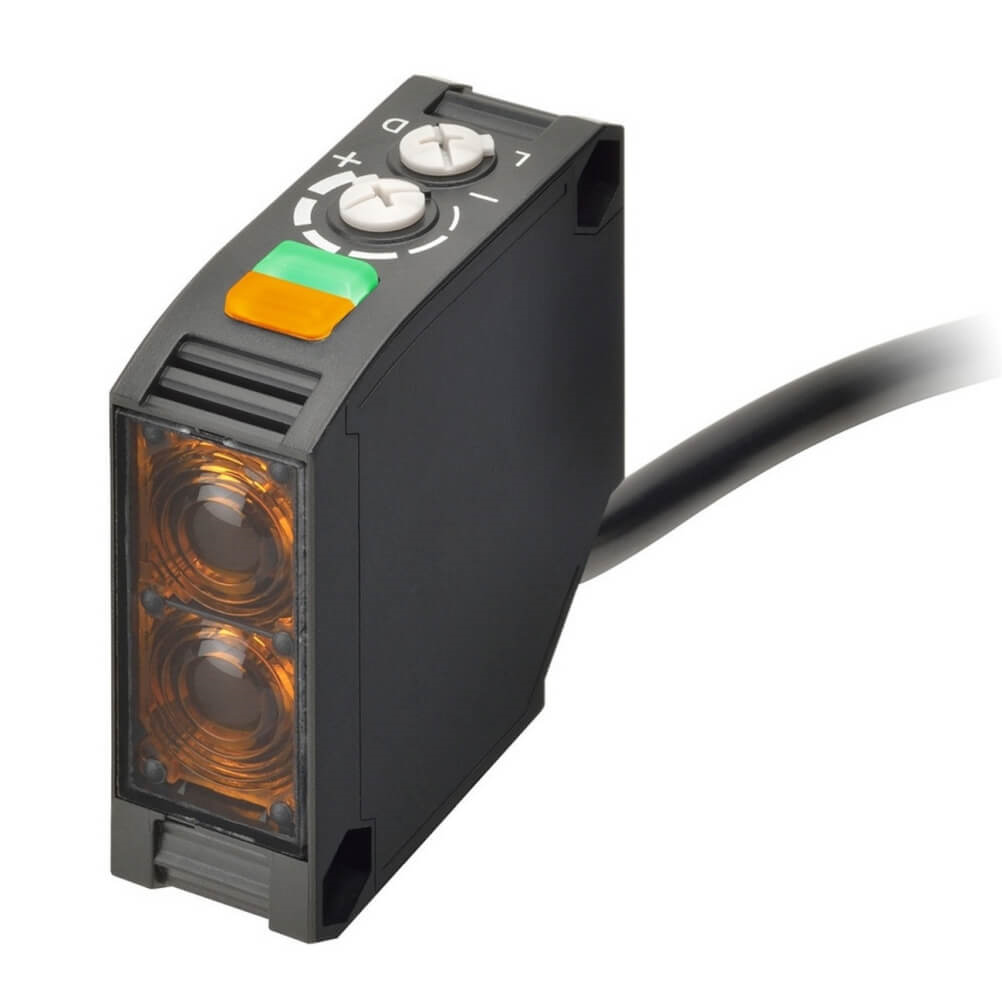

OMRON E3JK-DP13 2M | Diffuse Photoelectric Sensor | 2.5 m, PNP, 2 m Cable
The OMRON E3JK-DP13 is an E3JK diffuse-reflective photoelectric sensor with a 2.5 m sensing distance on white paper and a PNP open-collector output. It uses a red LED, switches in 1 ms max. and has a 2 m pre-wired cable. The one-turn sensitivity adjuster and Light-ON/Dark-ON selection make it a flexible general-purpose sensor for conveyor and packaging lines.
Key features
- Diffuse-reflective detection, 2.5 m on white paper (300 x 300 mm)
- Red LED light source (624 nm)
- PNP open-collector output, 100 mA max. load, 30 VDC max.
- Supply 10 to 30 VDC, 30 mA max.
- One-turn sensitivity adjuster, Light-ON/Dark-ON selectable
- IP64, ABS case, 2 m pre-wired cable
- Specifications
- Features
- Downloads
| Part Number | E3JK-DP13 2M |
| Brand | OMRON |
| Series | E3JK |
| Output Type | PNP open collector |
| Light Source | Red LED (624 nm) |
| Response Time | 1 ms max. |
| Sensing Distance | 2.5 m (white paper 300 x 300 mm) |
| Connection | Pre-wired cable, 2 m |
| Sensor Type | Diffuse-reflective photoelectric sensor |
| Current Consumption | 30 mA max. |
| Power Supply | 10 to 30 VDC, ripple 10% p-p |
| Control Output | 100 mA max., 30 VDC max., 3 V max. residual |
| Differential Travel | 20% max. of sensing distance |
| Protection | IP64 (IEC 60529) |
| Case Material | ABS |
| Operating Temperature | -25 to 55 C (no icing or condensation) |
Photoelectric sensor, square body, IR LED , diffuse, 2.5m, PNP, L-ON/D-ON selectable, 2m cable
