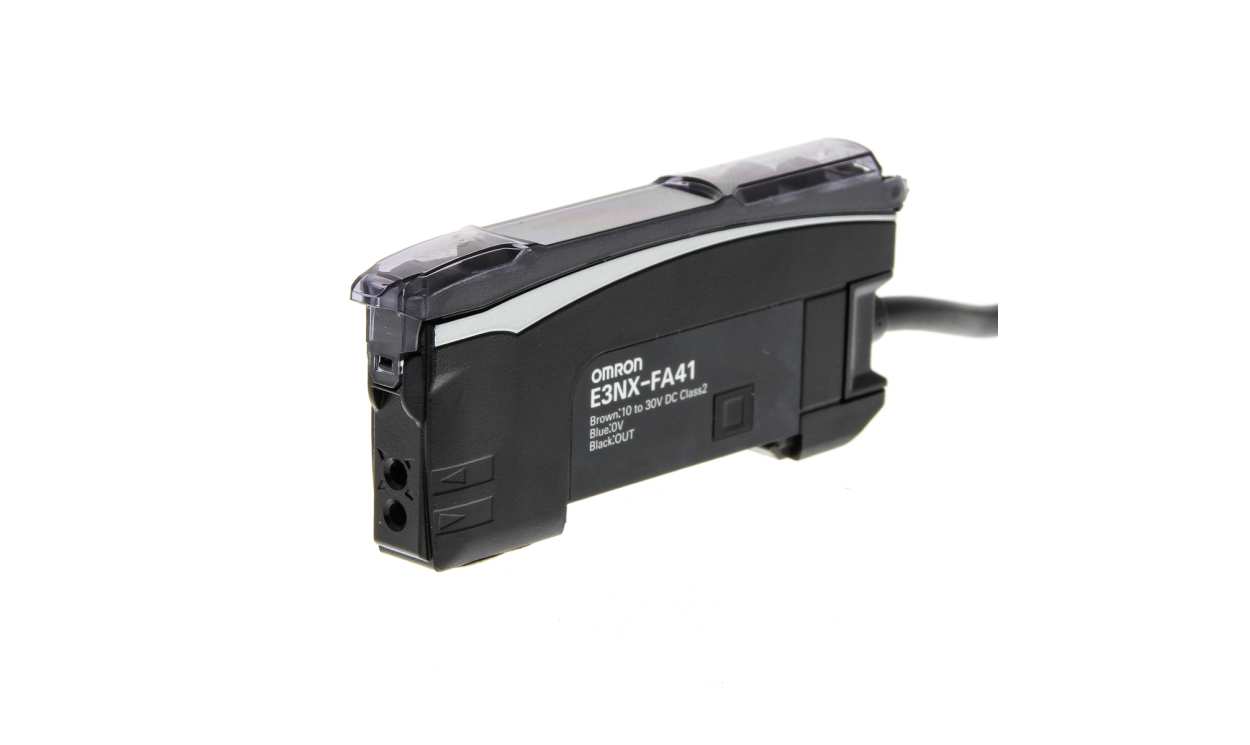

OMRON E3NX-FA41AN 2M | Fibre Amplifier | PNP, IP54, 960 mW
Rated IP54, the OMRON E3NX-FA41AN 2M fibre amplifier provides a PNP output on a pre-wired cable. It draws 960 mW and fits on a DIN rail. Refer to the OMRON datasheet for E3NX-FA41AN 2M before installation for complete technical data.
- PNP output
- Response times 32 µs, 250 µs, 1 ms, 16 ms
- 30 V DC supply (as listed)
- 104.5 x 10 x 33.5 mm, polycarbonate
- Operating temperature -25 to +55 °C
- CE certified
- Detailed Description
- Specifications
- Downloads
Ultra-easy setup with Smart Tuning with a light intensity adjustment range expanded 20 times to 40,000:1. Optimum stable detection achieved with light intensity adjustment even for saturated incident light.
White on black display characters for high visibility.
Solution Viewer that shows the passing time and difference in incident levels and Change Finder that allows you to see display values even for fast workpieces.
Compared to the E3X-HD.
| Brand | Omron |
| IP Rating | IP54 |
| Terminal Type | Pre-Wired |
| Response Time | 1 ms, 16 ms, 32 μs, 250 μs |
| Supply Voltage | 30 V dc |
| Output Type | PNP |
| Light Source | LED |
| Housing Material | Polycarbonate |
| Length | 104.5 mm (4.11 in) |
| Maximum Operating Temperature | +55 °C (131 °F) |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Dimensions | 104.5 x 10 x 33.5 mm (4.11×0.394×1.32 in) |
| Power Consumption | 960 mW |
| Width | 10 mm (0.394 in) |
| Depth | 33.5 mm (1.32 in) |
| Mounting Type | DIN Rail |
| Standards Met | CE Certified |
