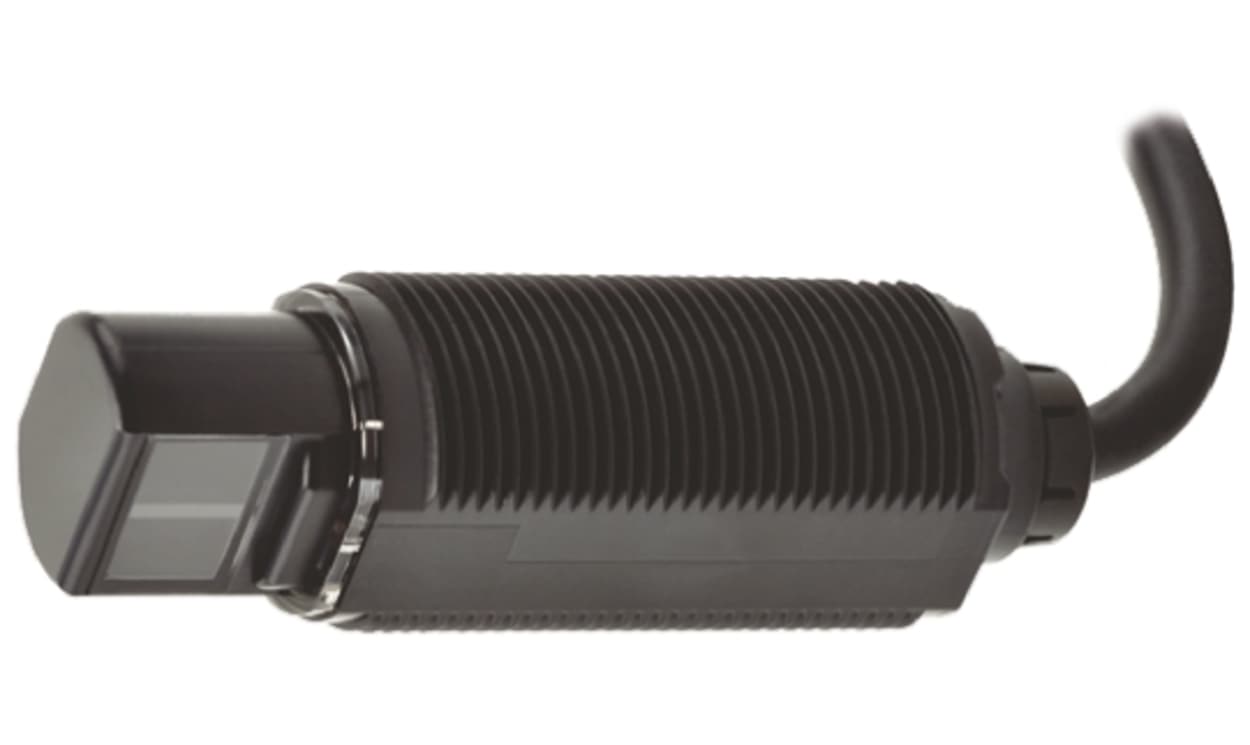

OMRON E3RA-DP13 2M | Diffuse Photoelectric Sensor | 700 mm, PNP, Pre-Wired Cable
Rated for a 700 mm detection range, OMRON's E3RA-DP13 2M is a barrel-style diffuse photoelectric sensor that provides PNP output. It connects via a pre-wired cable and it is housed in ABS. Series designation for the E3RA-DP13 2M is E3RA.
- LED light source
- Rated up to 30 V DC
- Maximum current: 25 mA
- 500 μs response time
- IP67 and IP69K ingress protection
- Works from -25°C to +55°C
- Detailed Description
- Specifications
- Downloads
E3RA Compact Radial Photoelectric Sensors
Compact design
Plastic housing
Visible LED light for easy alignment
LED indication
Light-ON/Dark-ON selectable by wiring
Reversed power supply polarity protection, output short circuit protection and reversed output polarity protection
Built in amplifier
Short circuit and reverse polarity protection
M18 DIN size cylindrical housing
| Brand | Omron |
| Series | E3RA |
| Detection Type | Diffuse |
| Detection Range | 700 mm (27.6 in) |
| Sensor Style | Barrel |
| Output Type | PNP |
| Electrical Connection | Pre-Wired Cable |
| Light Source | LED |
| Response Time | 500 μs |
| Maximum DC Voltage | 30V |
| IP Rating | IP67, IP69K |
| Maximum Current | 25 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | ABS |
| Maximum Operating Temperature | +55 °C (131 °F) |
