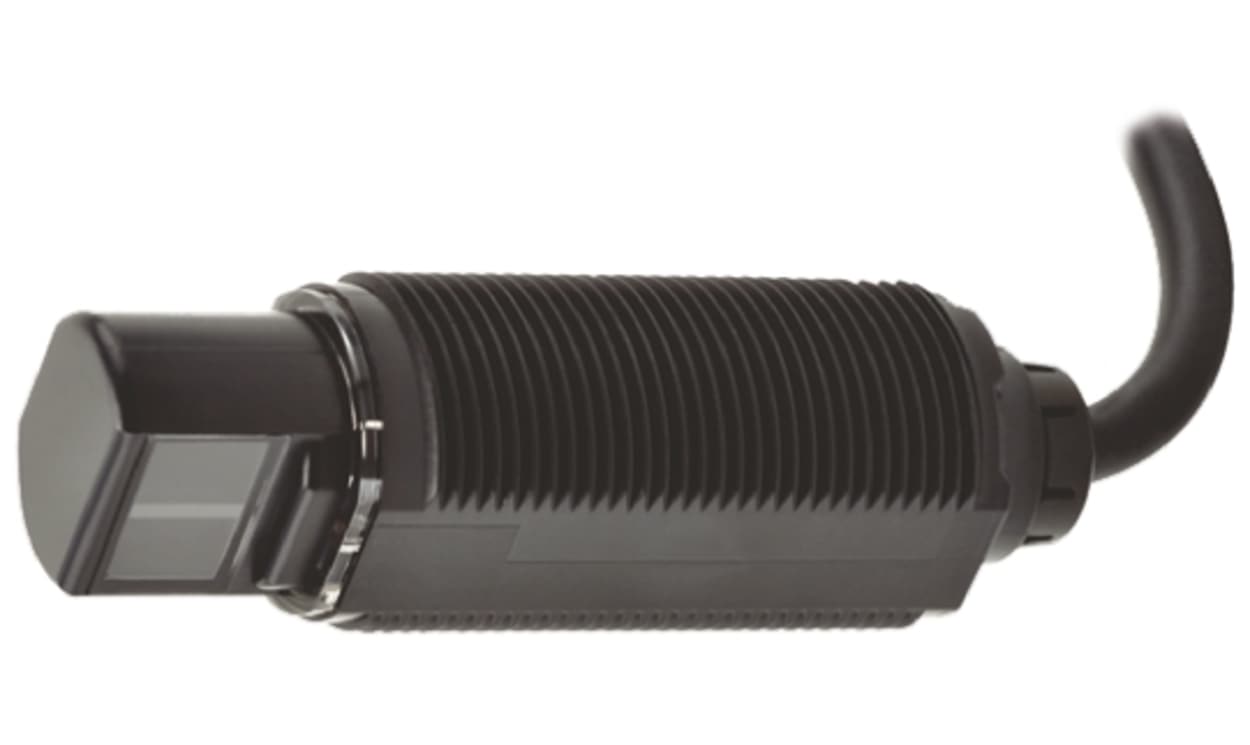

OMRON E3RA-RP11 2M | Retroreflective Photoelectric Sensor | 100 mm to 3 m, PNP, Pre-Wired Cable
With a 100 mm to 3 m detection range, the OMRON E3RA-RP11 2M is a barrel-style retroreflective photoelectric sensor offering PNP output. It is supplied with a pre-wired cable and the housing is ABS. OMRON lists the E3RA-RP11 2M in its E3RA series.
- LED light source
- Rated up to 30 V DC
- Maximum current: 25 mA
- 500 μs response time
- IP67 and IP69K ingress protection
- Works from -25°C to +55°C
- Detailed Description
- Specifications
- Downloads
E3RA Compact Radial Photoelectric Sensors
Compact design
Plastic housing
Visible LED light for easy alignment
LED indication
Light-ON/Dark-ON selectable by wiring
Reversed power supply polarity protection, output short circuit protection and reversed output polarity protection
Built in amplifier
Short circuit and reverse polarity protection
M18 DIN size cylindrical housing
| Brand | Omron |
| Series | E3RA |
| Detection Type | Retroreflective |
| Detection Range | 100 mm → 3 m |
| Sensor Style | Barrel |
| Output Type | PNP |
| Electrical Connection | Pre-Wired Cable |
| Light Source | LED |
| Response Time | 500 μs |
| Maximum DC Voltage | 30V |
| IP Rating | IP67, IP69K |
| Maximum Current | 25 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | ABS |
| Maximum Operating Temperature | +55 °C (131 °F) |
