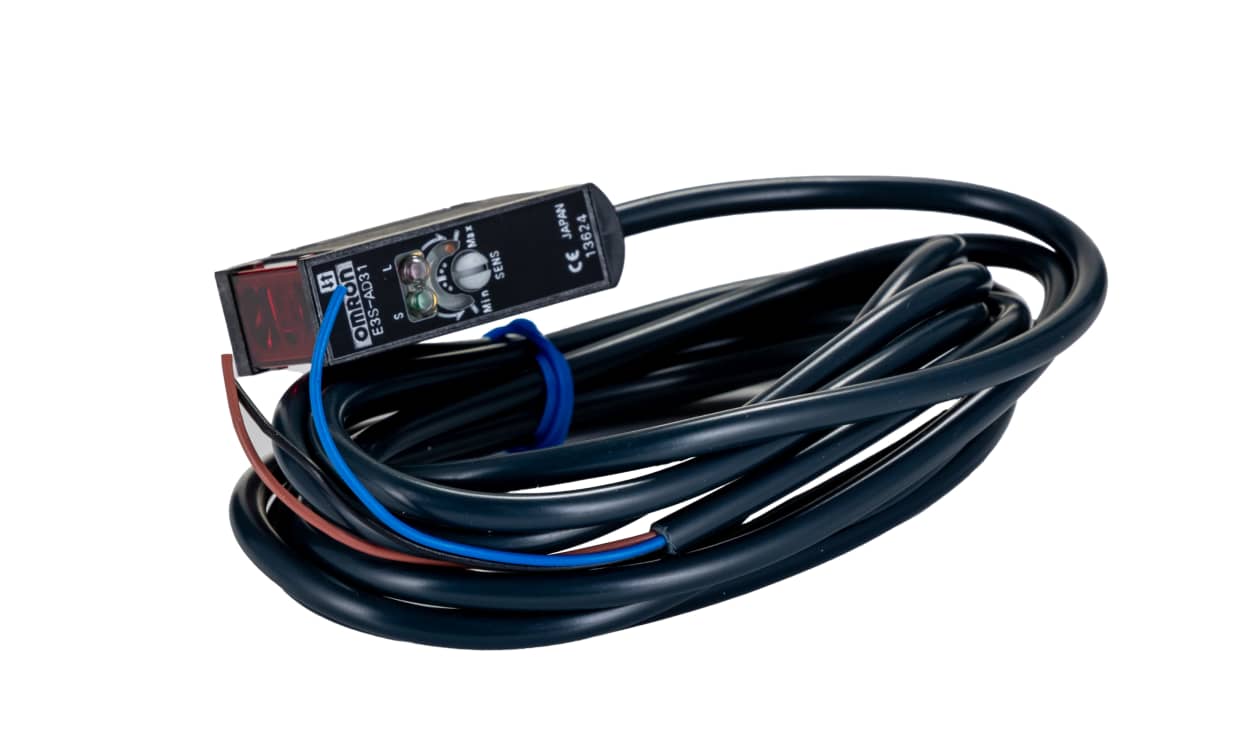

OMRON E3S AD31 | Diffuse Photoelectric Sensor | 200 mm, PNP, 2 m 4-Wire Cable
With a 200 mm detection range, the OMRON E3S AD31 is a block-style diffuse photoelectric sensor offering PNP output. It is supplied with a 2 m 4-wire cable and it is housed in PBT. OMRON lists the E3S AD31 in its E3S series.
- LED light source
- Rated up to 30 V DC
- Maximum current: 100 mA
- 500 μs response time
- IP67 ingress protection
- Works from -25°C to +55°C
- Detailed Description
- Specifications
- Downloads
Omron E3S Series Photoelectric Sensor, Diffuse Detection, 200mm Range - E3S AD31
Features & Benefits
• LED light source enhances visibility and detection accuracy
• PNP output ensures compatibility with various control systems
• Fast response time of 500μs improves operational efficiency
• Wide temperature range enables reliable performance in diverse conditions
• Convenient mounting bracket simplifies installation and adjustments
Applications
• Applied in packaging machinery for increased efficiency
• Suitable for assembly lines requiring precise positioning
• Employed in robotic systems for reliable feedback
How does the IP67 rating benefit operational reliability in challenging environments?
What advantages does the PNP output provide in integration with other systems?
Can the response time impact system performance in high-speed applications?
| Brand | Omron |
| Series | E3S |
| Detection Type | Diffuse |
| Detection Range | 200 mm (7.87 in) |
| Sensor Style | Block |
| Output Type | PNP |
| Electrical Connection | 4 Wire Cable 2 m |
| Light Source | LED |
| Response Time | 500 μs |
| Maximum DC Voltage | 30V |
| IP Rating | IP67 |
| Maximum Current | 100 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | PBT |
| Maximum Operating Temperature | +55 °C (131 °F) |
| Standards Met | CE Certified |
| Mounting Type | Mounting bracket |
